Description
ALTRONIX AL800LGK9E Overview

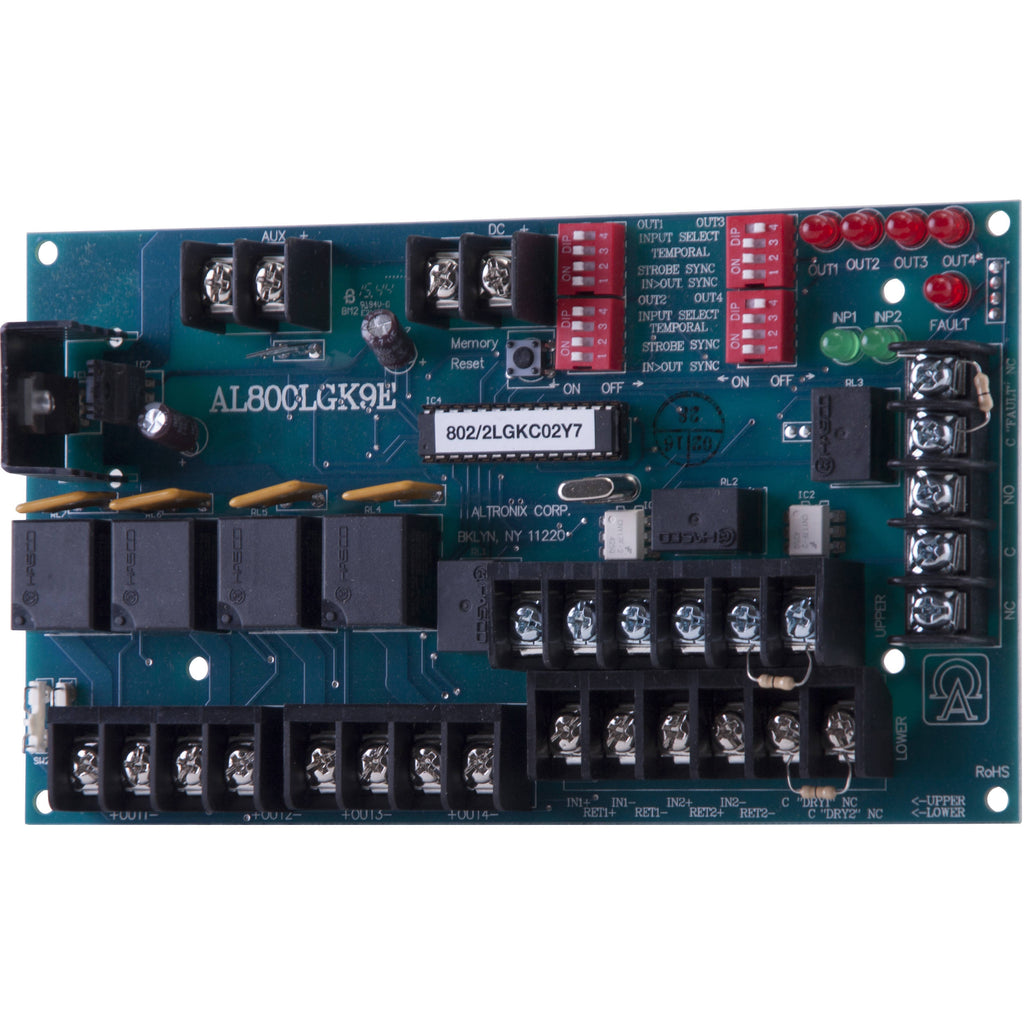

The AL800LGK9E Logic Board terminal connects to the 24VDC FACP notification appliance circuit outputs. (Class A, Style Z or Class B, Style W, X, Y) Input trigger voltage is 8-33VDC @ 5mA min. Terminal polarity is shown in alarm condition. During an alarm condition these inputs will cause the selected outputs chosen to drive notification appliances. The designated outputs are set by output switches [OUT1 through OUT4] (Output Programming Selection Table, pg. 4). A trouble condition on an output loop will cause the corresponding input to trip the FACP by opening the FACP loop. An alarm condition will always override trouble to drive notification appliances.
UPC: 782239947768
In the Box
- ALTRONIX Logic Board
ALTRONIX AL800LGK9E Specs
Packaging Info
| Package Weight | 0.685 lb |
| Box Dimensions (LxWxH) | 7.9 x 5.1 x 2.1" |
