Description

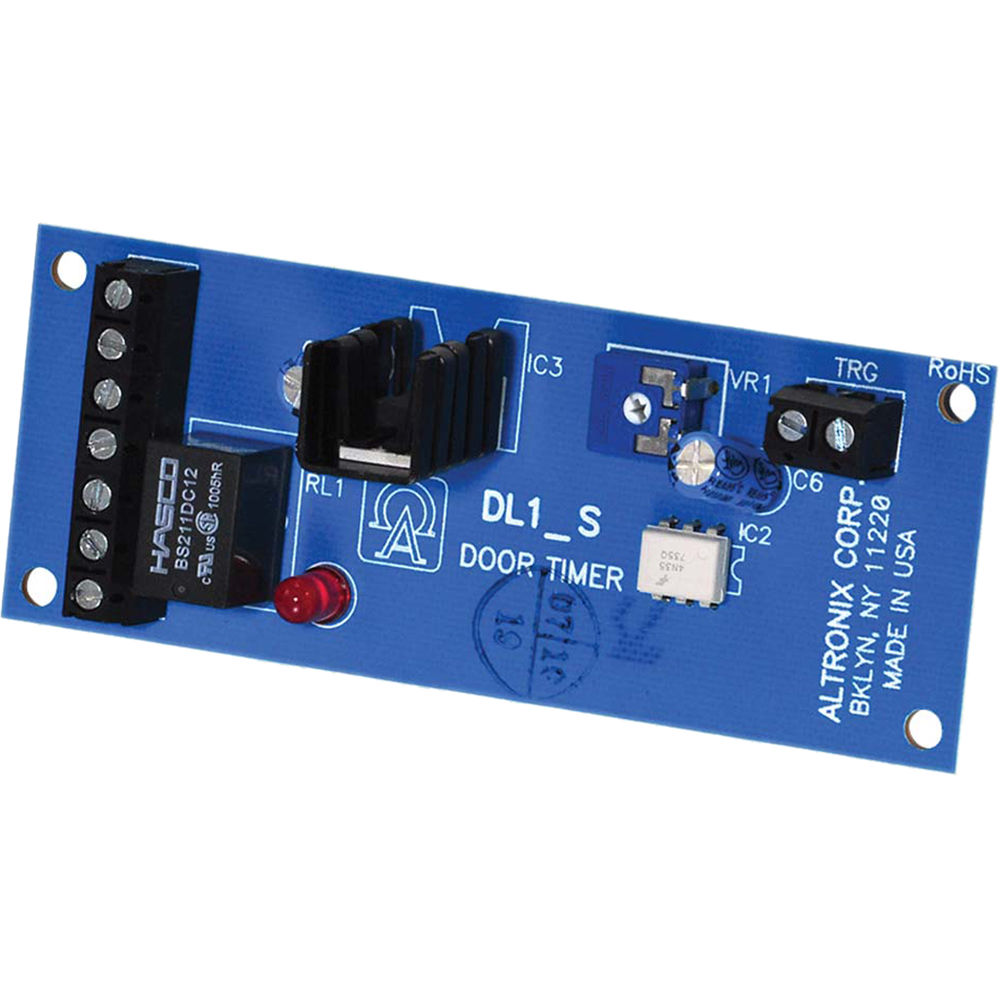

ALTRONIX DL1 Overview
The Altronix DL1 is a one second to one minute door control timer that is used for basic door operation. This timer can be activated with a momentary or maintained trigger.
UPC: 782239930227
ALTRONIX DL1 Specs
| Input Voltage | 12 or 24 VAC/VDC |
| Relay | Contact Rating: 120 VAC or 28 VDC at 2 A Contacts Dry Relay Output 12 VDC Regulated Beeper Output |
| Timer | Isolated AC or DC voltage 5 to 24 V Trigger 1 Second to 1 Minute Time Range Adjustment Momentary or Maintained Trigger |
| LED Indicators | Red |
| Operating Temperature | -4 to 120°F / -20 to 49°C |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Relative Humidity | 85% (±5%) |
| Dimensions (L x W x H) | 4 x 1.5 x 0.75" / 101.6 x 38.1 x 19.05 mm |
| Weight | 0.1 lb / 0.05 kg |
Packaging Info
| Package Weight | 0.115 lb |
| Box Dimensions (LxWxH) | 4.6 x 3.7 x 1.8" |
