Description

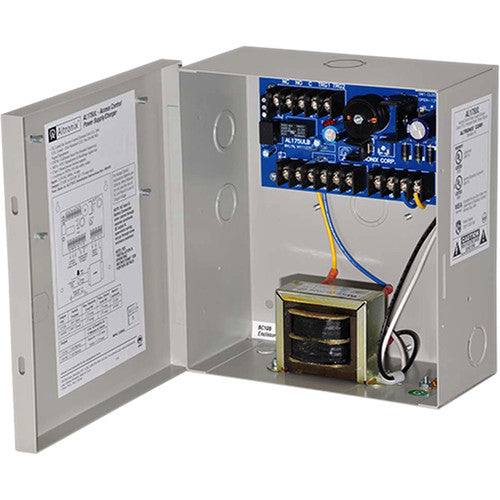

ALTRONIX AL175UL Overview
AL175UL is a power limited power supply/chargers that will convert 115VAC / 60Hz input, into two individually PTC protected 12VDC or 24VDC output, (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels. It must be installed in accordance with National and Local Electrical Codes and Regulations.
UPC: 782239930234
In the Box
- ALTRONIX AL175UL 115VAC Power Supply/Charger for Access Control
- Limited Lifetime Manufacturer Warranty
ALTRONIX AL175UL Specs
Electrical
| AC Input Power | 110 VAC, 60 Hz at 600 mA |
| Output Voltage | 24 VDC |
Environmental
| Certifications | RoHS *as per Manufacturer |
| Operating Humidity | 85% |
| Operating Temperature | 32 to 120°F / 0 to 48°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
General
| Number of Connections | 2 |
| Dimensions | 8.5 x 7.5 x 3.5" / 215.9 x 190.5 x 88.9 mm |
Packaging Info
| Package Weight | 6.125 lb |
| Box Dimensions (LxWxH) | 9.4 x 8.3 x 4.8" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
