- For CCTV Cameras and Accessories
- 16 Fuse-Protected Outputs
- Provides 24 or 28 VAC Power
- 3.5A Total Supply Current
- Surge Suppression
- LED Indicators
- Spare Fuses Included
Power up to 16 CCTV cameras and accessories with the 16-Output Power Supply from ALTRONIX . This power supply provides 24 or 28 VAC power distributed over 16 fused-protected outputs with a total output supply current of 3.5A with surge suppression. Spare fuses are included with this power supply.
- Provides 24 or 28 VAC power to up to 16 CCTV cameras and accessories
- 16 fuse-protected outputs
- Maximum supply current of 3.5A
- Surge suppression
- AC power LED indicator
- Power on/off switch
In the Box

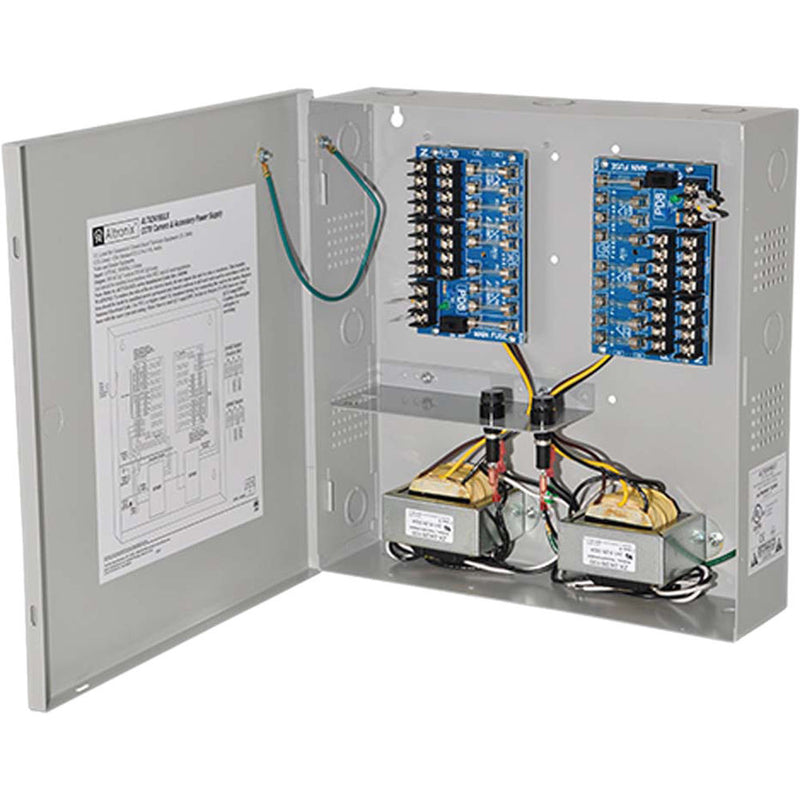

ALTRONIX 16-Output Power Supply (24 VAC @ 7A / 28 VAC @ 6A)
- Spare Fuses
- Limited Lifetime Warranty
| Input |
| Power | 115 VAC, 50/60 Hz, 1.8 A |
| Output |
| Power | 24 or 28 VAC |
| Quantity | 16 x outputs (fuse-protected) |
| Supply Current | 24 VAC @ 7 A (170 VA) supply current (0.438 A per device, 3.5 A maximum) or 28 VAC @ 6 A (170 VA) supply current (0.375 A per device, 3.5 A maximum) |
| Output Rating | 3.5 A |
| Functions | Surge suppression |
| Electrical |
| Operating Temperature | 32 to 120�F (0 to 49�C) |
| BTU/h | 85.99 |
| Requirements | System AC Input: 207 VA |
| Fuse Rating | Secondary: 5 A, 250 V |
| General |
| Indicators | AC power LED indicator |
| Mounting | Wall-mountable, 1/2 and 3/4" (12.7 and 19 mm) knockouts |
| Dimensions | 13.5 x 13 x 3.25" (343 x 330 x 83 mm) |
| Weight | 12.6 lb (5.7 kg) |
