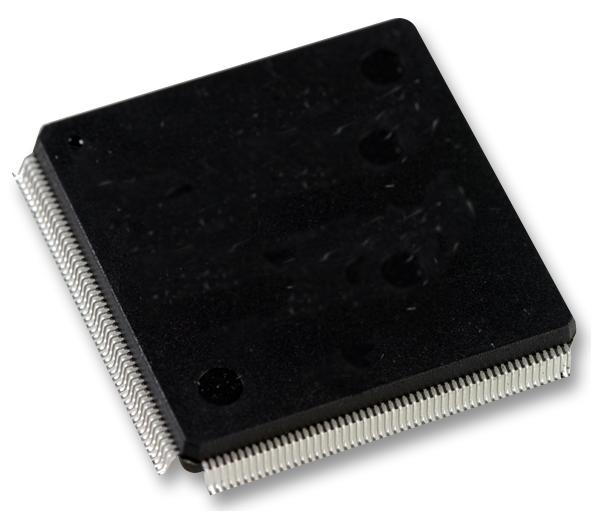

Altera EP2C8Q208I8N EP2C8Q208I8N Fpga Cyclone II PLL 138 I/O's 320 MHz 1.15 V to 1.25 QFP-208

The EP2C8Q208I8N is a Cyclone® II FPGA with an extend density of 8256 logic elements (LEs) and provide up to 182 usable I/O pins and up to 1.1Mb of embedded memory. Cyclone II FPGA is manufactured on 300mm wafers using TSMC's 90nm low-k dielectric process to ensure rapid availability and low cost. By minimizing silicon area, Cyclone II devices can support complex digital systems on a single chip at a cost that rivals that of ASICs. Unlike other FPGA vendors who compromise power consumption and performance for low-cost, Altera's latest generation of low-cost FPGAs-Cyclone II FPGA, offers 60 percent higher performance and half the power consumption of competing 90nm FPGA. It contains a two-dimensional row- and column-based architecture to implement custom logic. Column and row interconnects of varying speeds provide signal interconnects between logic array blocks (LABs), embedded memory blocks and embedded multipliers.

• Embedded multipliers
• Advanced I/O support
• Flexible clock management circuitry
• Altera megafunction and Altera MegaCore function support
• Altera Megafunctions Partners Program (AMPPSM) megafunction support
• Programmable bus-hold feature
• Programmable output drive strength feature
• Programmable delays from the pin to the IOE or logic array
• Tri-state with weak pull-up on I/O pins before and during configuration
• Programmable open-drain outputs
• Series on-chip termination support

Applications

Automotive, Communications & Networking, Consumer Electronics, Test & Measurement, Imaging, Video & Vision

Other details

Brand	ALTERA
Part Number	EP2C8Q208I8N
Quantity	Each
Technical Data Sheet EN
