Description

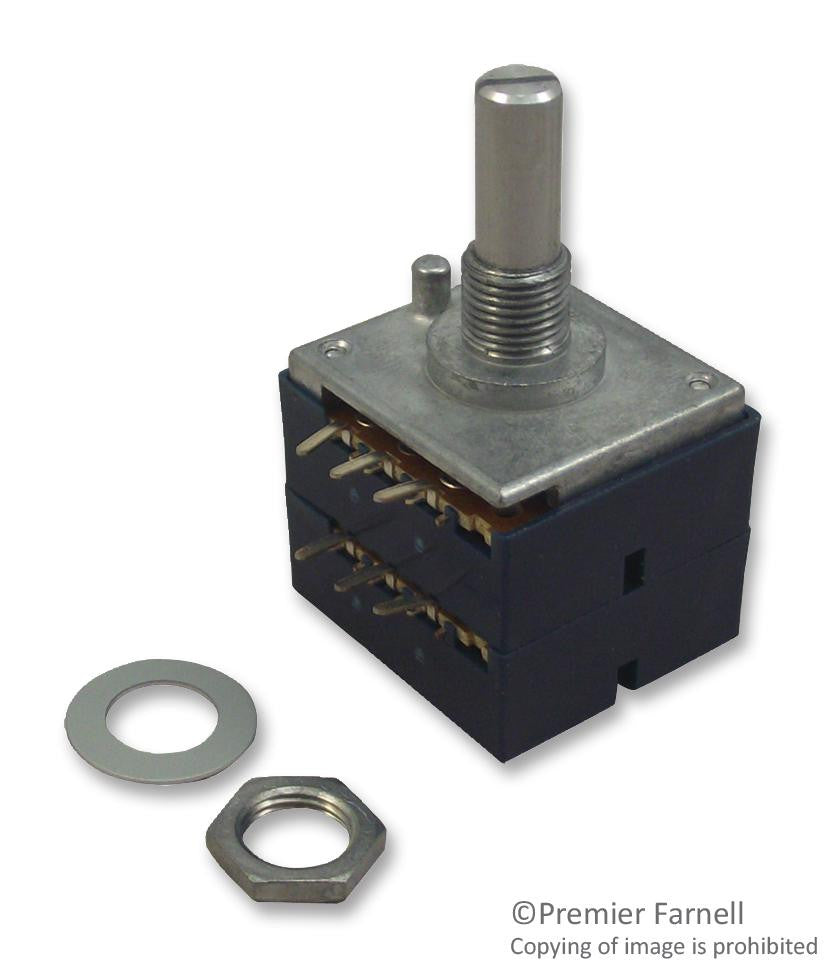

The RK271 series from Alps are 27mm size rotary potentiometers. These potentiometers are available in metal shaft and screw clamp bushing combination.
- Single/dual/quad unit resistor element
- Flat and slotted type shafts available
- Length of the shaft varies from 15mm to 30mm
- With or without center detent option available
- Total resistance of 5Kohm, 10Kohm, 20Kohm, 50Kohm, 100Kohm and 250Kohm
- Total resistance tolerance of ±20%
- Horizontal type mounting
- Operating temperature range -10°C to 70°C
- Total rotational angle of 300°and 15A, 3B resistance taper available
- Operating life of 15,000 cycles and maximum power rating up to 0.05W
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Shaft Length | 25mm |
| Shaft Diameter | 6mm |
| No. of Gangs | 2 |
| Adjustment Type | Screwdriver Slot |
| Resistance Tolerance | ± 20% |
| Product Range | RK27 Series |
| Track Taper | Logarithmic |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Panel |
| Power Rating | 50mW |
| Track Resistance | 50kohm |
Other details
| Brand | ALPS |
| Part Number | RK27112B0A0B |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
