Description

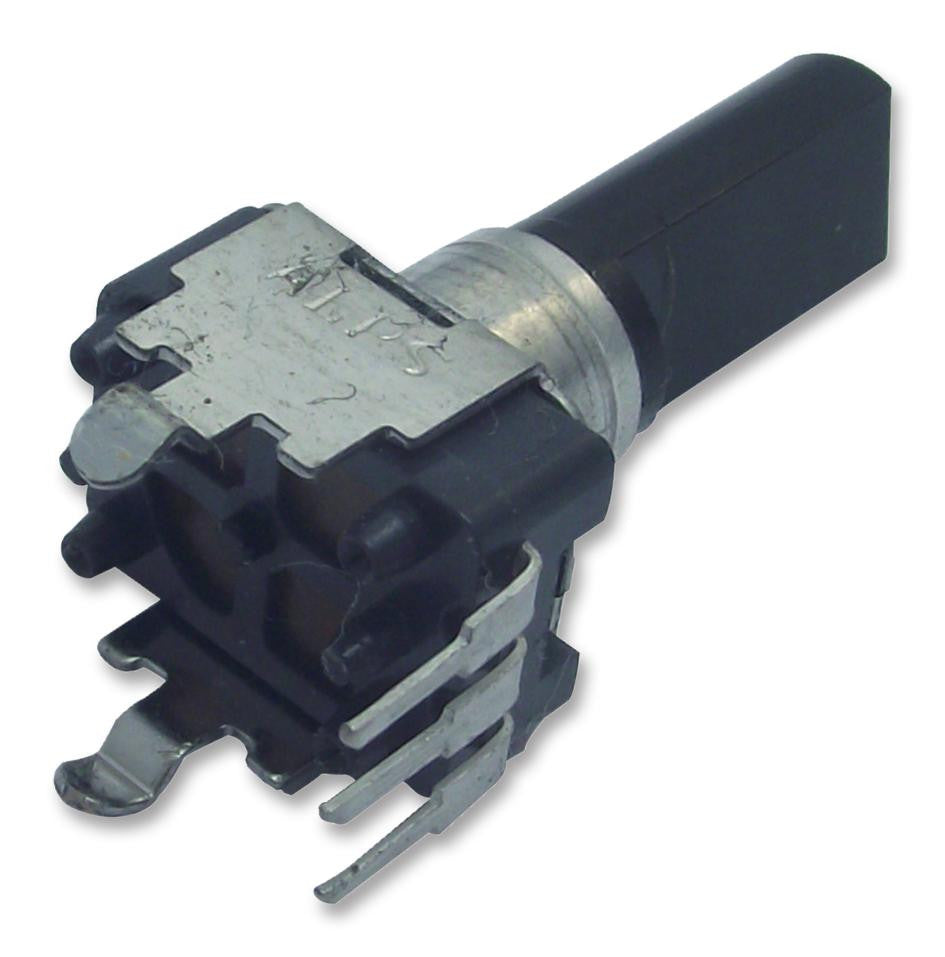

The RK09K/D series from Alps are insulated shaft snap-in rotary potentiometers. These are compact type potentiometer with 9.8mm wide and are ideally designed for high density sets and audio applications.
- Single unit or dual unit resistor element
- Flat knob and screw driver type shafts available
- Length of the shaft varies from 15mm to 30mm
- With or without center detent option available
- Total resistance of 5Kohm, 10Kohm, 20Kohm, 50Kohm, 100Kohm and 200Kohm
- Total resistance tolerance of �20% and �30%
- Horizontal and vertical type mounting available
- Operating temperature range -10�C to 70�C
- Total rotational angle of 280� or 300�and maximum power rating up to 0.05W
- 15A, 15C, 1B, 3B resistance taper available
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Shaft Length | 17mm |
| Shaft Diameter | 6mm |
| No. of Gangs | 1 |
| Adjustment Type | Rotary |
| Resistance Tolerance | � 20% |
| Product Range | RK09 Series |
| Track Taper | Linear |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Through Hole |
| Power Rating | 50mW |
| Track Resistance | 100kohm |
Other details
| Brand | ALPS |
| Part Number | RK09K1130C94 |
| Quantity | Each |
| Technical Data Sheet EN |  |
