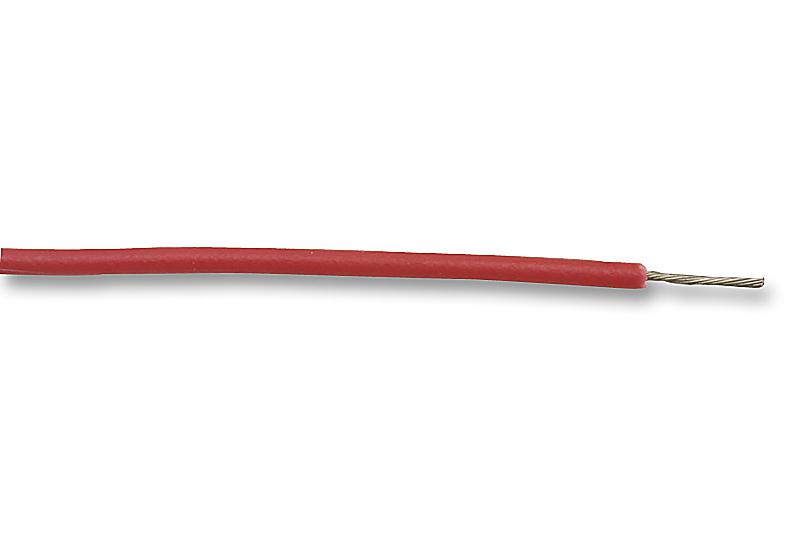

EcoWire hook-up wires use flexible Noryl insulation to provide an environmentally friendly alternative to PVC. Noryl is a modified polyphenylene ether thermoplastic that is inherently lighter and tougher, and more flame resistance than PVC. The result is wires that are smaller than their PVC based counterparts. The non-halogenated insulation contains no heavy metal pigments, allowing it to help manufacturers to meet Waste Electrical and Electronic Equipment (WEEE) requirements. EcoWire Plus offers excellent resistance to hazardous fluids such as oils, chemicals, solvents & fuels. Designed for industrial applications with exposure to oils and other hazardous fluids, our new EcoWire Plus offers all the environmental benefits and abrasion resistance characteristics of standard EcoWire plus the additional fluid resistance for demanding factory apps.
- CPR: Not Yet Qualified
- Operating temperature range -40°C to 110°C
- Stranded copper conductors
- Improved Fluid Resistance
- Modified polyphenylene ether insulation
Product details
| Jacket Material:
MPPE
|
| Jacket Colour:
Red
|
| Wire Gauge:
22AWG
|
| Conductor Area CSA:
0.35mm²
|
| Reel Length (Imperial):
100ft
|
| Reel Length (Metric):
30.5m
|
| Operating Temperature Max:
110°C
|
| No. of Max Strands x Strand Size:
7 x 30AWG
|
| Voltage Rating:
300V
|
| Conductor Material:
Copper
|
| External Diameter:
1.17mm
|
| Approval Specification:
-
|
| Product Range:
EcoWire Plus
|
Other details
| Brand |
ALPHA WIRE |
| Part Number |
6823 RD005 |
| Quantity |
Reel of 1 |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
