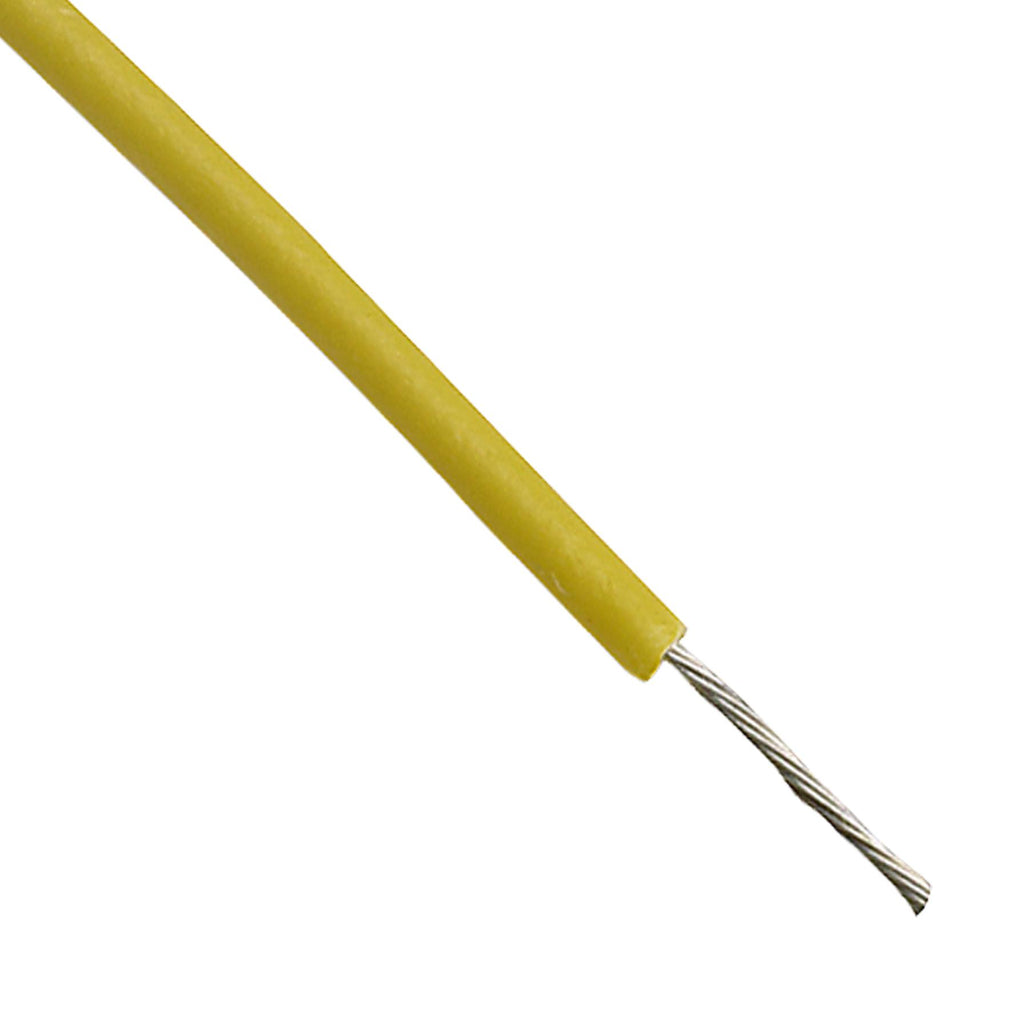

The 5875 YL005 is a 100ft Hook-up Wire with stranded silver-plated copper conductor and PTFE insulation. It is exactly suited for application as control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven or off-road construction equipment. This MIL-W-16878E type-EE wire has the ability to withstand wear and abrasion, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination.
- CPR: Not Yet Qualified
- Excellent electrical properties
- 5.9lbs Maximum pull tension
- 0.05µH/ft Nominal inductance
Applications
Aerospace, Defence, Military, Automotive
Product details
| Jacket Material |
PTFE |
| Jacket Colour |
Yellow |
| Wire Gauge |
22AWG |
| Conductor Area CSA |
0.385mm² |
| Reel Length (Imperial) |
100ft |
| Reel Length (Metric) |
30.5m |
| Operating Temperature Max |
200°C |
| No. of Max Strands x Strand Size |
19 x 34AWG |
| Voltage Rating |
1kV |
| Conductor Material |
Copper |
| External Diameter |
1.499mm |
| Approval Specification |
MIL-DTL-16878/5 (TYPE EE), UL 1180 |
| Product Range |
- |
Other details
| Brand |
ALPHA WIRE |
| Part Number |
5875 YL005 |
| Quantity |
Reel of 30 |
| Technical Data Sheet EN |
 |
| Suffix Chart EN |
|
