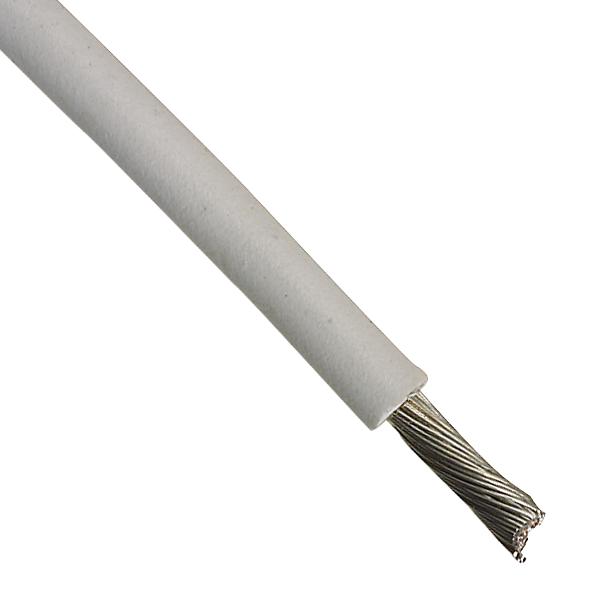

The 5859/10 WH005 is a 100ft 10AWG 600V white Hook-up Wire with stranded silver-plated copper conductor and PTFE insulation. This MIL-DTL-16878/4 type E wire has the ability to withstand wear and abrasion, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination.
- CPR: Not Yet Qualified
- 74lbs Maximum pull tension
- 0.012mm Insulation thickness
- -60°C to 200°C Temperature range
- EXBMG NEMA HP3 type
- REACH regulation (EC 1907/2006)
Applications
Automation & Process Control, Microwave, Aerospace, Defence, Military, Industrial
Product details
| Jacket Material |
PTFE |
| Jacket Colour |
White |
| Wire Gauge |
10AWG |
| Conductor Area CSA |
4.74mm² |
| Reel Length (Imperial) |
100ft |
| Reel Length (Metric) |
30.5m |
| Operating Temperature Max |
200°C |
| No. of Max Strands x Strand Size |
37 x 0.4mm |
| Voltage Rating |
600V |
| Conductor Material |
Tinned Copper |
| External Diameter |
3.404mm |
| Approval Specification |
MIL-DTL-16878/4 (Type E) |
| Product Range |
- |
Other details
| Brand |
ALPHA WIRE |
| Part Number |
5859/10 WH005 |
| Quantity |
Reel of 1 |
| Technical Data Sheet EN |
 |
| Suffix Chart EN |
|
