Description

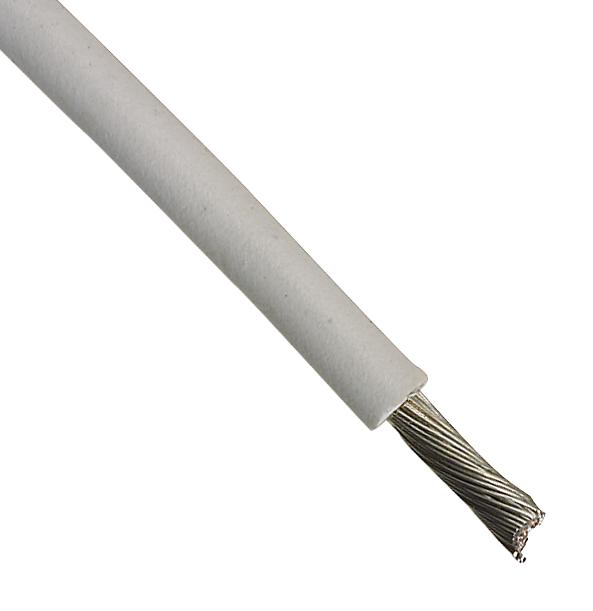

The 5857 WH005 is a 100ft 18AWG 600V white Hook-up Wire with stranded silver-plated copper conductor and PTFE insulation. This MIL-DTL-16878/4 type E wire has the ability to withstand wear and abrasion, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination.
- CPR: Not Yet Qualified
- 14.9lbs Maximum pull tension
- 0.010mm Insulation thickness
- -60°C to 200°C Temperature range
- EXBHE NEMA HP3 type
- REACH regulation (EC 1907/2006)
Applications
Automation & Process Control, Microwave, Aerospace, Defence, Military, Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Jacket Material: PTFE |
| Jacket Colour: White |
| Wire Gauge: 18AWG |
| Conductor Area CSA: 0.96mm² |
| Reel Length (Imperial): 100ft |
| Reel Length (Metric): 30.5m |
| Operating Temperature Max: 200°C |
| No. of Max Strands x Strand Size: 19 x 0.25mm |
| Voltage Rating: 600V |
| Conductor Material: Silver Plated Copper |
| External Diameter: 1.753mm |
| Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213 |
| Product Range: - |
Other details
| Brand | ALPHA WIRE |
| Part Number | 5857 WH005 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
