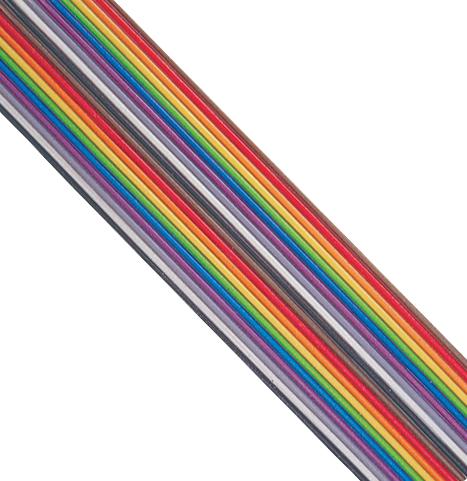

The 3530 MC005 is a 10-core unshielded Ribbon Cable with stranded tinned copper conductor and a colour-coded PVC insulator bonded into a flat configuration. It facilitates easier routing and termination, taking up less space than wire harness bundles. It is designed to safely carry more current than round harnesses of similar wire gauges and is easy to separate and route within circuit.
- CPR: Not Yet Qualified
- 59lbs Maximum pull tension
- 0.17µH/ft Nominal inductance
- 15.1R/1000ft at 20°C Nominal conductor DC resistance (DCR)
Applications
Computers & Computer Peripherals
Product details
| Cable Shielding |
Unscreened |
| No. of Cores |
10Core |
| Wire Gauge |
22AWG |
| Conductor Area CSA |
0.38mm² |
| Reel Length (Imperial) |
100ft |
| Reel Length (Metric) |
30.5m |
| Jacket Colour |
Multi-coloured |
| Cable Width |
12.95mm |
| No. of Max Strands x Strand Size |
19 x 34AWG |
| Pitch Spacing |
1.27mm |
| Voltage Rating |
600V |
| Conductor Material |
Tinned Copper |
| Jacket Material |
PVC |
| Ribbon Cable Type |
Flat Ribbon Cable |
| Product Range |
- |
Other details
| Brand |
ALPHA WIRE |
| Part Number |
3530 MC005 |
| Quantity |
Reel of 30 |
| Technical Data Sheet EN |
 |
