Description

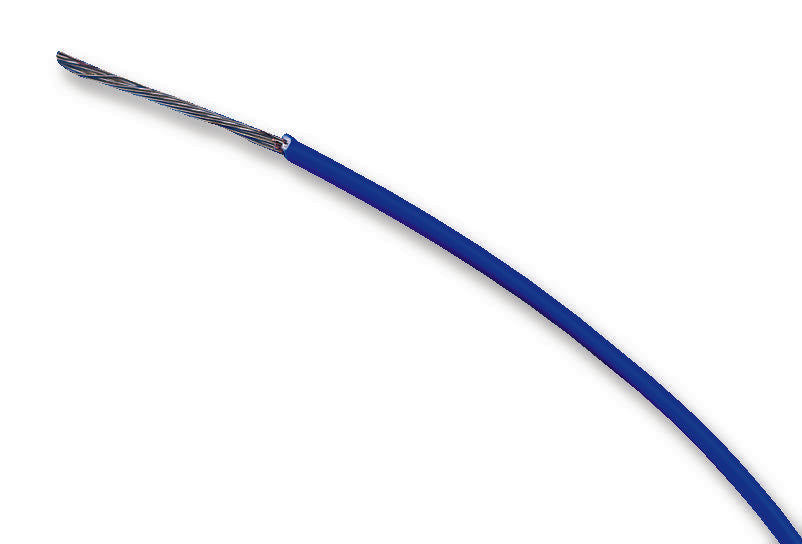

The 2842/7 BL005 is a 100ft blue Hook-up Wire with silver-plated copper conductor and PTFE insulation. It is exactly suited for the application as control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven or off-road construction equipment. It has ability to withstand wear and abrasion, electrical performance or resistance to oil, solvents and chemicals.
- CPR: Not Yet Qualified
- 1.37Lbs Maximum pull tension
- NEMA HP3-ETXBCB
- 0.05µH/ft Nominal inductance
- -60 to 200°C Temperature range
Applications
Aerospace, Defence, Military, Industrial
Product details
| Jacket Material: PTFE |
| Jacket Colour: Blue |
| Wire Gauge: 28AWG |
| Conductor Area CSA: 0.09mm² |
| Reel Length (Imperial): 100ft |
| Reel Length (Metric): 30.5m |
| Operating Temperature Max: 200°C |
| No. of Max Strands x Strand Size: 7 x 36AWG |
| Voltage Rating: 250V |
| Conductor Material: Silver Plated Copper |
| External Diameter: 0.686mm |
| Approval Specification: MIL-DTL-16878/6 (Type ET), UL VW-1 |
| Product Range: - |
Other details
| Brand | ALPHA WIRE |
| Part Number | 2842/7 BL005 |
| Quantity | Reel of 30 |
| Technical Data Sheet EN |  |
