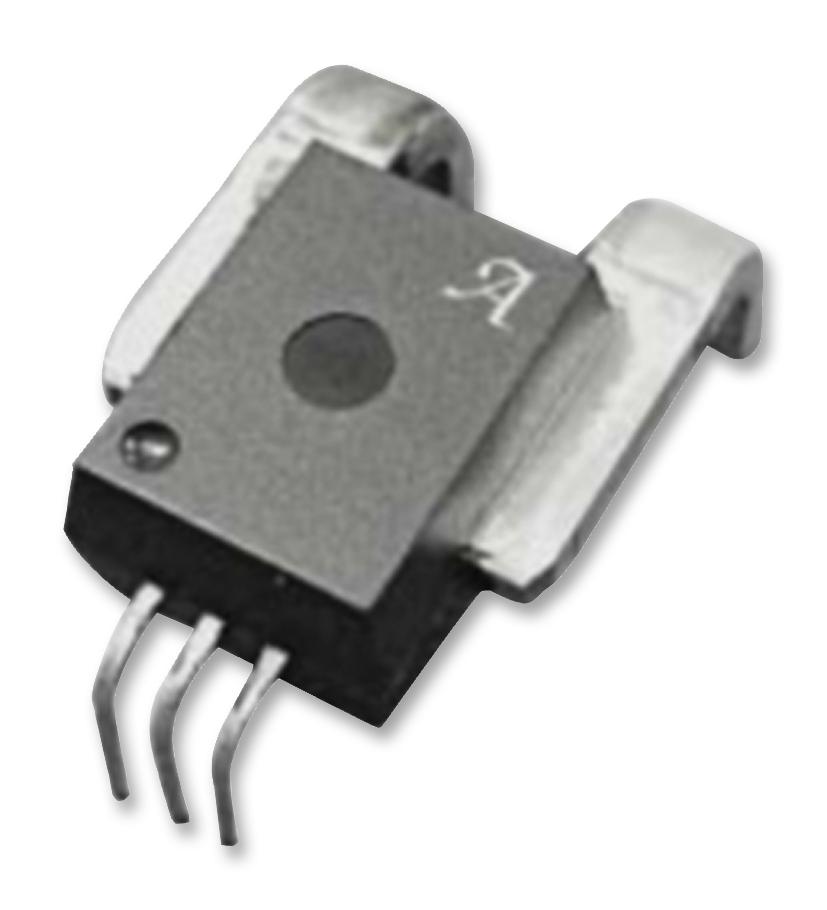

Allegro� ACS770 family of current sensor IC provides economical and precise solutions for AC or DC current sensing. Typical applications include motor control, load detection and management, power supply and DC-to-DC converter control, inverter control, and overcurrent fault detection.
- 120KHz typical bandwidth
- 4.1µs output rise time in response to step input current
- Industry-leading noise performance through proprietary amplifier and filter design techniques
- Greatly improved total output error through digitally programmed and compensated gain
- Monolithic hall IC for high reliability
- Ultralow power loss of 100µohm internal conductor resistance
- Galvanic isolation allows use in economical, high-side current sensing in high-voltage systems
- 4.5 to 5.5V single supply operation
- Output voltage proportional to AC or DC currents
- Extremely stable output offset voltage
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
ALLEGRO MICROSYSTEMS |
| Part Number |
ACS770LCB-050B-PFF-T |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
