| ₹ 245.84 includes GST and import duties. | |
| B2B customers can avail ₹ 37.49 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

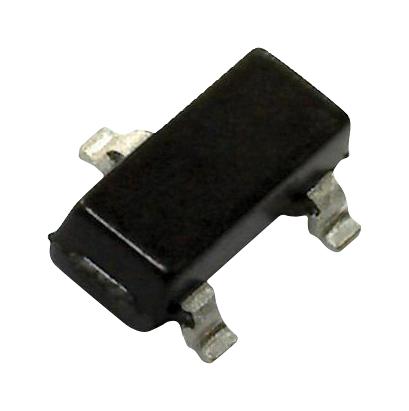

The A1120LLHLT-T is a chopper-stabilized unipolar Precision Hall Effect Switch has extremely temperature-stable and stress-resistant features. Device includes on a single silicon chip a voltage regulator, hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger and a short- circuit protected open-drain output to sink up to 25mA. A south pole of sufficient strength turns the output ON. Removal of the magnetic field turns the output OFF. It is specially suited for operation over extended temperature ranges to 150°C. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device over-moulding, temperature dependencies and thermal stress.
- Resistant to physical stress
- Superior temperature stability
- Output short-circuit protection
- Operation from unregulated supply
- Reverse-battery protection
- Solid-state reliability
- AEC-Q100 Automotive qualified
Sensing & Instrumentation, Automotive
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | ALLEGRO MICROSYSTEMS |
| Part Number | A1120LLHLT-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 240.92 |
| 3-5 | ₹ 238.46 |
| 5-10 | ₹ 233.55 |
| 10+ | ₹ 228.63 |
Bulk discount will be automatically applied during checkout based on quantity.
