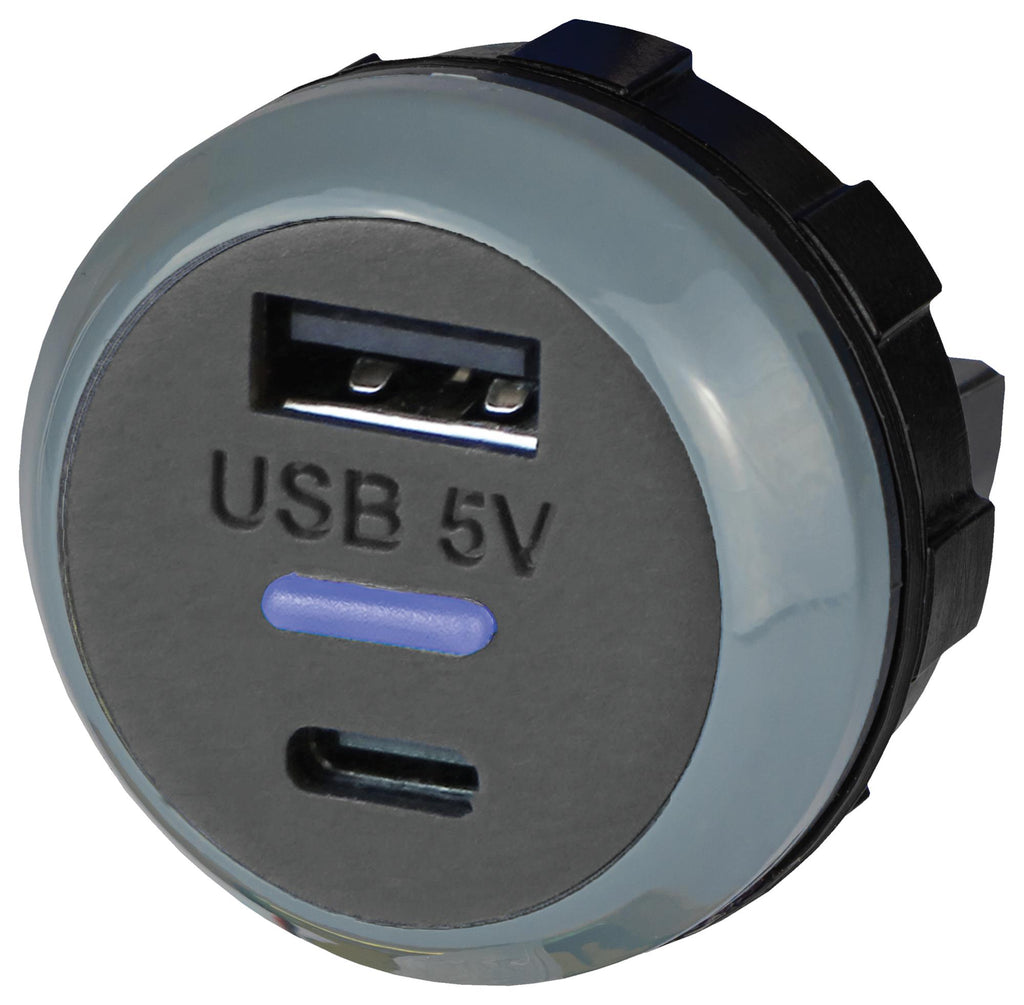

PowerVerter PVPro range of USB chargers amalgamates all the great design concepts of USB charging on vehicles into one simple range. It has safe protection features such as overcurrent, overheat, overvoltage and undervoltage. It has Input voltage range of 9 to 32VDC, output voltage of 5.2VDC +/- 0.2V, output noise of <50mV pk-pk, off load current (quiescent current) of <2.5mA and power conversion efficiency of 90%. Meets ISO7637-2 International standard for 12/24V vehicles. Typically used for charging of USB devices including Apple and Android. Standard versions require only 20mm (typical) rear space and can easily be installed in bus and coach seat backs, walls and dashboards. A series of installation pod designs enable retrofit options for underseat, table and wall mounting.
- Standard IP30 USB charger
- USB 'A' & 'C' dual output with 12/24-5V, 3.6A ratings
- Dimension is �37 x 33, hole �30, rear space typ.22
- Standard version
- Apple and Android compatible
- Blue LED output indication
- Designed to EN50498, ISO 7637-2, R118 & R080
- Reverse polarity, transients and catastrophic protections
- Dark grey polycarbonate body, contrasting trim ring
- Operating temperature range from -25°C to +55°C
Product details
| Product Range:
PVPro Series
|
| Current Rating:
3.6A
|
| Voltage Rating VAC:
24V
|
| USB Standard:
-
|
| No. of USB Ports:
2 Ports
|
| USB Connector Type:
USB Type A, USB Type C
|
| No. of Outlets:
-
|
| Connector Colour:
Grey
|
| Connector Mounting:
Panel Mount
|
Other details
| Brand |
ALFATRONIX |
| Part Number |
PVPRO-AC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
