Description
Alfatron ALF-PA100W Overview

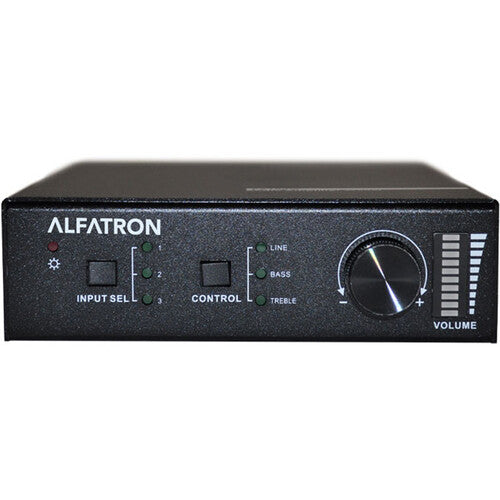

Add a low-profile, compact-size amplifier in your classroom or conference room with this PA100W Compact Digital Amplifier from Alfatron. The class-D digital amplifier features one RCA stereo, a 3.5mm TRS, and an optical fiber input. It boasts a switchable stereo 2 x 50W, 8-ohm output that can also be set to mono with 1 x 100W at 4 ohms with complete EQ adjustments to manage line, bass, and treble. It also has intuitive LED indicators for volume setting, input source, and control, which can be achieved via RS-232, IR, and optional TCP/IP.
Key Features

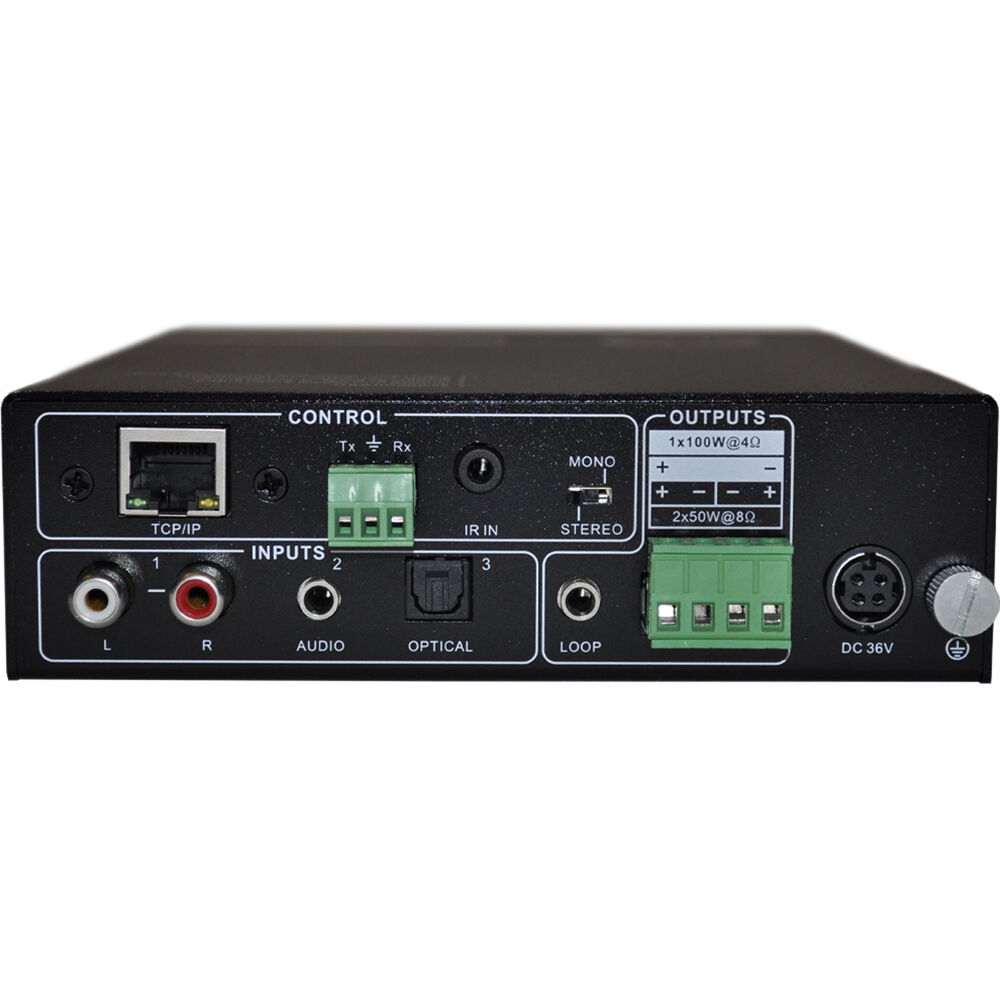

- Three audio inputs: one RCA stereo, one 3.5mm TRS, and one optical fiber
- Switchable stereo/mono output
- Complete EQ management: including line, bass, and treble
- Easily adjustable volume via a rotary knob
- Audio loop output
- Intuitive LED indicators for the input source, control, and volume setting
- Controllable via RS-232, IR, TCP/IP (optional), and Web-based GUI
- Power off memory
In the Box
- Alfatron PA100W Compact Digital Amplifier (Class-D)
- 2 x Detachable Mounting Ear
- 4 x Screw
- 3-Pin Terminal Block
- 4-Pin Terminal Block
- IR Remote
- 36 VDC, 2.66 A Power Adapter
- IR Receiver (5V Without Carrier)
Guides & Manuals
Alfatron ALF-PA100W Specs
Amplifier
| Number of Channels | 2 |
| Power Rating | 2 x 50 W |
| Amplifier Class | Class-D |
| Load Impedance / Voltage | Mono/Stereo: 4 / 8 Ohms |
Performance
| Frequency Response | 20 Hz to 20 kHz |
| Damping Factor | > 100 |
| Input Impedance | >10 Kilohms |
| Max Gain | 32 dB |
| SNR | 80 dB |
| THD+N | 1% (1 KHz 50W) |
Signal Processing
| DSP | Yes |
| Crossover | Yes |
| EQ | 2-Band: Treble: Bass: |
Connectivity
| Analog Audio I/O | 1 x 2RCA 1-Pin Female Line Input 1 x 1/8" / 3.5 mm TRS Female Line Input 1 x Block 4-Pin Speaker Output 1 x Block 3-Pin Control |
| Digital I/O | 1 x TOSLINK S/PDIF Input |
Power
| Power Consumption | 1.48 W |
Physical
| Display & Indicators | Front Panel: 1 x LED (Level/Signal) Front Panel: 6 x Green LED (Status) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 10 to 90% |
| Dimensions | 5.8 x 1.7 x 6.5" / 148.0 x 44.0 x 165.0 mm |
| Weight | 1.5 lb / 0.7 kg |
