Description
Alfatron MUH44E Overview
Connect four HDMI sources to up to eight displays with the MUH44E 4x4 4K HDBaseT Matrix Switcher from Alfatron. The MUH44E offers four HDMI inputs and four HDMI outputs, with each HDMI output mirrored to a corresponding HDBaseT output that can extend lossless 18GB/s video transmission to up 492' in 1080p and 328' in 4K60 over a single Cat 6/7 cable (available separately). Four HDBaseT receivers are included in the package.

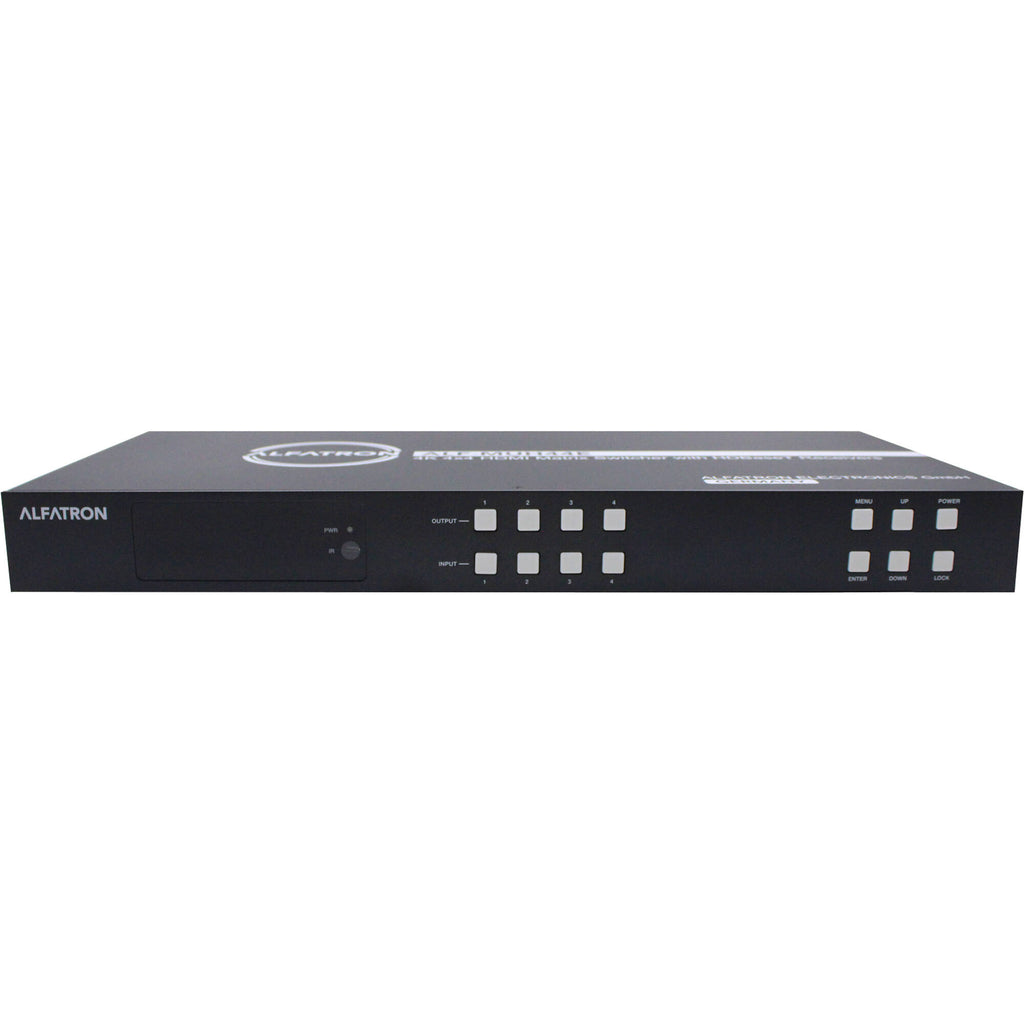

The 1 RU matrix unit is housed in a metal enclosure that features an OLED display on the front panel, which provides a readout for settings and operational status. The unit supports HDR, including HDR10, HDR10+, and HLG, and it is capable of downscaling 4K video to 1080p on each of its outputs.
- HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant
- Video resolutions up to 4K60 (YUV 4:4:4) on all HDMI & HDBaseT ports
- HDMI ports transmit 18GB/s lossless uncompressed video bandwidth
- Supports 18GB/s lossless compressed HDBaseT signal transmission
- HDMI audio pass-through up to 7.1 HD audio (LPCM and DTS-HD Master Audio)
- Supports IR matrix
- Audio de-embedding is supported via analog and coax ports
- Advanced EDID management and CEC control
- 24V PoC on all HDBaseT ports
- 1 RU rackmount design with front-panel OLED display
- Control via front-panel buttons, IR remote, RS-232, LAN, and Web GUI
In the Box
- Alfatron MUH44E 4x4 4K HDBaseT Matrix Switcher
- 4 x HDBaseT Receiver
- Matrix IR Remote
- AC Power Cable
- RS-232 Cable (4.9')
- 4 x 3-Pin Phoenix Connector
- 4 x 5-Pin Phoenix Connector
- 5 x IR Emitter Cable (4.9')
- 5 x IR Receiver Cable (4.9')
- 10 x Mounting Ear (Matrix and Receiver)
Alfatron MUH44E Specs
| Switching Type | Pushbutton, Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 12-Bit 4:2:2 YCbCr 12-Bit 4:2:0 YCbCr 8-Bit 4:4:4 YUV 12-Bit 4:4:4 RGB 10-Bit 4:4:4 RGB 8-Bit 4:4:4 RGB |
| Video Inputs | 4 x HDMI Female |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) UHD 4K up to 60 fps |
| Embedded Audio Input | HDMI |

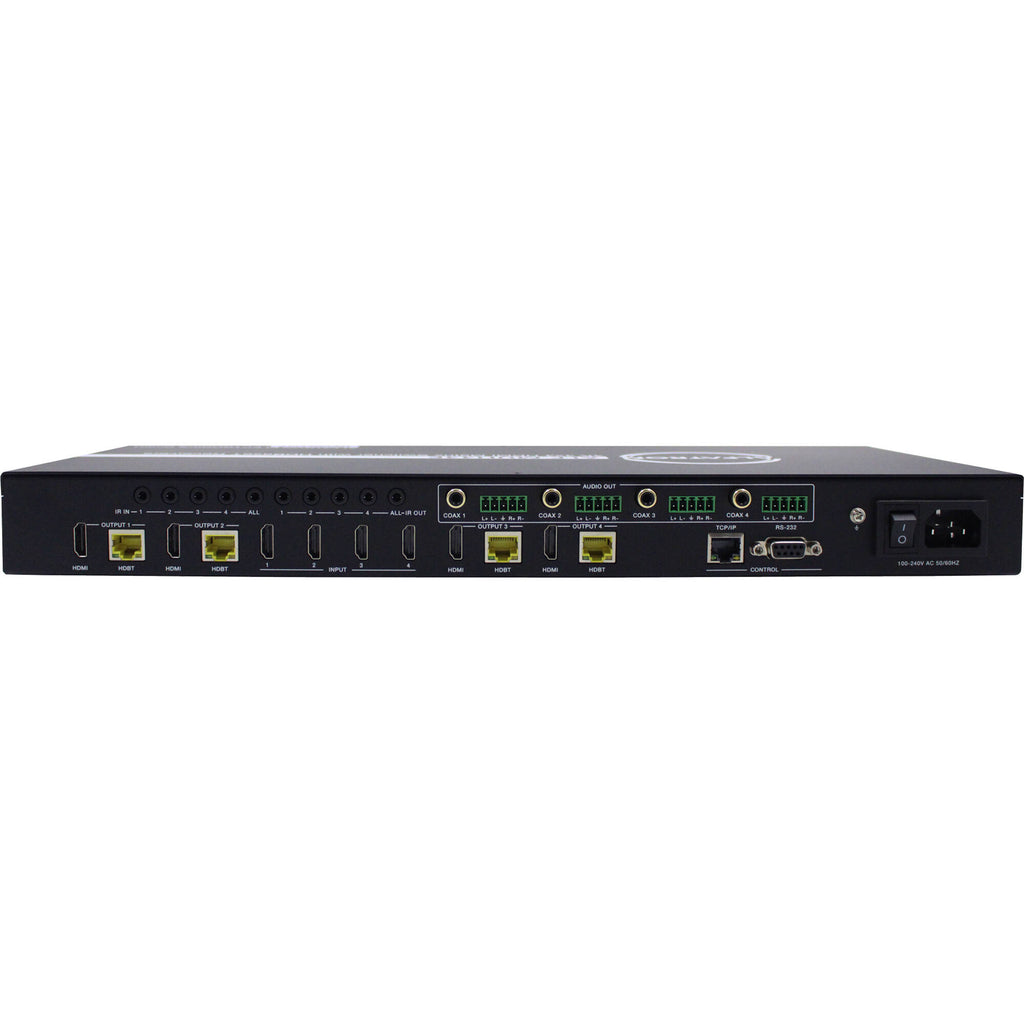

| Video Outputs | 4 x HDMI Female 4 x RJ45 (HDBaseT) Female |
| Output Video Format | HDMI / RJ45 (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) UHD 4K up to 60 fps |
| Audio Outputs | 4 x 1/8" / 3.5 mm TRS Stereo Analog Female 4 x Block 5-Pin Stereo Analog Female |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI |
| Other I/O | 5 x 1/8" / 3.5 mm IR Input 5 x 1/8" / 3.5 mm IR Output 1 x RJ45 Control Input 1 x DE-9/DB-9 RS-232 |
| HDCP Support | Version 2.2 |
| HDR Compatibility | HDR10, HDR10+, Hybrid Log Gamma |
| DTS Compatibility | DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Power I/O | 1 x IEC C14 (100 to 240 VDC) Input |
| Power Consumption | 60 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
| Dimensions | 17.3 x 7.9 x 1.8" / 440 x 200 x 44.5 mm |
| Weight | 6.8 lb / 3.1 kg |
