Description
Alfatron TPBK70 Overview

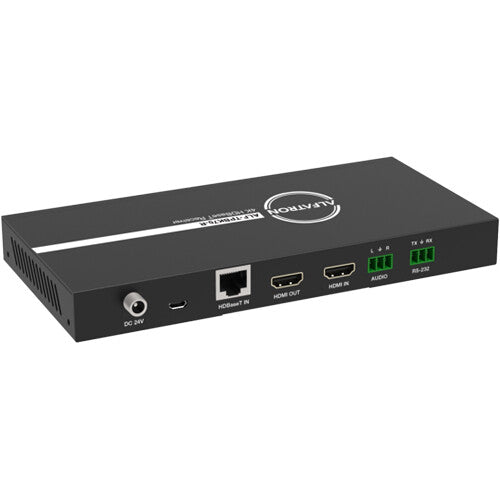

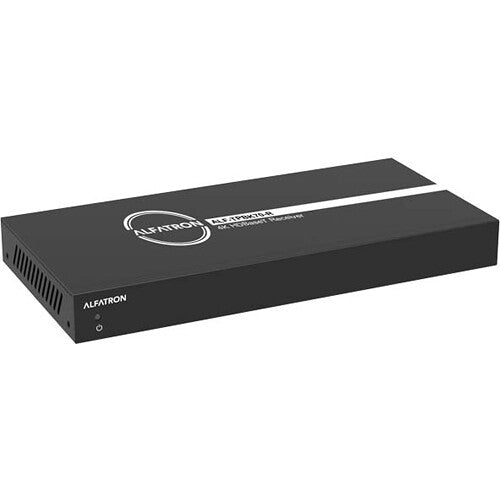

The Alfatron TPBK70-R HDMI over Cat 6 HDBaseT Extender Receiver supports video resolutions up to 4K2K60 Hz 4:4:4 from the transmitter over Cat 6. It has bidirectional RS-232 pass-through; audio de-embedding, and the RS-232 control signal can be transmitted up to 131'. It supports local HDMI in with auto switching between HDBaseT in and local HDMI in.
Features
- Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a
- HDMI input supports 18 Gb/s video bandwidth
- Auto switching between HDBT in and local HDMI in
- Video resolution up to 4K2K @ 50/60 Hz 4:4:4
- HDBaseT output can extend video transmission distance up to 230' for 1080p60 or 131' for 4K60 via a single Cat 6/6a/7 cable
- Supports 3D, HDR10
- HDMI audio formats support LPCM, DTS, DTS-EX, DTS-96/24, DTS high res, DTS-HD master audio, and DSD
- Supports PoE function (receiver to transmitter only)
Alfatron TPBK70 Specs
Interfaces
| Inputs | 1 x HDMI 1 x RJ45 (HDBaseT) |
| Outputs | 1 x HDMI (HDMI 2.0b) 1 x Block 3-Pin (Stereo Analog) |
| Other I/O | 1 x Block 3-Pin RS-232 |
Standards
| HDCP Support | Version 2.2 |
| EDID Support | None |
Transmission
| Max Transmission Distance | 131.2' / 40 m |
| Supported Cable Types | Cat 6 |
Power
| Power Connector | 1 x Barrel Input |
| PoE Support | Yes |
Alfatron TPBK70 Reviews
