Description
Alfatron ALF-10XUSB2C Overview

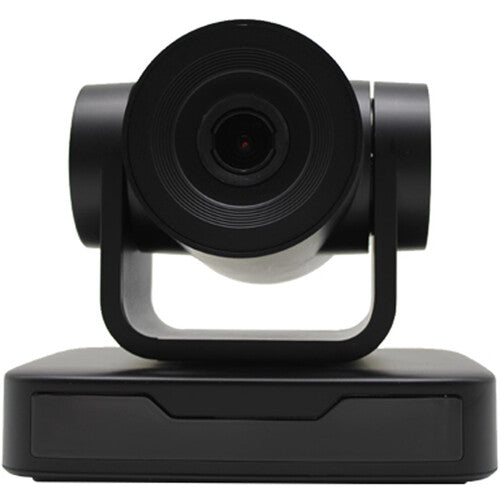

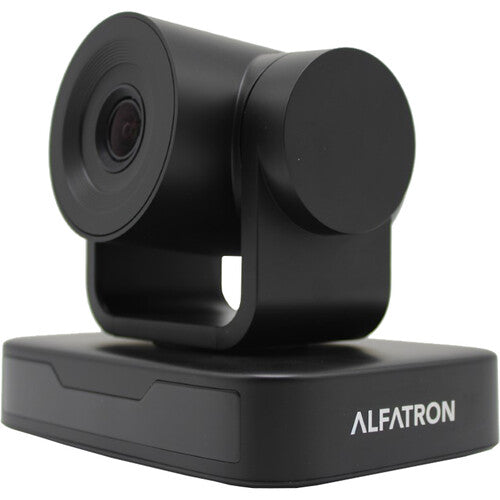

Add a PTZ-style webcam to your mid-sized conference room or remote education location using the 1080p USB 2.0 PTZ Camera with 10x Optical Zoom from Alfatron. The camera features high-definition video capture up to 1080p30 using a 1/2.9" HD CMOS sensor and has a high signal-to-noise ratio as well as 3D/2D noise reduction for enhanced image quality, even in low light. The built-in zoom lens has a maximum optical zoom of 10x and a field of view that measures from 8.8 to 66°. The camera offers USB 2.0 video output to a computer and can be powered using the host connection or with the included DC power supply.
The camera supports OBS software that allows you to control the camera using UVC, and you can utilize popular webcam conferencing applications such as Zoom, Skype, and Teams. There are 255 programmable in-camera preset positions to rapidly move between positions using RS-232 or RS-422/RS-485 with separately available controllers using the VISCA or Pelco-D/P protocols. The IR control can also control the camera and it allows you to store up to 10 preset positions. You can mount the camera, using the included bracket mount.
In the Box
- Alfatron Full HD USB 2.0 PTZ Camera with 10x Optical Zoom
- IR Remote Control
- 12 VDC Power Adapter
- USB 2.0 Cable
- RS-232 Cable
- Ceiling/Wall Mount
- Limited 7-Year Warranty
Alfatron ALF-10XUSB2C Specs
| Image Sensor | 1-Chip 1/2.9" CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel (1920 x 1080) |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 3000 to 7000K |
| Precise Scan Rate Control | No |
| Built-In Speaker | No |
| IR Cut Filter | No |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 10x |
| Focal Length | 4.3 to 41.6mm |
| Field of View | Horizontal: 66 to 8.8° |
| Maximum Aperture | f/1.85 to 2.43 |
| Focus Control | Autofocus Manual Focus |
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | USB: 1920 x 1080p at 25, 30 fps 1280 x 720p at 25, 30 fps 960 x 540p at 25, 30 fps 800 x 600p at 25, 30 fps 720 x 576p at 25, 30 fps 720 x 480p at 25, 30 fps 640 x 480p at 25, 30 fps 640 x 360p at 25, 30 fps 352 x 288p at 25, 30 fps 320 x 240p at 25, 30 fps 320 x 180p at 25, 30 fps |
| Presets | 255 via RS-232, VISCA 10 via IR |
| Move Speed | Pan: 0.1 to 60°/sec Tilt: 0.1 to 40°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 60° (-30 to 30°) |
| Tally Light | No |
| Supported Control Protocols | IR Pelco-D Pelco-P RS-232 RS-485 VISCA |
| Video Output Connectors | 1 x USB 2.0 Type-A (USB Video) Female |

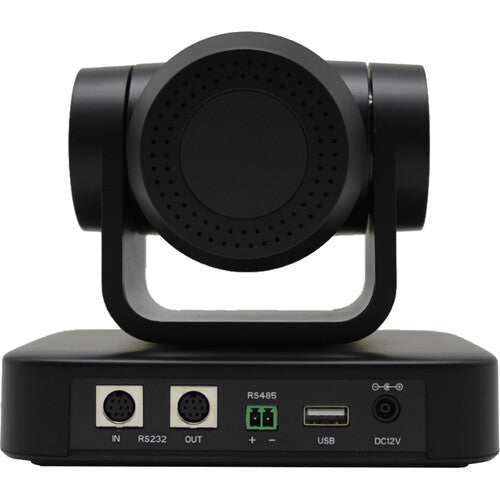

| Control Interface | 1 x 8-Pin Mini-DIN (RS-232, VISCA) Input 1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Output 1 x Terminal Block (RS-485) Input |
| Supported Operating Systems | Windows 7 or Later macOS Linux |
| Power Connectors | 1 x JEITA (12 VDC at 4.9 A) |
| Power Consumption | Power Supply: 12 VDC 2.5 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 90% |
| Security Lock Support | Yes |
| Dimensions | 6.17 x 5.49 x 4.43" / 15.68 x 13.95 x 11.26 cm |
| Weight | 2.2 lb / 1 kg |
| Package Weight | 5.83 lb |
| Box Dimensions (LxWxH) | 10.6 x 9.8 x 9.1" |
