Alfatron MUK44N Overview
- 1Description
- 2Cross-Point Switching and Control
- 3Four S/PDIF Audio Outputs
- 4EDID
- 5Included Accessories

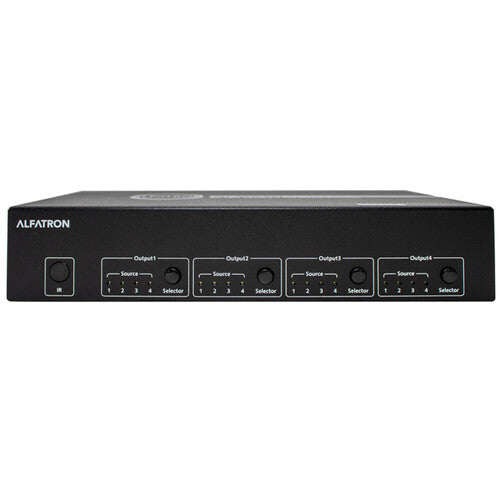

The Alfatron Compact 4x4 HDMI Matrix Switcher connects four video inputs to four video outputs along with accompanying S/PDIF audio to create efficient multi-display home entertainment systems, classroom integration, or conference rooms. All video inputs and outputs support HDR formats, including HDR10, Hybrid Log Gamma, and Dolby Vision up to 4K at 60 Hz with HDCP 2.2 compliance. When connected to a 1080p display, downscaling works automatically and can be set either on or off through API commands. Control of the device's advanced functions can be achieved through the front-panel buttons, included IR remote, RS-232, and through the system's IP with Web UI software.
EDID is also supported by the switcher in preset, copy, and writing capacities. Each input EDID is set as 4K at 60 Hz by default with 5.1-channel encoded audio and can be assigned to smart EDID mode in the system's settings. The S/PDIF audio outputs supports stereo and multichannel surround audio formats. Additionally, a micro-USB port can be utilized for firmware upgrades to keep the system up to date and efficient. Included mounting brackets can be attached to the system for permanent mounting on a table or wall.
Cross-Point Switching and Control
Four S/PDIF Audio Outputs
EDID
Included Accessories
In the Box
- Alfatron Compact 4x4 HDMI Matrix Switcher

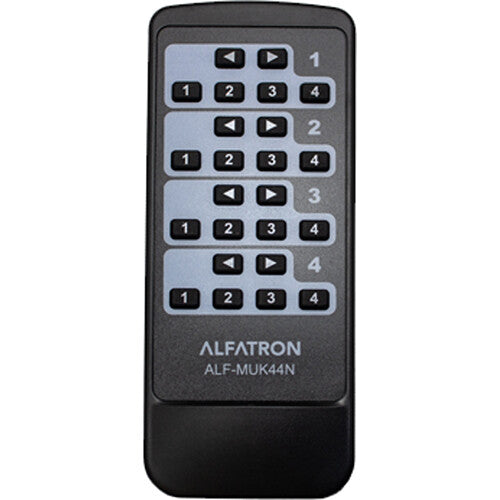

- IR Remote Control
- IR Receiver
- 12 VDC / 2A Power Adapter
- AC Power Cord
- 3-Pin Euroblock Connector
- 2 x Mounting Bracket
- Limited 7-Year Warranty
- Description
- Cross-Point Switching and Control
- Four S/PDIF Audio Outputs
- EDID
- Included Accessories
Alfatron MUK44N Specs
| Switching Type | IR Remote, Pushbutton, Software |
| Processing Resolution | DCI 4K at 60 |
| Color Processing | 4:4:4 |
| Video Input Connectors | 4 x HDMI (HDMI 2.0) Female |
| Input Video Format | HDMI (4:4:4) DCI 4K: 60 fps |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio Input | HDMI: 4-Channel (per Input) |
| Video Output Connectors | 4 x HDMI (HDMI 2.0) Female |
| Output Video Format | HDMI (4:4:4) DCI 4K: 60 fps |
| Audio Output Connectors | 4 x RCA Stereo S/PDIF Female |
| Output Audio Format | S/PDIF |
| Multiview Output | 4-Way Multiview viaHDMI |

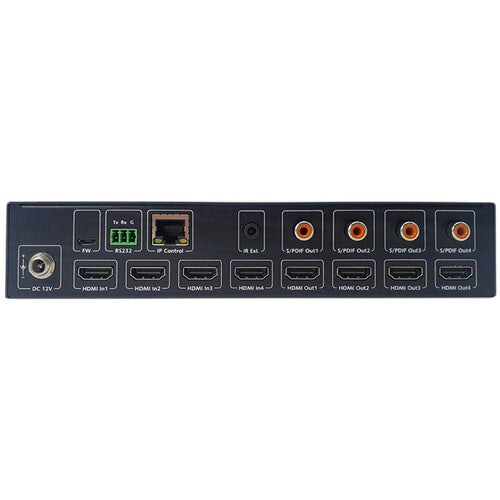

| Other I/O | 1 x USB Micro-B Firmware Input 1 x RJ45 Control Input 1 x 3-Pin Euroblock RS-232 Input 1 x 3.5 mm IR Input |
| HDCP Support | Version 2.2 |
| HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma |
| DTS Compatibility | DTS, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Digital, Dolby TrueHD |
| Power Connector | 1 x Barrel (12 VDC at 2 A) Input |
| Power Consumption | Device: 10.8 W |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| Weight | 1.2 lb / 540 g |
