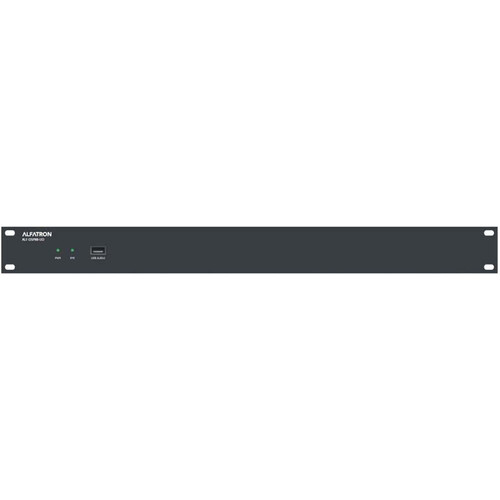

Alfatron DSP88 Overview
Add digital signal processing audio managing, routing, processing, and control to your studio with this 8x8 Audio Digital Sound Processor with Dante from Alfatron. A vast array of technical features helps to simulate the work of an audio engineer with advanced processing modules that include acoustic echo cancellation, noise suppression, and auto mixing. The unit supports Dante and features eight analog inputs and eight analog outputs as well as eight digital inputs and eight digital outputs.
High-definition audio sampling and processing, with analog to digital and digital to analog conversion, is available on the input and output of the DSP, boasting a 48 kHz sampling rate and a bit rate of 24 bits. The unit also offers a dynamic range of 110 dB and a maximum level of +24 dBu. Expanders, compressors, AGC (acoustic gain compensation), parametric EQ, feedback suppression, gate, ambient noise compensation, graphic EQ, and delay are among the integrated input and output processing modules, with DSP-based audio management achieved via a connected computer running the GUI software for the DSP hardware models.

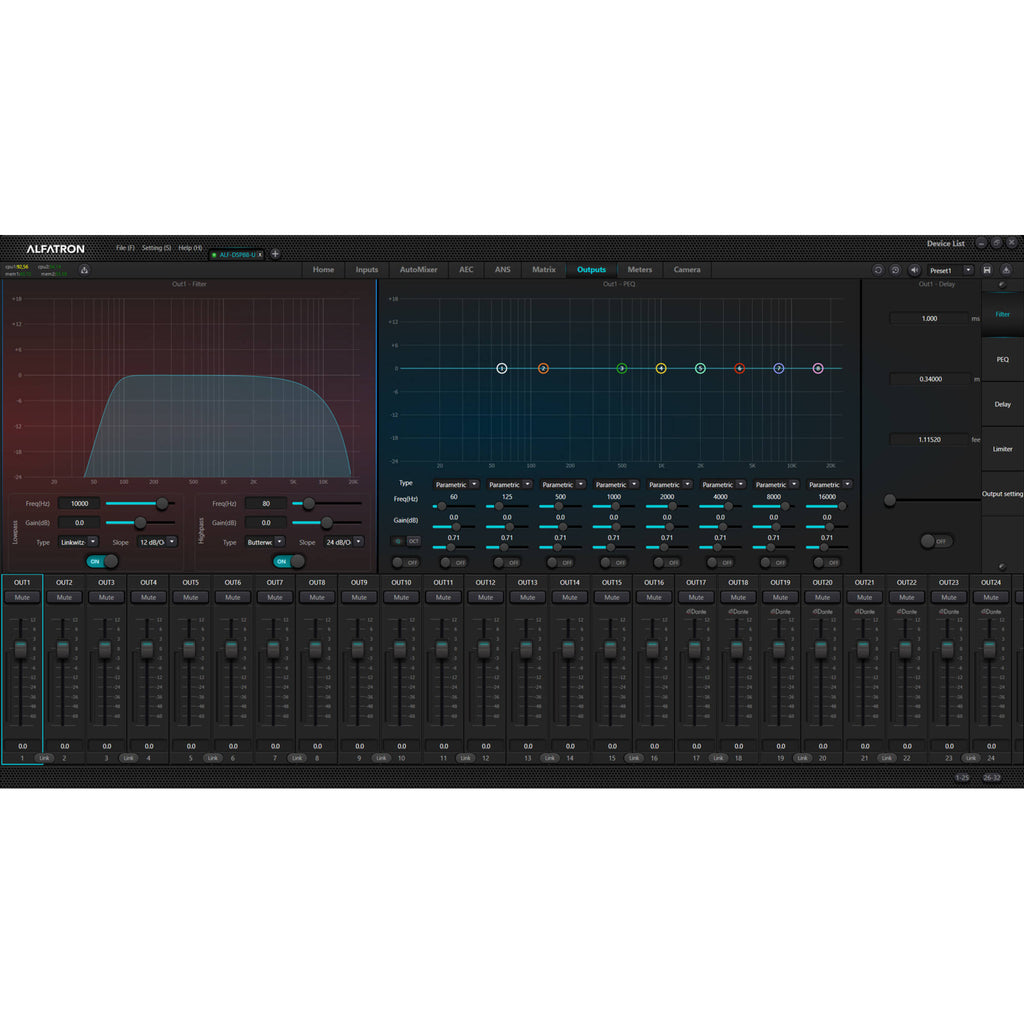

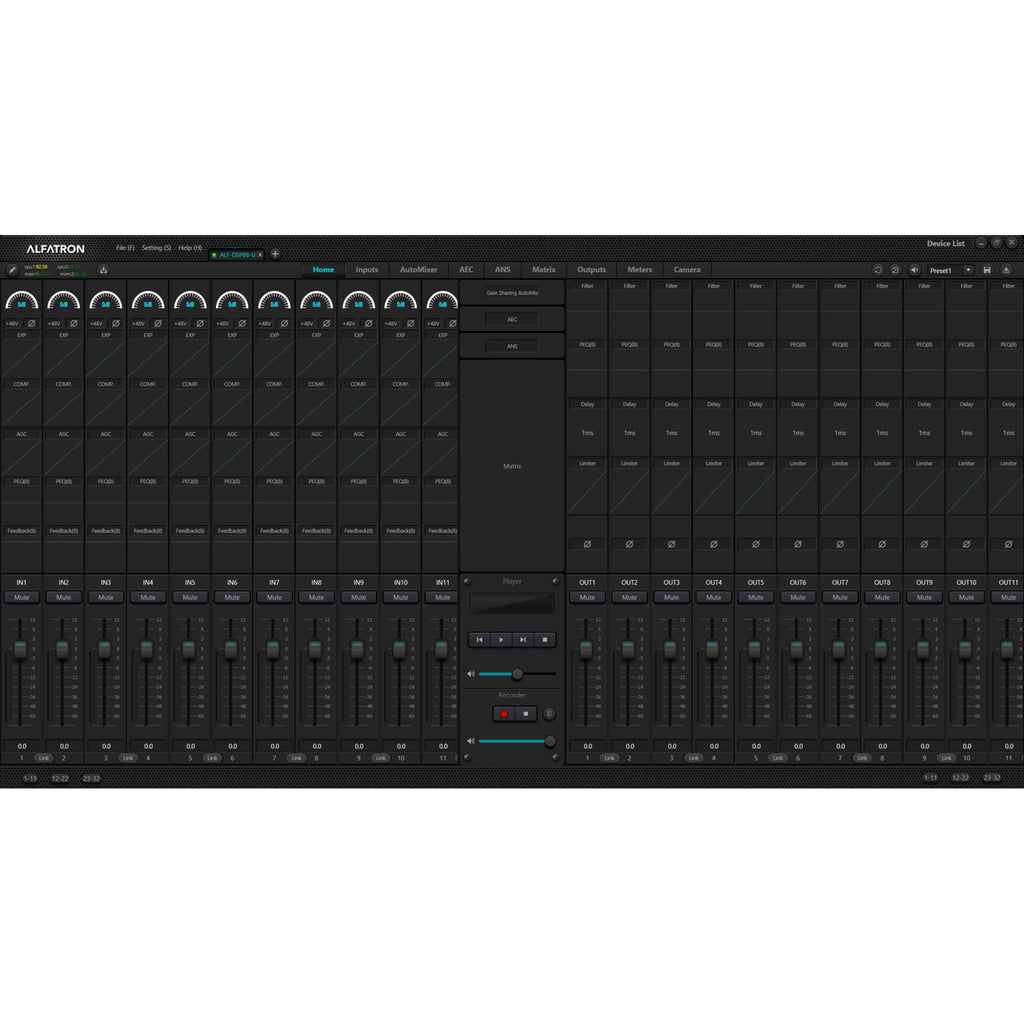

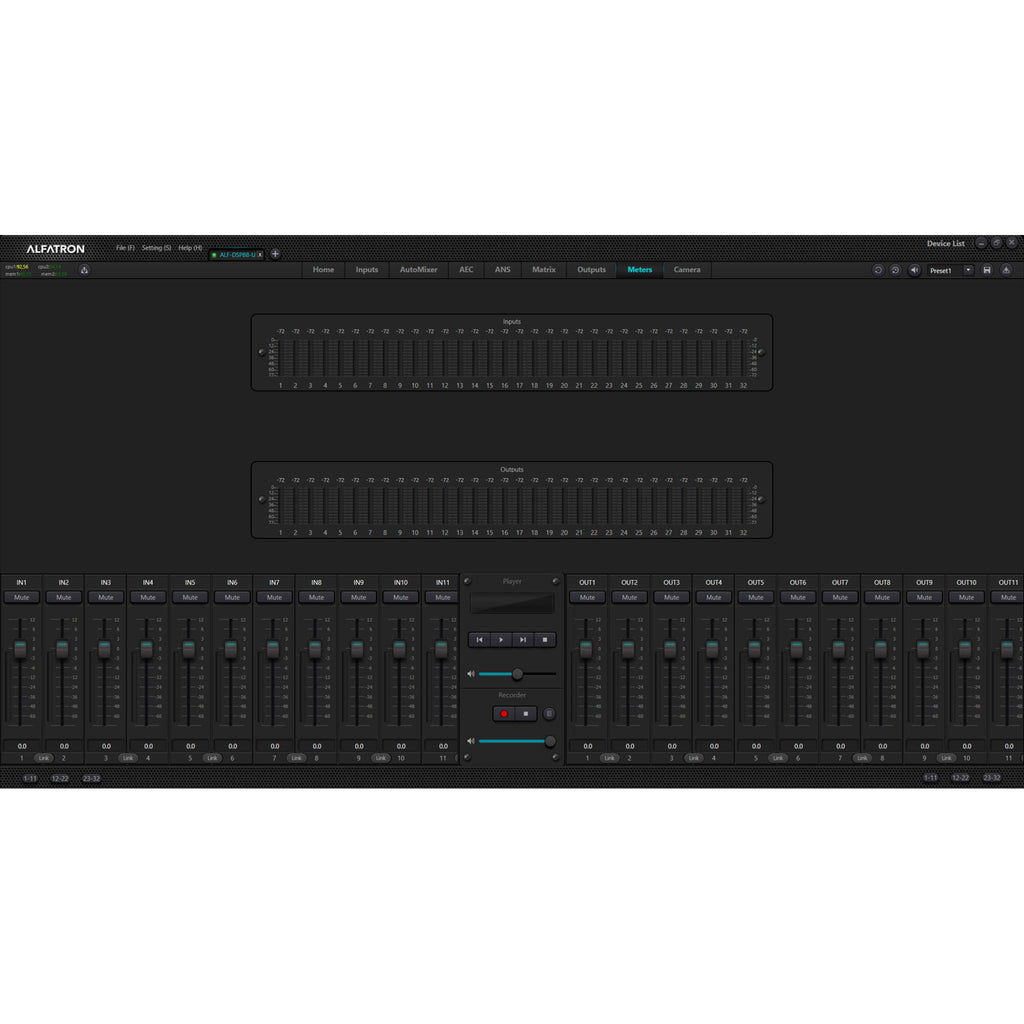

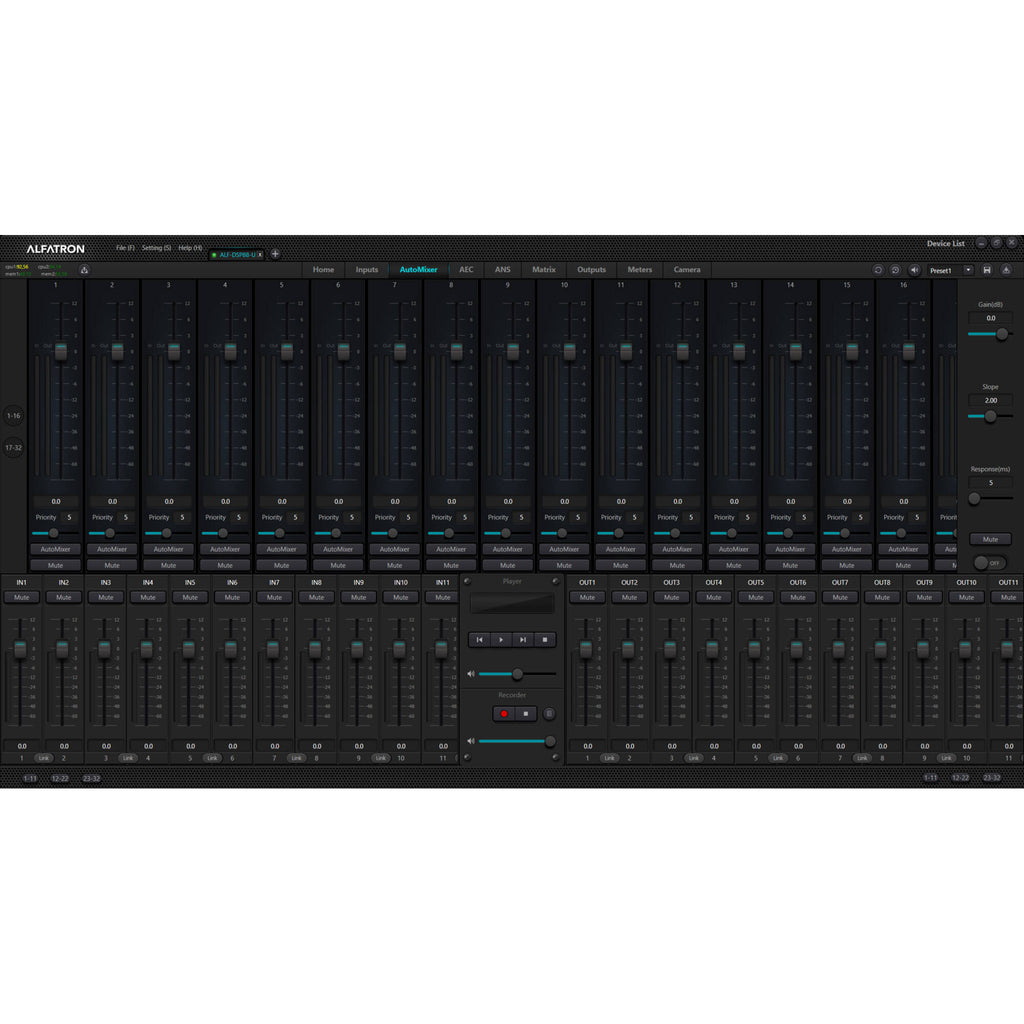

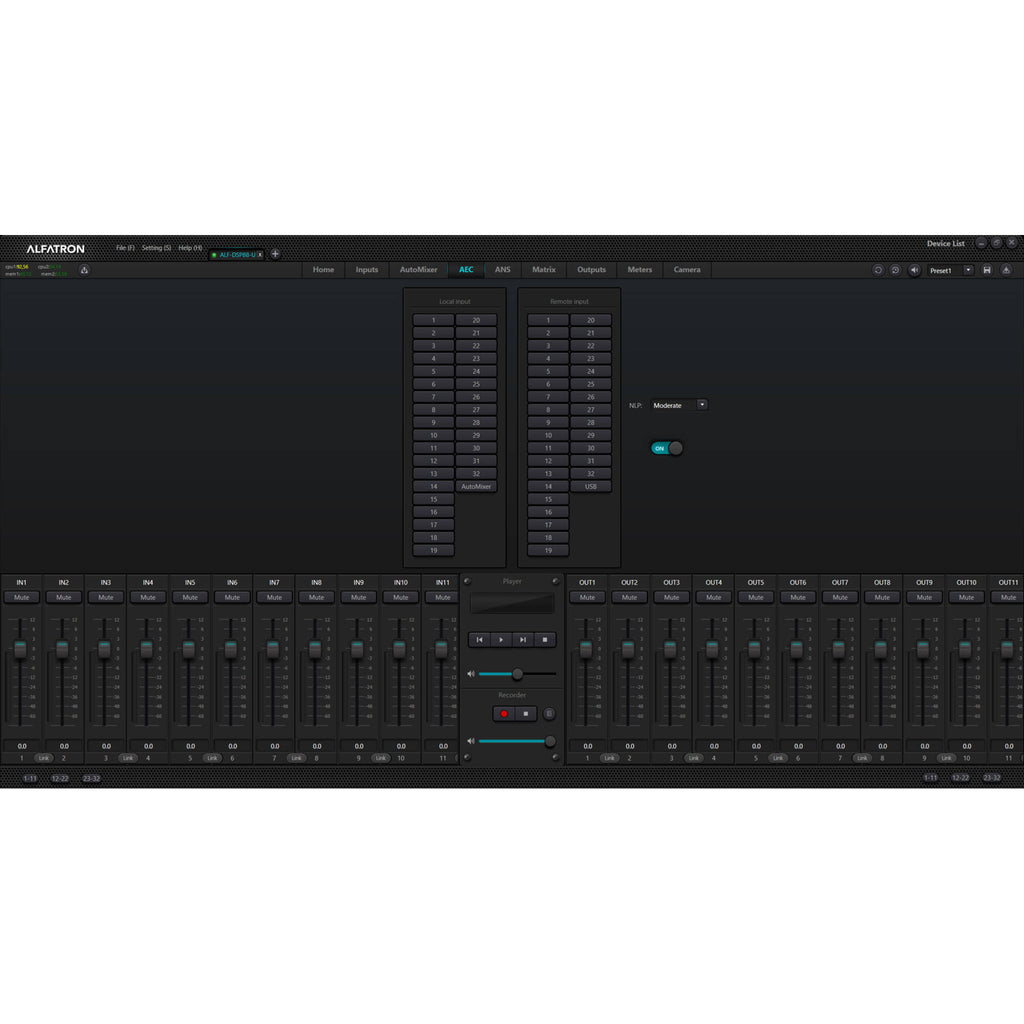

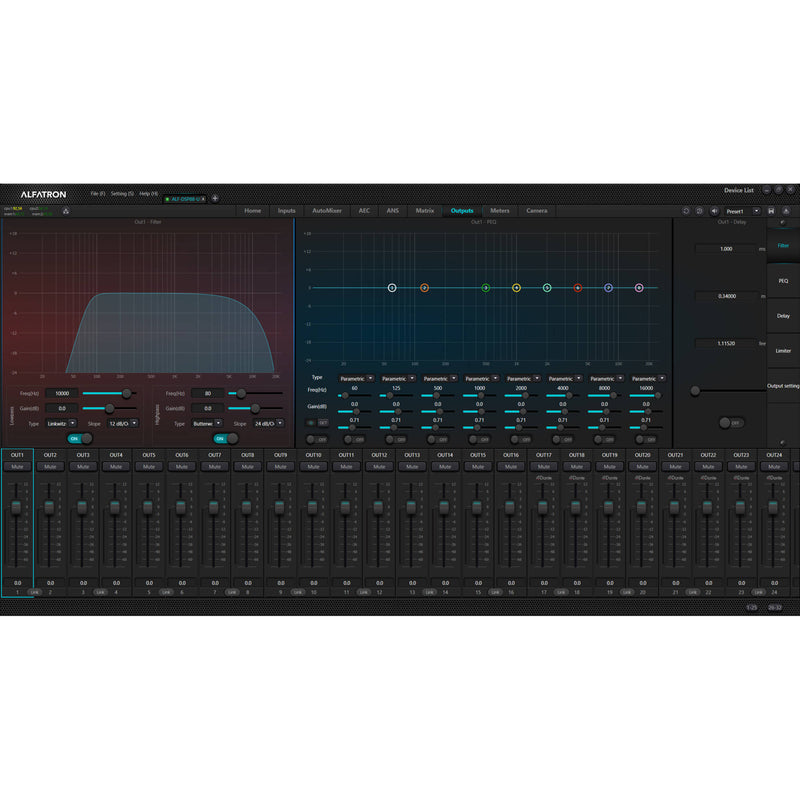

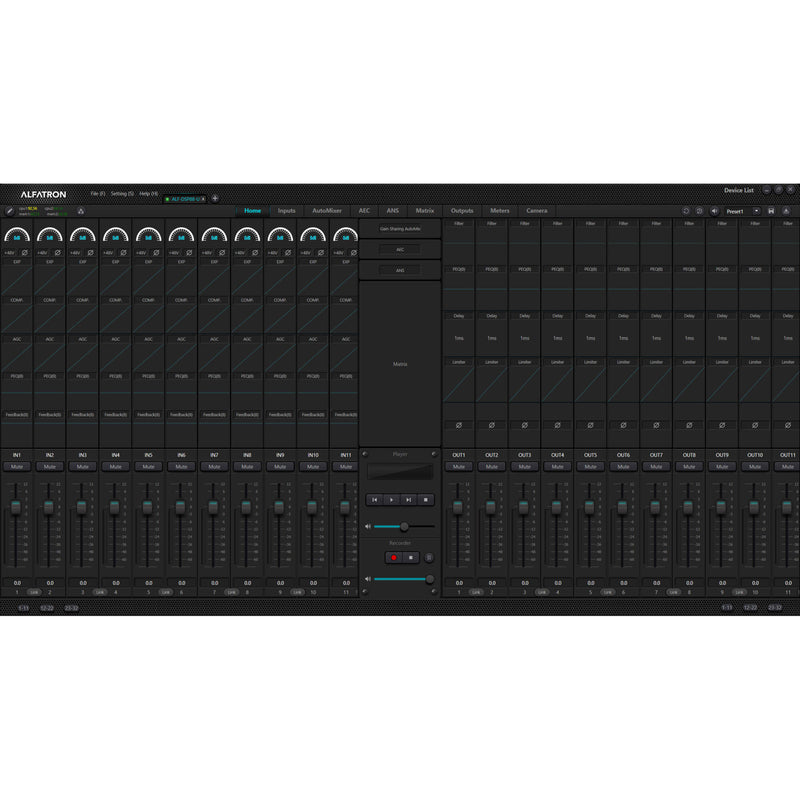

DSP configuration and control is facilitated by the Alfatron DSP Controller software, which is a Windows-based application that offers parameter adjustment and peripheral accessory settings of all modules, including RS-232, RS-485, and IP control with user-friendly click-and-drag panel configuration. Free iOS and Android apps are also available for downloading.
- 2 Channels of AEC processing
- 24-bit, 48 kHz A/D and D/A converters
- 1 x USB port
- RS-232, RS-485, and IP control
- Expanders
- Compressors
- Acoustic Gain Compensation (AGC)
- Parametric EQ
- Feedback Suppression
- Delay
Alfatron DSP88 Specs
Latency | 3 ms |

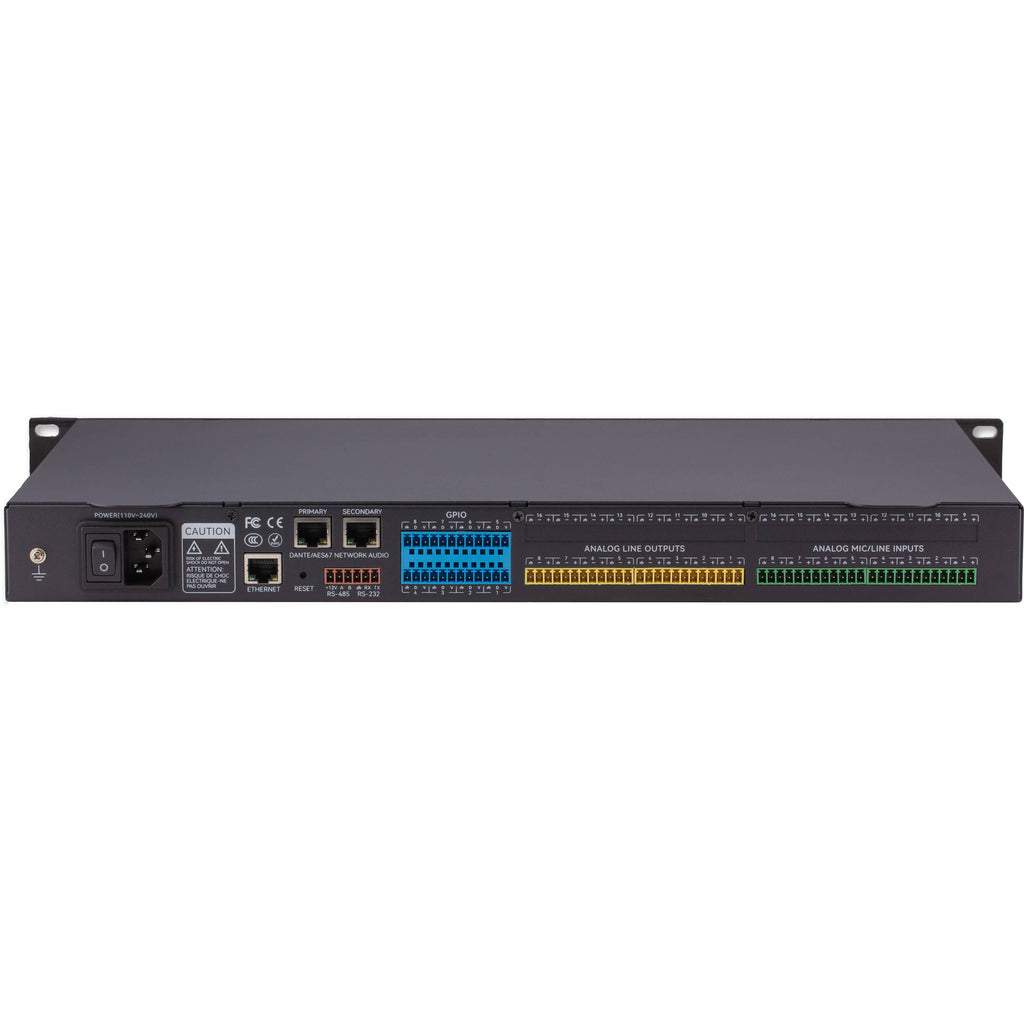

Audio Inputs | 8 x Block 3-Pin Balanced Mic/Line |
Input Audio Format | Analog: 48 kHz / 24-Bit |
Audio Outputs | 8 x Block 3-Pin Balanced |
Output Audio Format | Analog: 48 kHz / 24-Bit |
Max Input Level | +18 dBu |
I/O Impedance | Input: 5.4 Kilohms Output: 600 Ohms |
Frequency Response | 20 Hz to 20 kHz ±0.3 dB |
Network I/O | 1 x RJ45 Dante 1 x RJ45 Dante |
OS Compatibility | Windows 7 or Later *As of September, 2022: Check with manufacturer for the most up-to-date compatibility |
Processor | Intel Core i5 |
Bluetooth | Yes |
Power I/O | 1 x IEC C14 Input |
Power Consumption | Device: 110 to 240 VAC (25 W) |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Rack Form Factor | 1 RU |
Dimensions | 19 x 10.2 x 1.8" / 482 x 260 x 45 mm |
Weight | 8.8 lb / 4 kg |
