Description
Alfatron ALF-20X Overview

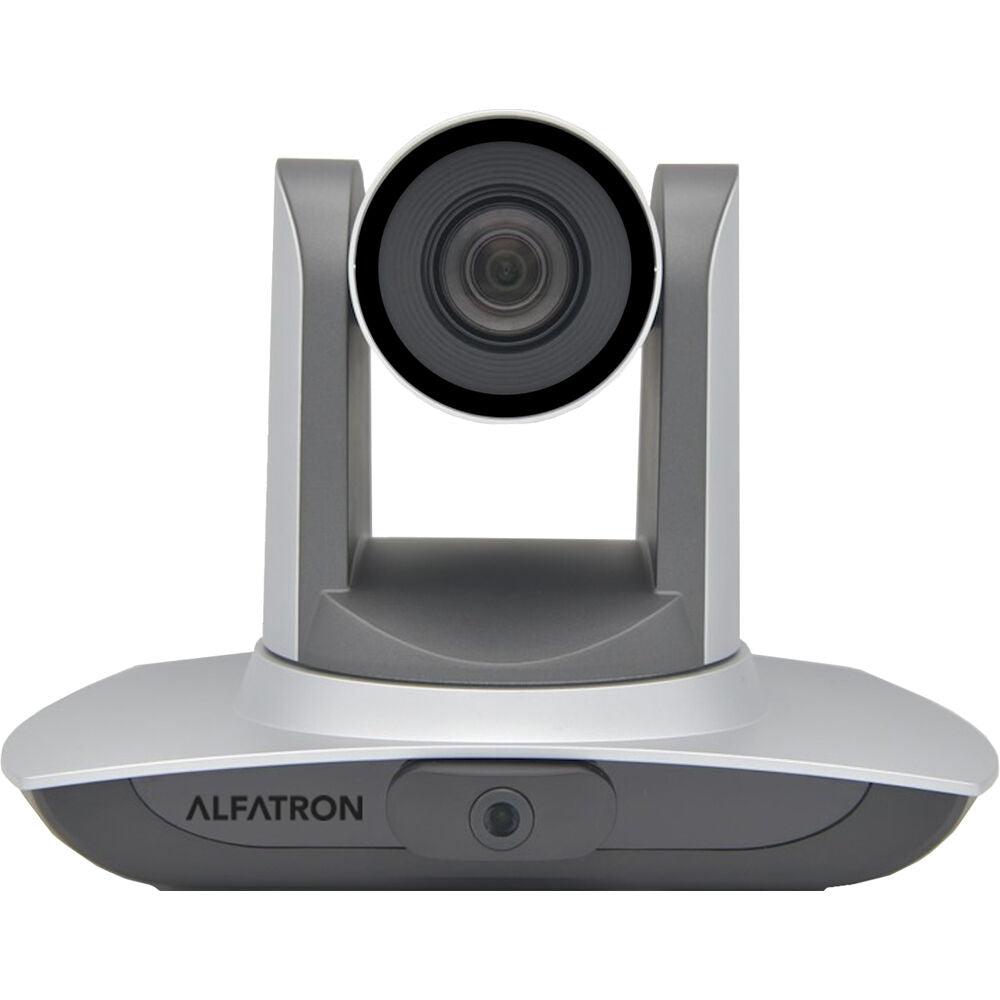

The 1080p HDMI/USB Autotracking PTZ Camera with 20x Optical Zoom from Alfatron features video capture resolutions up to 1080p60, and a 1/2.8" HD CMOS sensor. The built-in zoom lens has an optical zoom range of 20x, a field of view of 55.4°, and you can zoom in even further with the 10x digital zoom. The camera offers multiple video output options including HDMI, USB Type-A 3.0, and RJ45 LAN Ethernet streaming. The camera features a dual-lens system that allows you to utilize a close-up or a wide viewing angle without distortion.
With 255 programmable preset positions and 10 presets on the included IR remote, you can set the camera to rapidly move between positions using the IP, RS-232, RS-422/RS-485, or IR control with separately available controllers. The camera compresses using MJPEG, H.264, or H.265, and you can transmit up to two streams at the same time using RTSP or RTMP protocols. The camera supports external audio input via a 3.5mm stereo line-level jack to embed into the video output.
Key Features
In the Box
- Alfatron 1080p HDMI/USB Autotracking PTZ Camera with 20x Optical Zoom
- IR Remote Control
- 12 VDC Power Adapter
- RS-232 Cable
- Limited 7-Year Warranty
Alfatron ALF-20X Specs
| Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 3000 to 6500K |
| Max Digital Zoom | 10x |
| Built-In Speaker | No |
| Built-In ND Filter | None |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Optical Zoom Ratio | 20x |
| Focal Length | 4.7 to 94mm |
| Field of View | Horizontal: 55.4 to 2.9° |
| Maximum Aperture | f/1.6 to 3.5 |
| Focus Control | Autofocus Manual Focus |
| Output Formats | HDMI, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps 960 x 540p at 30 fps 640 x 480p at 30 fps 640 x 360p at 30 fps 352 x 288p at 30 fps |
| Embedded Audio | HDMI: 2-Channel |
| IP Streaming | H.264, H.265, RTMP, RTSP: 1080p, 720p, 480p, 360p at 30p |
| IP Multi-Stream Support | Yes |
| Recording Modes | Not Specified by Manufacturer |
| Presets | 255 via IR, RS-232, VISCA |
| Move Speed | Pan: 0.1 to 100°/sec Tilt: 0.1 to 45°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP IR Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |

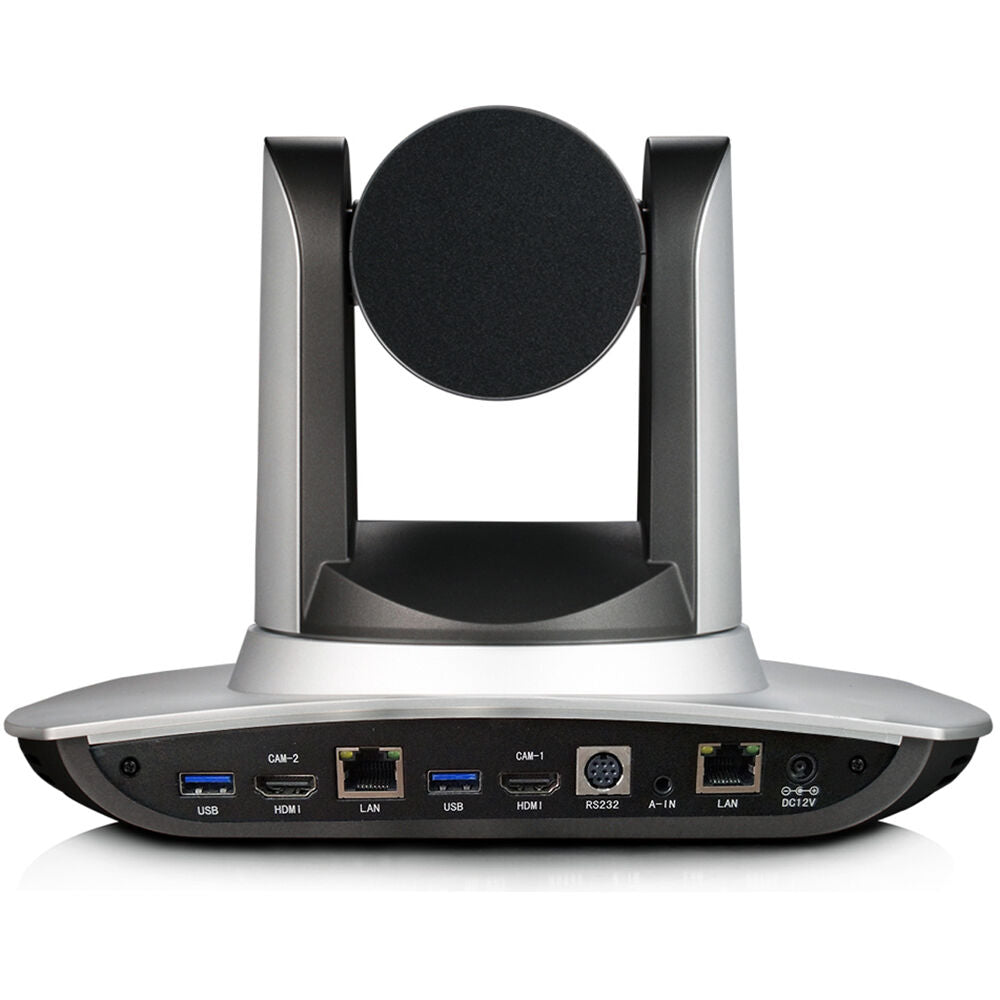

| Video Output Connectors | 2 x HDMI Type A Female 2 x USB 2.0 Type-A (USB Video) Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Line Level Input |
| Control Interface | 1 x 8-Pin Mini-DIN (RS-232) Input 1 x RJ45 (LAN) Output |
| PoE Support | None |
| Power Connectors | 1 x Barrel / Coaxial (12 VDC at 1.5 A) |
| Power Consumption | Device: 18 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
| Dimensions | 10 x 6.9 x 5.7" / 25.4 x 17.4 x 14.4 cm |
| Weight | 52.9 oz / 1.5 kg |
