Alfatron IP2HD Overview
Alfatron AV over IP System Overview

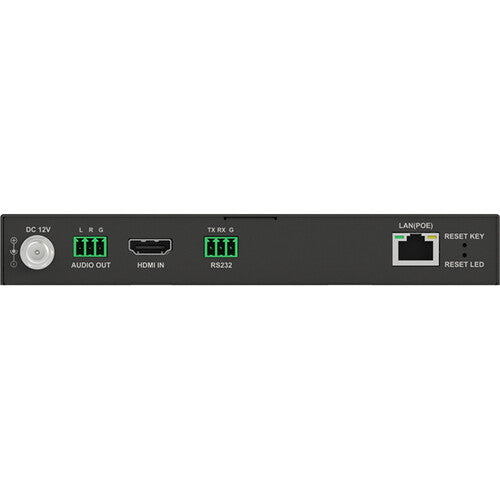

Add the 1080p HDMI to AV-over-IP Encoder with RS-232 Control from Alfatron to your network to encode IP video for video walls, streaming, or digital signage. The encoder inputs up to 1080p60 video from an HDMI source and outputs up to 1080p60 resolution video over an IP network. It can also input and embed analog stereo audio via its 3-pin terminal connector.
The encoder supports H.264/H.265 video compression and can send encoded video to the IP2HD decoder over a network for use with digital signage or a video wall matrix. It also supports AAC and LPCM audio formats, and it features a built-in scaler. You can control the encoder using RS-232 with separately available hardware or software, or you can use the VDirector app for iOS to preview your video to control your display setup. The encoder can be powered using the included power adapter or by using PoE (Power-over-Ethernet).
Key Features
Plug-and-play encoder solution that works easily with an Ethernet switch with no need to configure
Can be configured in an IP video matrix or video wall setup using the VDirector mobile app for iOS
Supports high-efficiency H.264/265 video codec and HDCP 1.4
Supports MPEG4-AAC and LPCM stereo audio
Preview management allows you to drag-and-drop sources to the desired displays for visual control
Easy to build an IP matrix or a video wall with use of a decoder
The encoder has a built-in scaler to achieve fast and seamless switching
The RS-232 route follows the switching of the video source
![]()
UPC: 737186137328
In the Box
- Alfatron 1080p HDMI to AV-over-IP Encoder with RS-232 Control
- 12 VDC Power Adapter
- US Plug
- EU Plug
- 2 x 3.5mm/3-Pin Terminal Connector
- Mounting Kit
- Limited 7-Year Warranty
Alfatron IP2HD Specs
Input
| Video Input Connectors |
1 x HDMI Female |
| Input Video Format |
HDMI
1080p: 60 fps |
| Audio Input Connectors |
1 x 3-Pin Euroblock Stereo Analog Female |
| Input Audio Format |
Analog |
| Embedded Audio Input |
HDMI |
Output
| Video Output Connectors |
1 x RJ45 Female |
| Output Video Format |
RJ45
1080p: 60 fps |
| Audio Output Connectors |
None |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio Output |
RJ45 |
Standards
| HDCP Support |
Version 1.4 |
| HDR Compatibility |
None |
Connectivity
| Other I/O |
1 x 3-Pin Euroblock RS-232 Input |
| Expansion Slots |
None |
IP Streaming
| Video IP Encoding |
H.264, H.265: 1920 x 1080 at 60p |
| Audio IP Decoding |
AAC |
Power
| Power Connector |
1 x Barrel (12 VDC at 1 A) Input |
| PoE Support |
PoE 802.3af |
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C |
| Storage Temperature |
-4 to 158°F / -20 to 70°C |
| Operating Humidity |
10 to 90% |
| Storage Humidity |
10 to 90% |
General
| Dimensions |
6.9 x 3.94 x 1" / 17.5 x 10.02 x 2.5 cm |
| Weight |
1.3 lb / 600 g |
