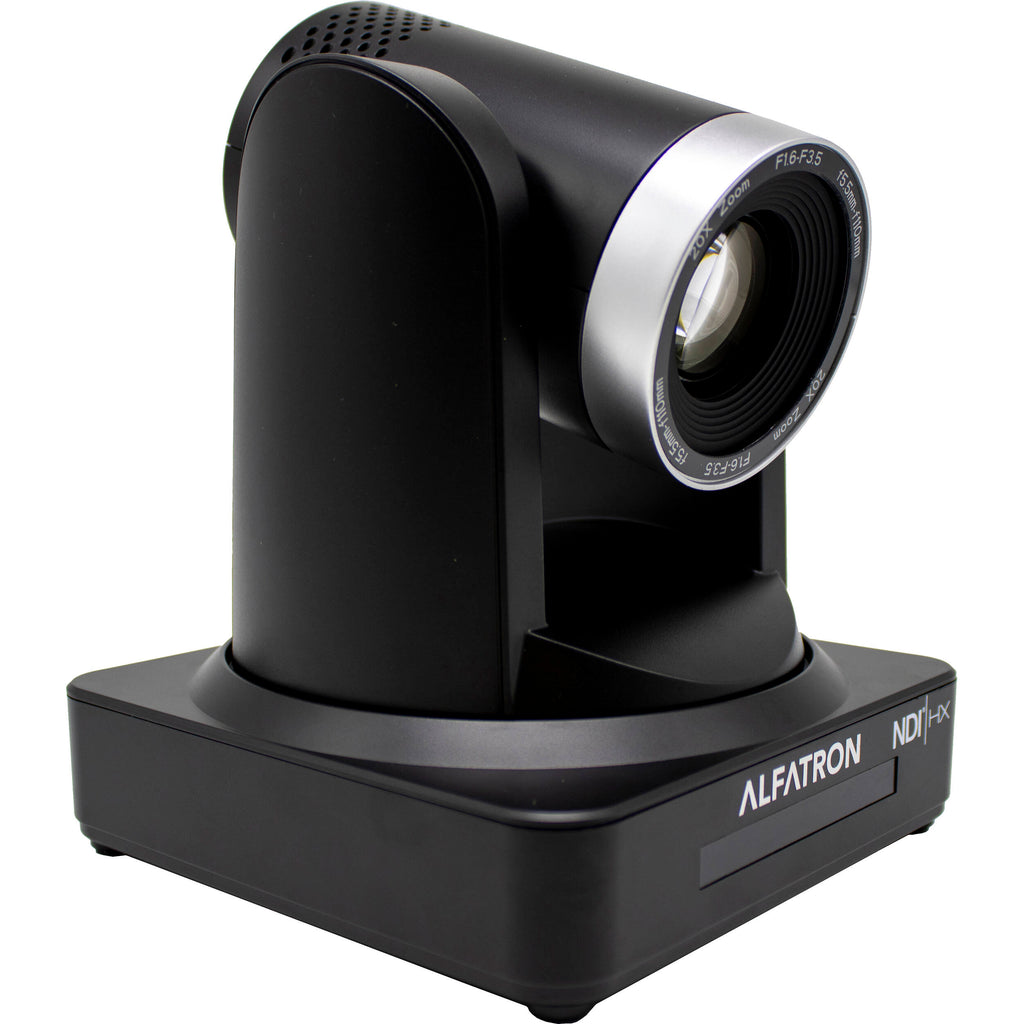

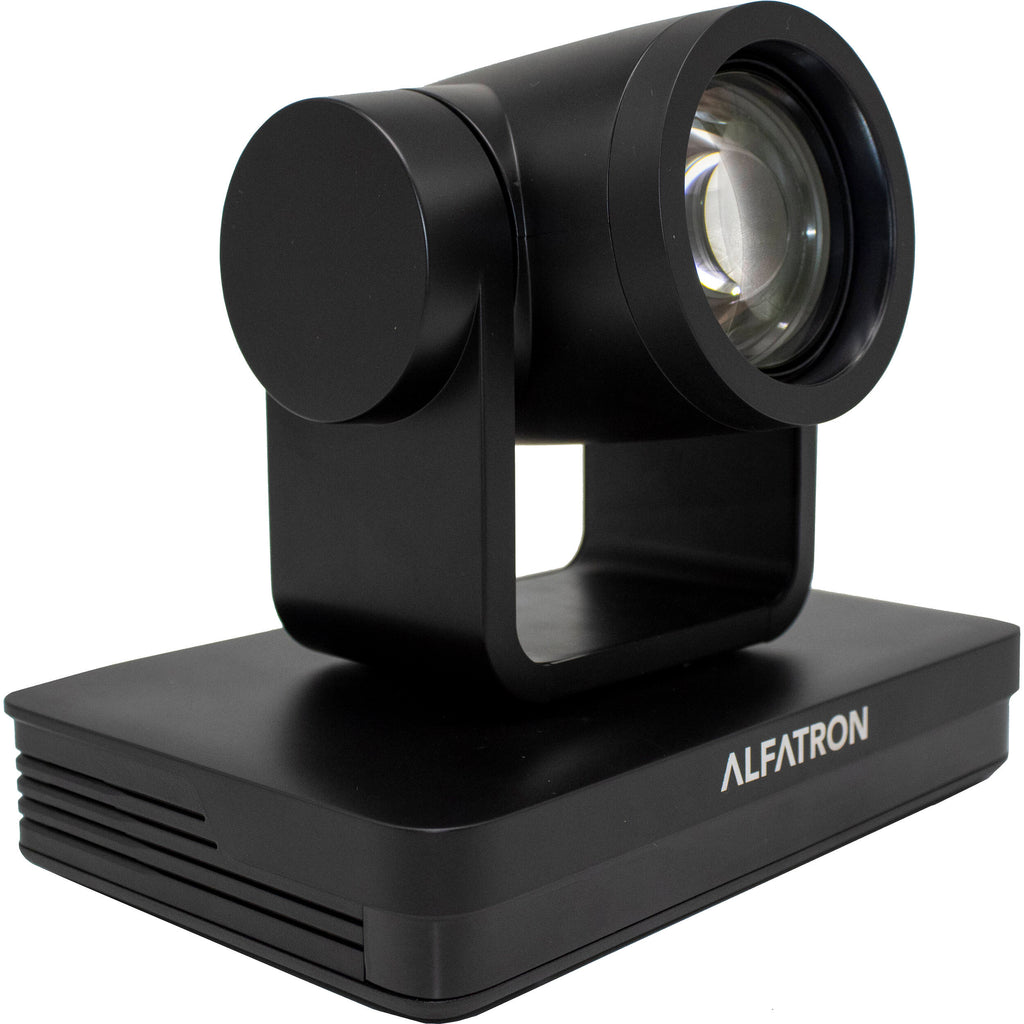

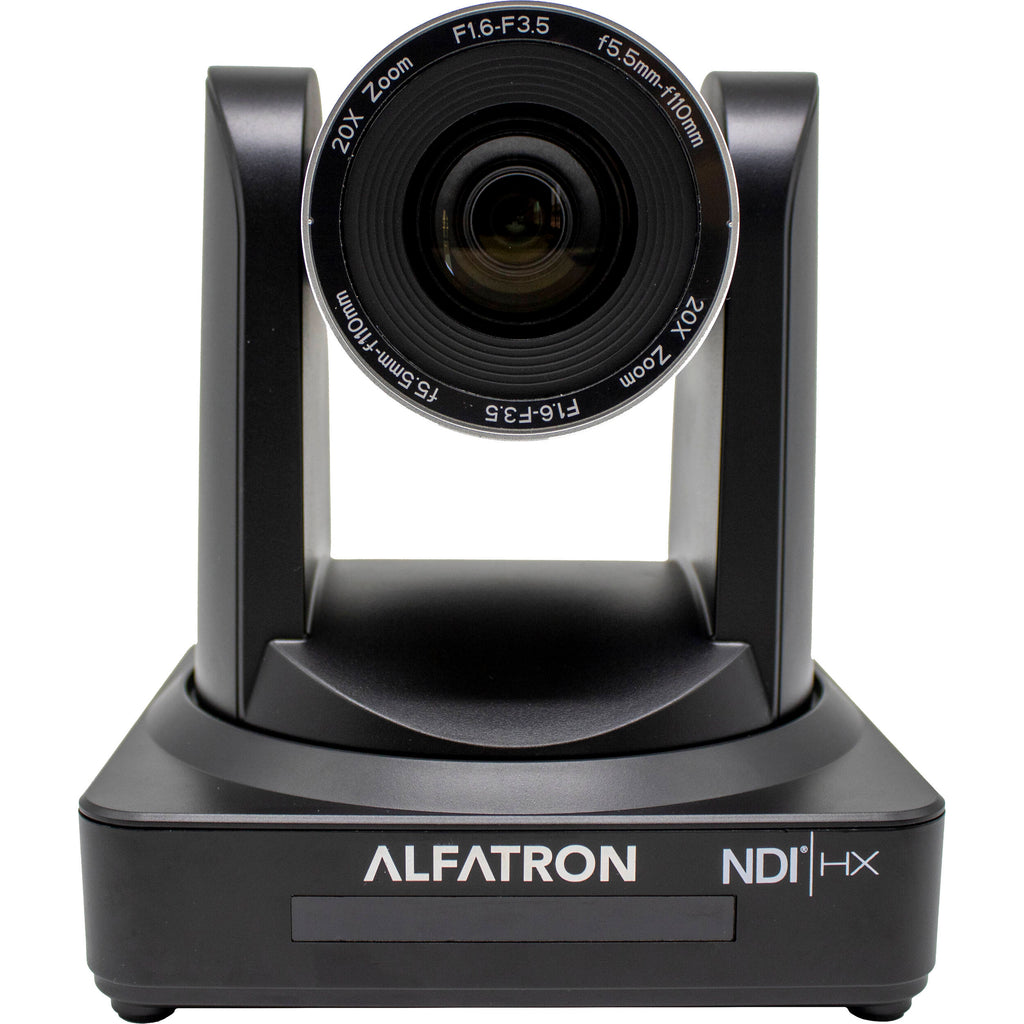

Alfatron 1080p HDMI/SDI/NDI PTZ Camera with 20x Optical Zoom

1/2.8" HD CMOS 2.07 MP Sensor

Resolution up to 1920 x 1080p60

20x Optical Zoom, 10x Digital Zoom

HDMI, SDI, NDI, LAN Video Output

Add a camera to your conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the 1080p HDMI/SDI/NDI PTZ Camera with 20x Optical Zoom from Alfatron . The PTZ camera features resolutions up to 1080p60, and a 1/2.8" HD CMOS sensor. The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with the 10x digital zoom. The camera offers multiple video output options including HDMI, 3G-SDI, RJ45 Ethernet RTSP streaming, and NDI streaming.

In addition to HDMI and SDI output up to 1080p60, the camera will fit seamlessly into your NDI network and communicate with other NDI applications and hardware. With 255 programmable preset positions and 10 presets on the included IR remote, you can set the camera to rapidly move between positions using the IP, RS-232, RS-422/RS-485, or IR control with separately available controllers. The camera compresses using MJPEG, H.264, or H.265, and you can transmit up to two streams at the same time using RTSP or RTMP protocols. The camera supports external audio input via a 3.5mm stereo line-level jack, and you can mount the camera via the included wall mount or separately available ceiling mounts.

20x Optical Zoom, 10x Digital Zoom HDMI, 3G-SDI, RJ45 LAN, NDI video output 3.5mm stereo audio input; AAC, MP3, G711A embedded format support Communicates with other NDI network software and devices H.264/H.265/MJPEG compression over RJ45 Ethernet with dual stream support Multiple Network Protocols: RTSP, RTMP, ONVIF, VISCA protocols and support, easy to link to a streaming media server VISCA, Pelco-P, Pelco-D serial support over RS-232 or RS-422/RS-485 UPC: 781159724862

Image Sensor	1-Chip 1/2.8" CMOS Sensor
Sensor Resolution	1920 x 1080 (2.07 MP)
Signal-to-Noise Ratio	55 dB
Minimum Illumination	0.5 Lux
White Balance Range	3000 to 6500K

Max Digital Zoom	10x
Built-In Speaker	No
Flip / Mirror Support	Image Flip, Mirror (Vertical)

Optical Zoom Ratio	20x
Focal Length	5.5 to 110mm
Field of View	Horizontal: 54.7 to 3.3°
Maximum Aperture	f/1.6 to 3.5
Focus Control	Autofocus Manual Focus

Output Formats	SDI, HDMI, RJ45: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps
Embedded Audio	HDMI: 2-Channel SDI: 2-Channel
IP Streaming	H.264, H.265, RTMP, RTSP: 1080p

Recording Modes

Not Specified by Manufacturer

Presets	255 via IR, RS-232, VISCA
Move Speed	Pan: 0.1 to 60°/sec Tilt: 0.1 to 30°/sec
Movement Range	Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°)
Supported Control Protocols	IP IR Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA

Video Output Connectors	1 x BNC (3G-SDI) Female 1 x HDMI Type A Female 1 x RJ45 (NDI) Female
Audio I/O	1 x 1/8" / 3.5 mm Stereo Line Level Input
Control Interface	1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output 1 x RJ45 (LAN) Input
Other I/O	1 x 2-Pin Euroblock (RS-422, RS-485) Input/Output

PoE Support	None
Power Connectors	1 x Barrel / Coaxial (12 VDC at 1 A)
Power Consumption	Power Supply: 12 VDC at 1.5 A Device: 12 VDC at 1 A (12 W)

Operating Temperature	14 to 122°F / -10 to 50°C
Storage Temperature	14 to 140°F / -10 to 60°C
Operating Humidity	20 to 80%
Storage Humidity	20 to 95%

Dimensions	0.66 x 0.6 x 0.6" / 16.75 x 15 x 15 mm
Weight	49.38 oz / 1.4 kg

Package Weight	6.305 lb
Box Dimensions (LxWxH)	14.3 x 10 x 8.9"
