Description

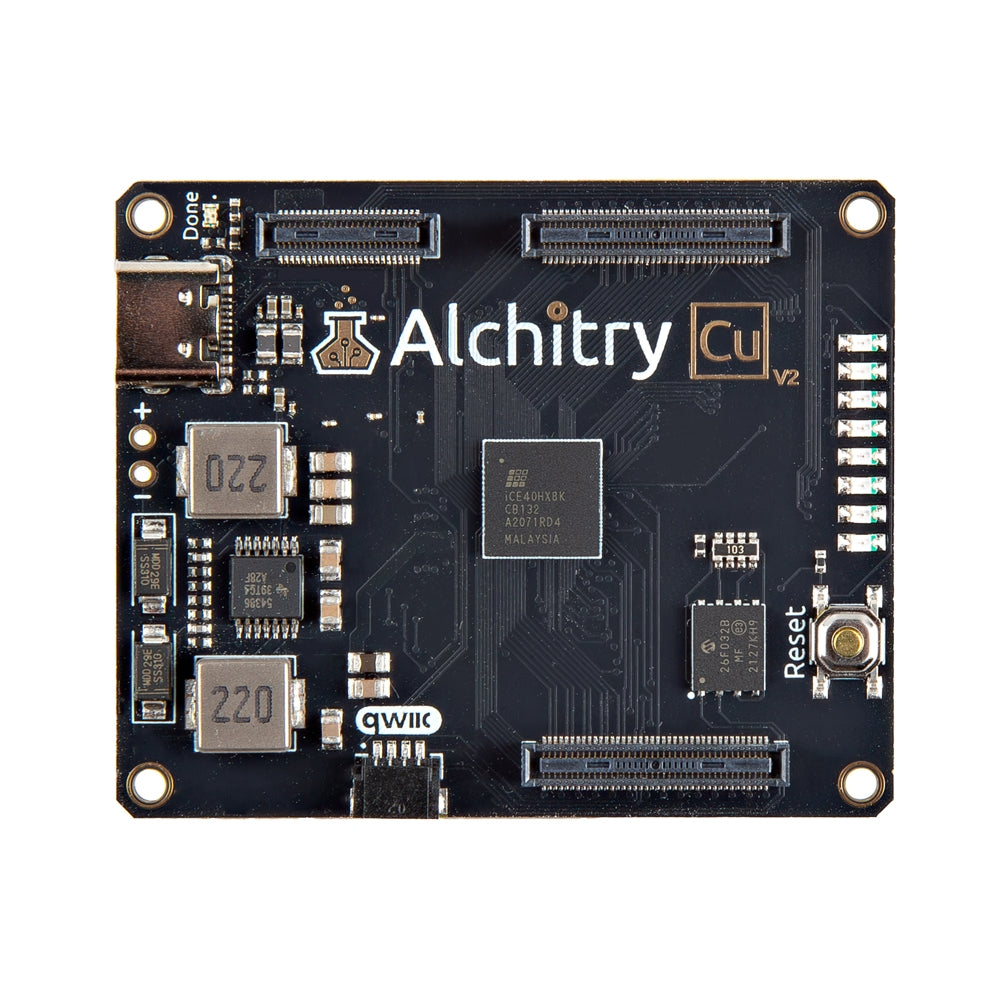

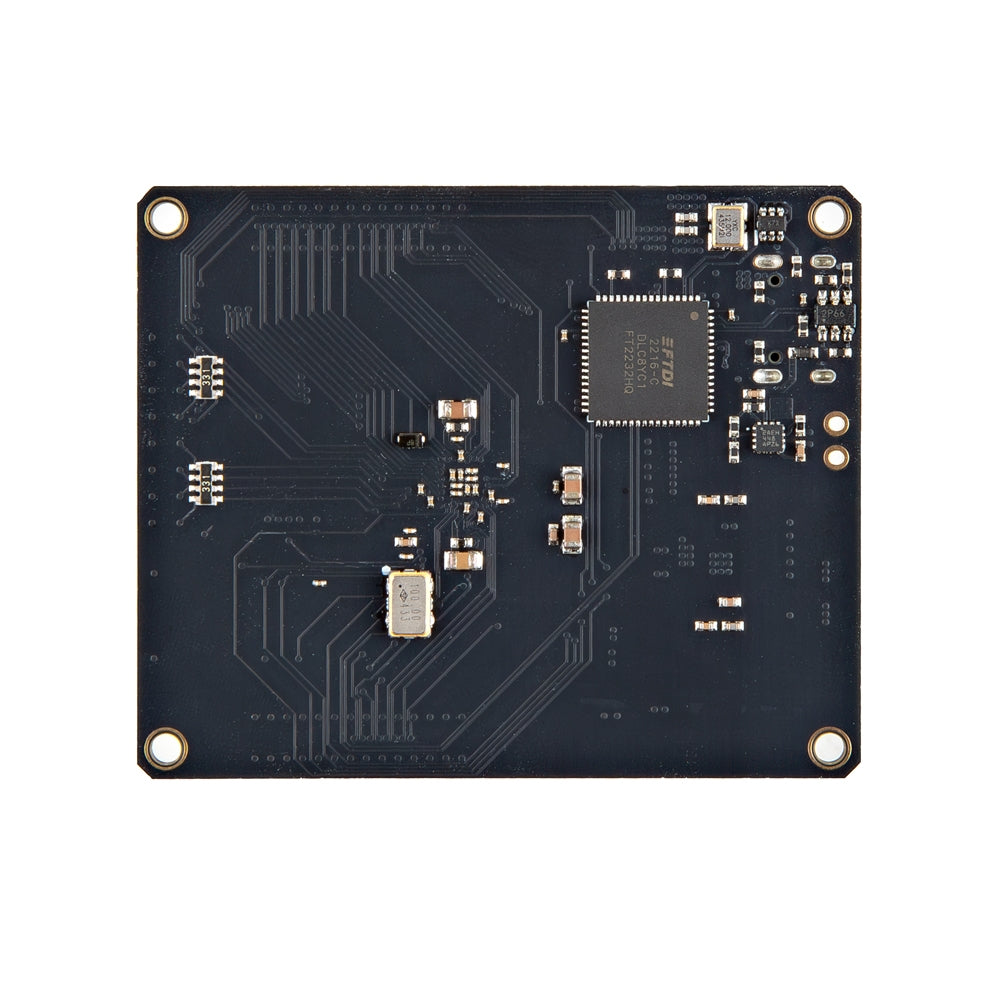

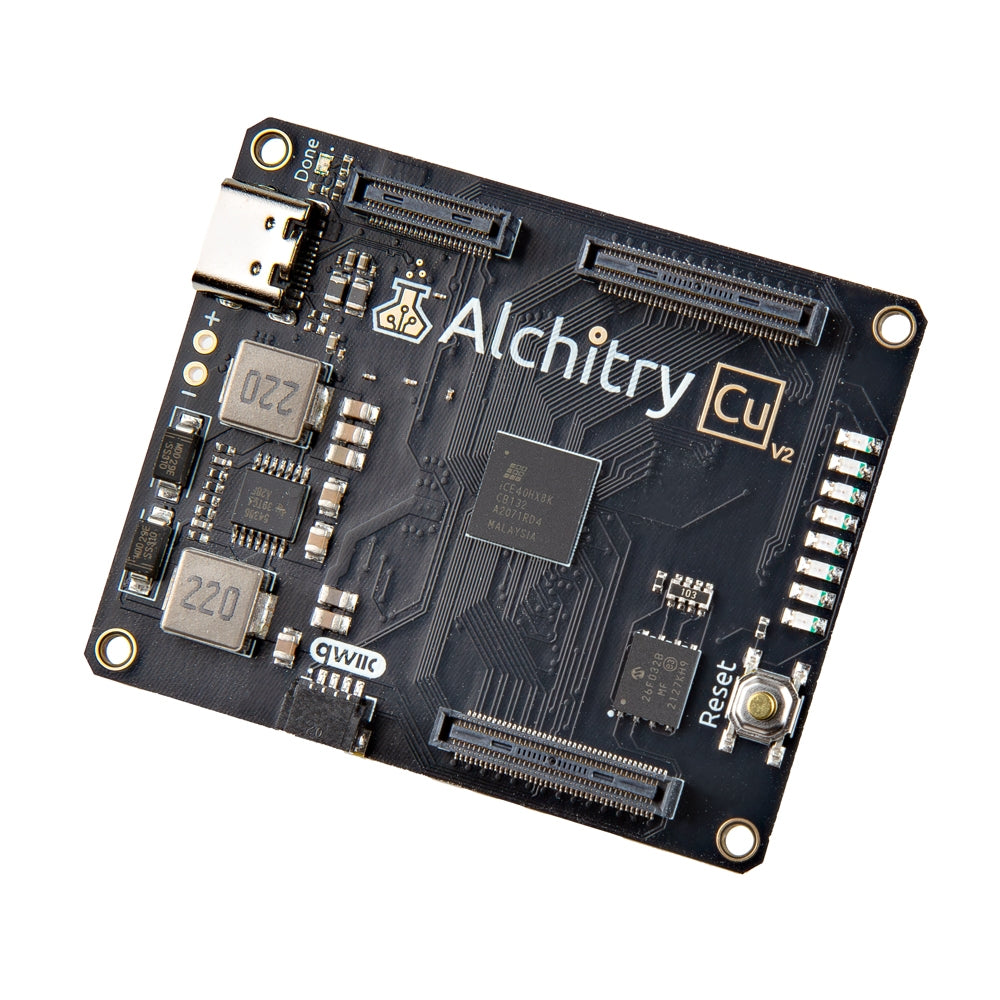

If you don't need a lot of power to start your FPGA adventure, or are looking for a more economical option, the Alchitry Cu V2 is the perfect option, especially if you like the Lattice iCE40 HX!
Features & Specs
- Lattice iCE40-HX8K FPGA - 7680 logic elements
- 79 IO pins (3.3V logic level)
- USB-C to configure and power the board
- Eight general purpose LEDs
- One button (typically used as a reset)
- 100MHz on-board clock (can be multiplied internally by the FPGA)
- Powered with 5V through USB-C port, 0.1" holes, or headers
- USB to serial interface for data transfer (up to 12Mbaud)
- Qwiic Connector

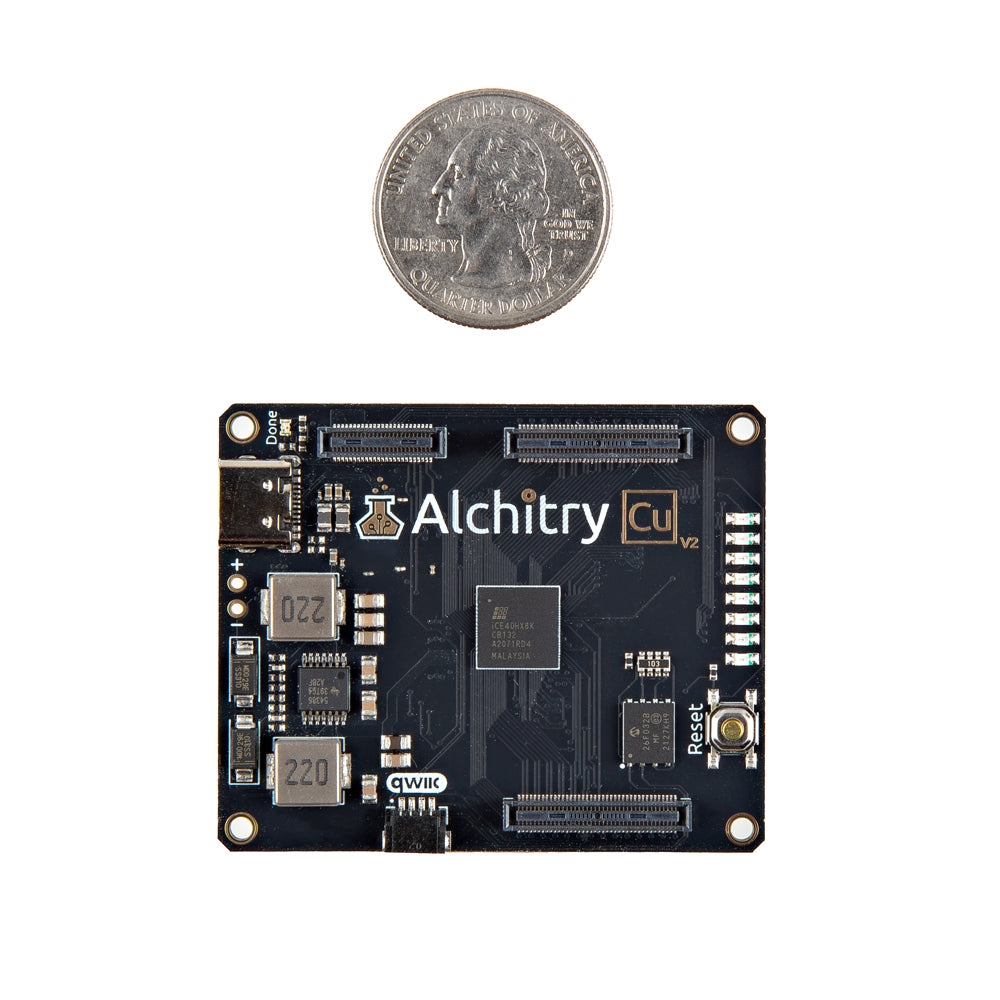

- Dimensions of 65mm x 45mm
Features & Specs
- Lattice iCE40-HX8K FPGA - 7680 logic elements
- 79 IO pins (3.3V logic level)
- USB-C to configure and power the board
- Eight general purpose LEDs
- One button (typically used as a reset)
- 100MHz on-board clock (can be multiplied internally by the FPGA)
- Powered with 5V through USB-C port, 0.1" holes, or headers
- USB to serial interface for data transfer (up to 12Mbaud)
- Qwiic Connector
- Dimensions of 65mm x 45mm
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9261.0 |
| 3-5 | ₹ 9166.5 |
| 5-10 | ₹ 8977.5 |
| 10+ | ₹ 8788.5 |
Bulk discount will be automatically applied during checkout based on quantity.
