Aladdin Bi-Fabric 4 Overview
- 1 Description
- 2 Aladdin BI-FABRIC4 Bi-Color Flexible LED Panel
- 3 Aladdin Pouch for BI-FLEX4 LED Panel (Black)
- 4 Aladdin Soft Bag4 for BI-FLEX4 Light Kit
- 5 Aladdin Dimmer20 with V-Mount Battery Plate
- 6 Aladdin AC Power Supply
- 7 Aladdin Metal Frame with 5/8" Stud
- 8 Aladdin Universal Extension Cable (16')
- 9 Aladdin Diffuser for Frame

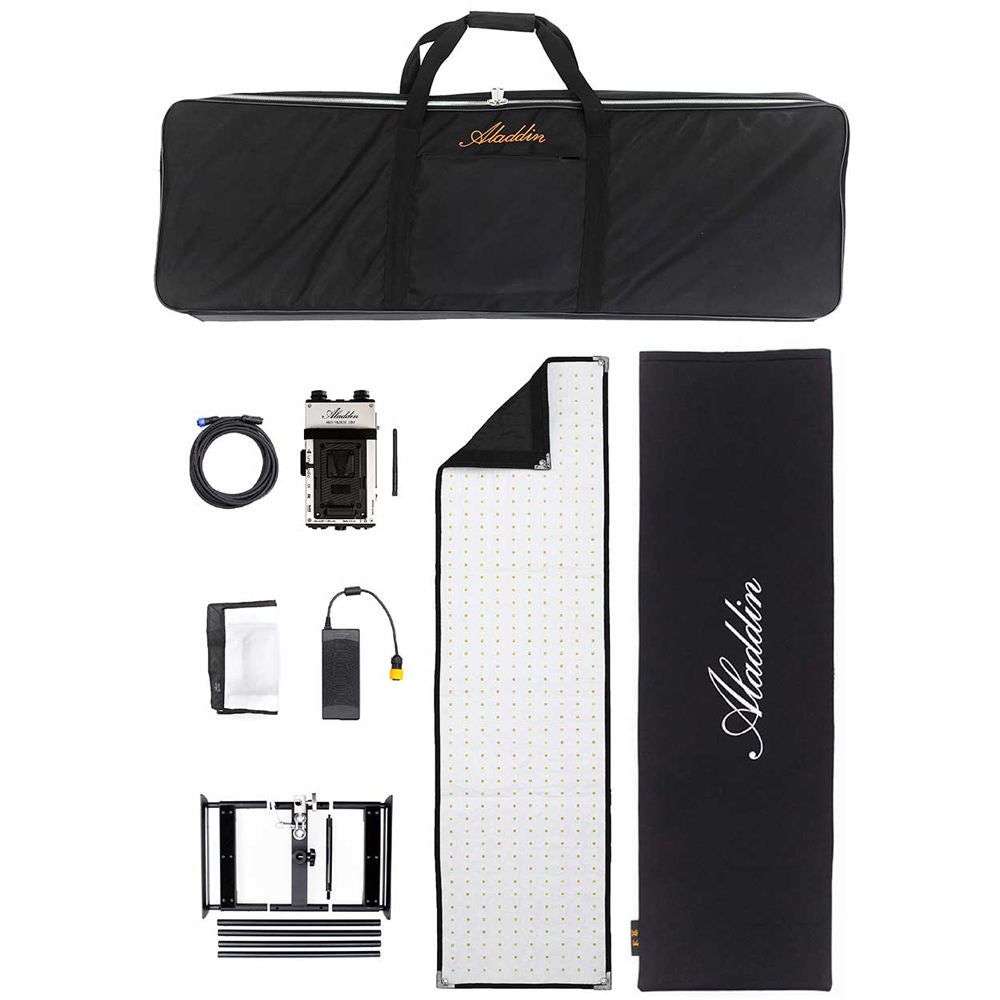

Aladdin has put together this BI-FABRIC4 System with Case and V-Mount Battery Plate to give the image maker everything he or she will need to get up and running with this unique light source. The system includes the 12 x 48" BI-FABRIC4 LED panel with a pouch, a dimmer with V-mount battery plate that supports both wired and wireless DMX via DMX512 protocol or LumenRadio, and an antenna. Also included are a metal frame with a 5/8" stud, diffuser, an AC adapter, a 16.4' extension cable, and a kit bag.
Aladdin BI-FABRIC4 Bi-Color Flexible LED Panel
If you've ever wished you could bend your framed LED panel into a shape that conforms to your subject matter, or maybe you need a large but lightweight fixture to imitate window light, the BI-FABRIC4 Bi-Color Flexible LED Panel from Aladdin is your solution. The BI-FABRIC4 is flexible; bend the 12 x 48" mat into a U-shape for wraparound lighting, into a cylinder for rim lighting or long, elegant highlights on glassware or other reflective objects. Its light weight, negligible heat, and thickness of a fraction of an inch mean you can squeeze it into tight places or use it up close to the subject without fear of discomfort or damage.
The BI-FABRIC4 is also functionally flexible. Color temperature is variable from 2900 to 6200K and it's dimmable from 1 to 100%. The BI-FABRIC4 requires a dimmer and power supply, but it has flexible power needs. It's ready for worldwide use via a separately purchased 100 to 240 VAC universal adapter, but it will also run on optional V-mount or Gold mount batteries when AC power is unavailable. The panel has male touch fasteners and mounting rings at each corner for flush mounting on a flat surface, and at just two pounds you can even tape it to walls or ceilings.
Bi-Color LED
The BI-FABRIC4 is a flexible bi-color LED panel with impressive light quality and a CRI/TLCI rating of 97/98. An ideal choice for cinematographers, the panel is a small, lightweight, and powerful lighting tool for various applications such as portable interview lighting or hiding in narrow spaces like elevators and cars, or even squeezed inside objects for product photography.
Small and Lightweight
Measuring 12 x 48" and just a fraction-of-an-inch thick, the BI-FABRIC4 runs on an optional AC adapter or a separately purchased battery. Each corner has a male touch fastener, allowing you to put it to uses such as upgrading your old halogen softbox to LED or mounting it on the wall or ceiling with female touch fasteners. There are also rings for nailing or screwing it down.
Aladdin Pouch for BI-FLEX4 LED Panel (Black)
Store your BI-FLEX4 LED Panel Light in the black Aladdin Pouch .
Aladdin Soft Bag4 for BI-FLEX4 Light Kit
The padded Soft Bag4 for BI-FLEX4 Kit from Aladdin is made of rugged fabric, has zippered closure, a touch-fastening joining handle, and an adjustable shoulder strap. The 49 x 15 x 5.5" case has room for a 48 x 12" BI-FLEX4 LED panel, an AC power supply, dimmer unit with battery plate and DMX, metal frame with 5/8" stud, Ball Head Stand Mount, extension cable, and a diffuser.
Aladdin Dimmer20 with V-Mount Battery Plate
The Dimmer20 with V-Mount Battery Plate from Aladdin combines controls and a power source for the fixture. The Dimmer20 controls light intensity from 0.5 to 100% and is rated for 200W of output power. Settings are visible on the unit's large 5.0 x 2.5" OLED display. The dimmer supports both wired and wireless DMX via DMX512 protocol or LumenRadio. The Dimmer20 can run on AC power via a separately purchased adapter or on optional 26V batteries via its V-mount battery plate. It is compatible with Fabric-Lite 200W, Bi-Flex2/4, and Bi-Fabric2 lights.
Aladdin AC Power Supply
This Aladdin AC Power Supply provides 100 to 240 VAC mains current to power Fabric-Lite 200W, Fabric-Lite 350W, Bi-Flex4, and Bi-Fabric4 lights.
Aladdin Metal Frame with 5/8" Stud
This Aladdin Metal Frame with 5/8" Stud is compatible with Bi-Flex4 and Bi-Fabric4 lights.
Aladdin Universal Extension Cable (16')
The Aladdin 16' Universal Extension Cable connects flexible LED mats to their AC power supplies. It is compatible with Bi-Flex2, Bi-Flex4, Bi-Fabric2, Bi-Fabric4, and Fabric-Lite 200W LED lights.
Aladdin Diffuser for Frame
This Aladdin Diffuser for Frame is designed for the Bi-Flex4 and Bi-Fabric4 diffuser frame.
Table of Contents
- Description
- Aladdin BI-FABRIC4 Bi-Color Flexible LED Panel
- Aladdin Pouch for BI-FLEX4 LED Panel (Black)
- Aladdin Soft Bag4 for BI-FLEX4 Light Kit
- Aladdin Dimmer20 with V-Mount Battery Plate
- Aladdin AC Power Supply
- Aladdin Metal Frame with 5/8" Stud
- Aladdin Universal Extension Cable (16')
- Aladdin Diffuser for Frame
Aladdin BI-FABRIC4 Bi-Color Flexible LED Panel Specs
Light Fixture
| Beam Angle | 140° |
| Color Temperature | 2900 to 6200K |
| Color Accuracy Standard | CRI 97
TLCI 98 |
| Cooling System | Passive |
| Dimming | Yes, 1 to 100% |
| Photometrics | 557.4 fc / 6000 lux at 3.28' / 1 m |
| Fixture Dimensions | 12.0 x 48.0" / 30.5 x 121.9 cm |
| Fixture Weight | 1.98 lb / 900 g |
Mounting
| Fixture Mount | None |
| Mount via Included Adapter | 5/8" Receiver |
Power
| AC Input Power | 90 to 240 VAC, 50 / 60 Hz |
| Power Source | AC Adapter, External Battery |
| Max Power Consumption | 200 W |
Aladdin Pouch for BI-FLEX4 LED Panel (Black) Specs
General
| Compatibility | For BI-FLEX4 LED Panel Light |
Aladdin Soft Bag4 for BI-FLEX4 Light Kit Specs
Exterior
| Closure Type | Zipper |
| Carry and Transport Options | Handle
Shoulder Strap |
| Material of Construction | Fabric |
| Exterior Dimensions (W x H x D) | 49 x 15 x 5.5" / 124.5 x 38 x 14 cm |
Aladdin Dimmer20 with V-Mount Battery Plate Specs
Connections
| DMX | 1 x 5-Pin XLR |
| Wireless Support | ArtNet |
Power
| Dimming | 0.5 to 100% |
| Maximum Wattage | 200 W |
General
| Battery Mount | V-Mount |
| Display Type | OLED |
| Dimensions | 7.9 x 4 x 2.4" / 200 x 110 x 62 mm |
Aladdin AC Power Supply Specs
Electrical
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Packaging Info
| Package Weight | 1.99 lb |
| Box Dimensions (LxWxH) | 8.3 x 3.75 x 3.6" |
Aladdin Metal Frame with 5/8" Stud Specs
| Dimensions | Stud: 5/8" / 16 mm |
Packaging Info
| Package Weight | 6.29 lb |
| Box Dimensions (LxWxH) | 19.3 x 7.1 x 5.7" |
Aladdin Universal Extension Cable (16') Specs
Packaging Info
| Package Weight | 0.775 lb |
| Box Dimensions (LxWxH) | 10 x 7.75 x 2.4" |
Aladdin Diffuser for Frame Specs
Packaging Info
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 6.3 x 3.7 x 0.7" |
