Description

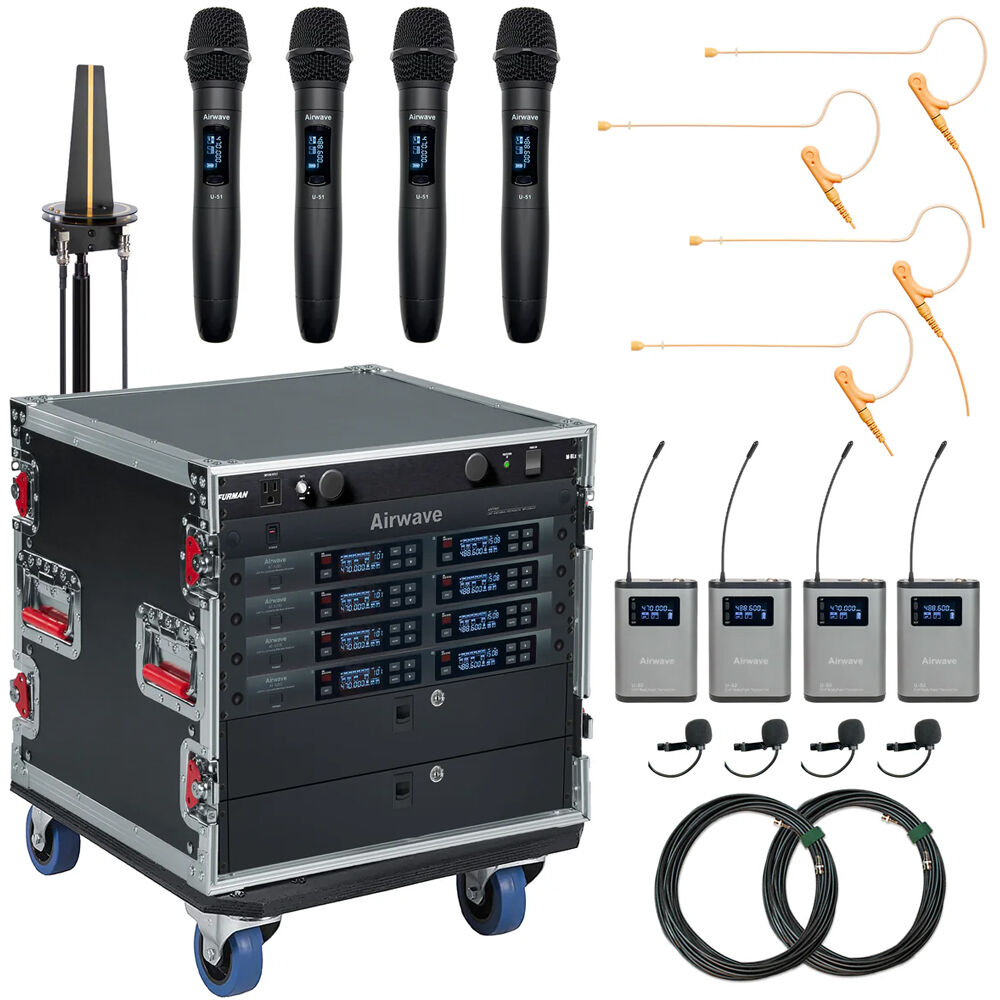

Airwave Technologies AT-SYS-8 Overview
The Airwave Technologies AT-SYS-8-COMBO is a 5th-generation, 8-channel wireless microphone system designed for professional audio applications in high-demand environments such as live events, houses of worship, conferences, performances, and rental services. With four lightweight handheld microphone/transmitters, each equipped with a directional microphone capsule, four lightweight bodypack transmitters, each equipped with a single-ear headset mic and a lavalier mic, and four dual-channel receivers, the system offers a comprehensive, ?all-in-one? turnkey solution for delivering reliable, crystal-clear digital audio for eight presenters, meeting participants, or performers.
Securely housed in a rugged 10 RU rolling flight case, every component is protected for safe transport and quick, hassle-free setup. Designed for mobility and built for performance, this portable system offers unmatched convenience without sacrificing professional-grade performance.

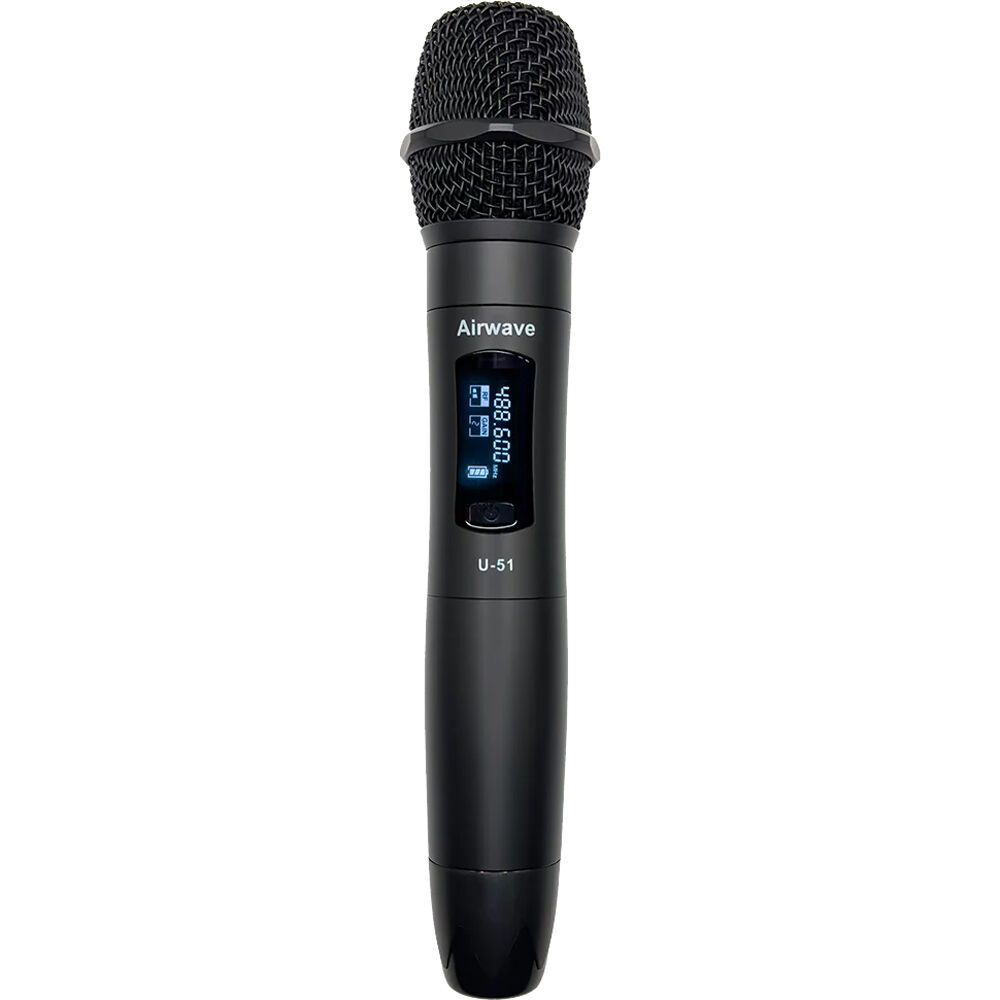

Four U-51 Handheld Microphone/Transmitters
- The U-51 handheld microphone/transmitters combine a lightweight, ergonomic design with user-friendly functionality. Each unit features a clear LCD screen that displays key operational information at a glance.
- Engineered specifically for speech and vocal performance, the U-51 capsule utilizes a directional pickup pattern that focuses on the speaker?s voice while minimizing background noise. This helps reduce the risk of feedback, even on loud or acoustically challenging stages.
- Each transmitter runs for up to 8 hours on two AA batteries and offers selectable RF output power levels (2, 10, or 30mW), allowing for reliable performance, even in difficult RF environments. The wireless range extends up to 328', providing flexibility for larger venues.
- For added convenience, the power switch doubles as a mute function, and the microphone capsule is user-replaceable, allowing for easy maintenance or future upgrades.

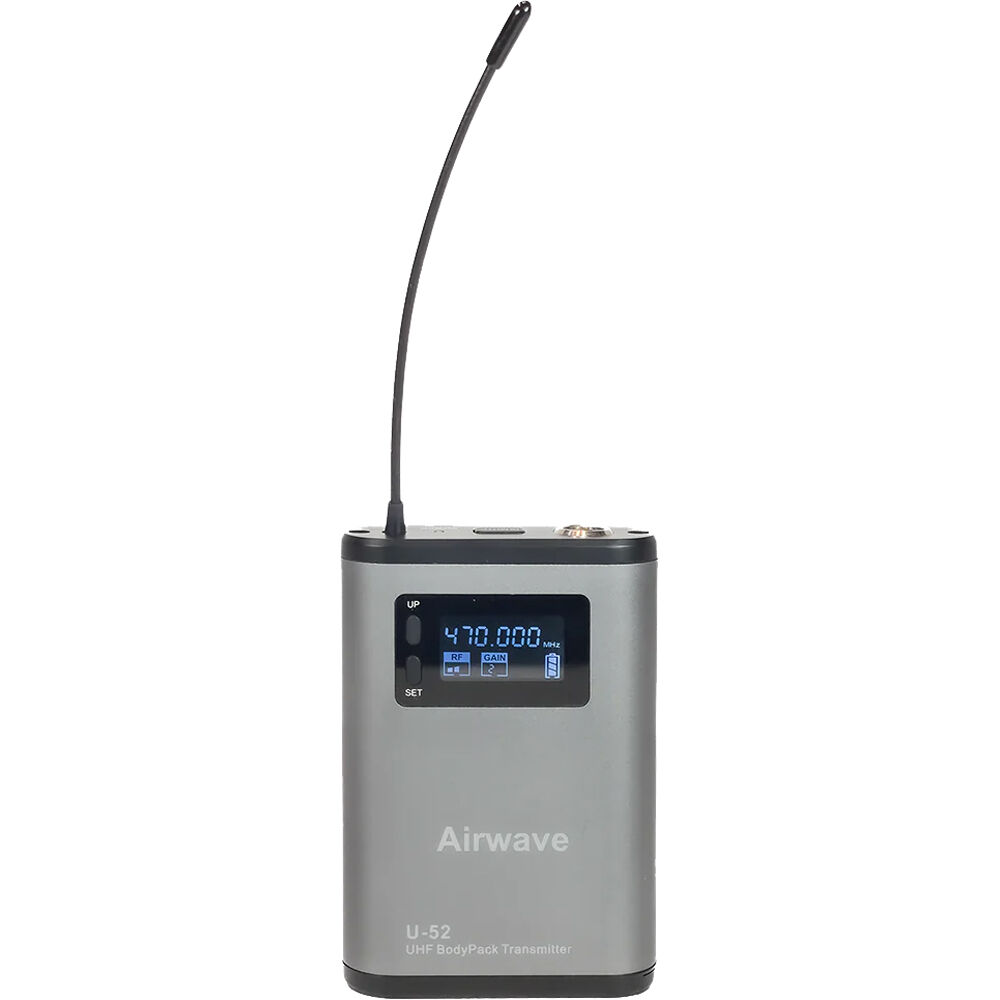

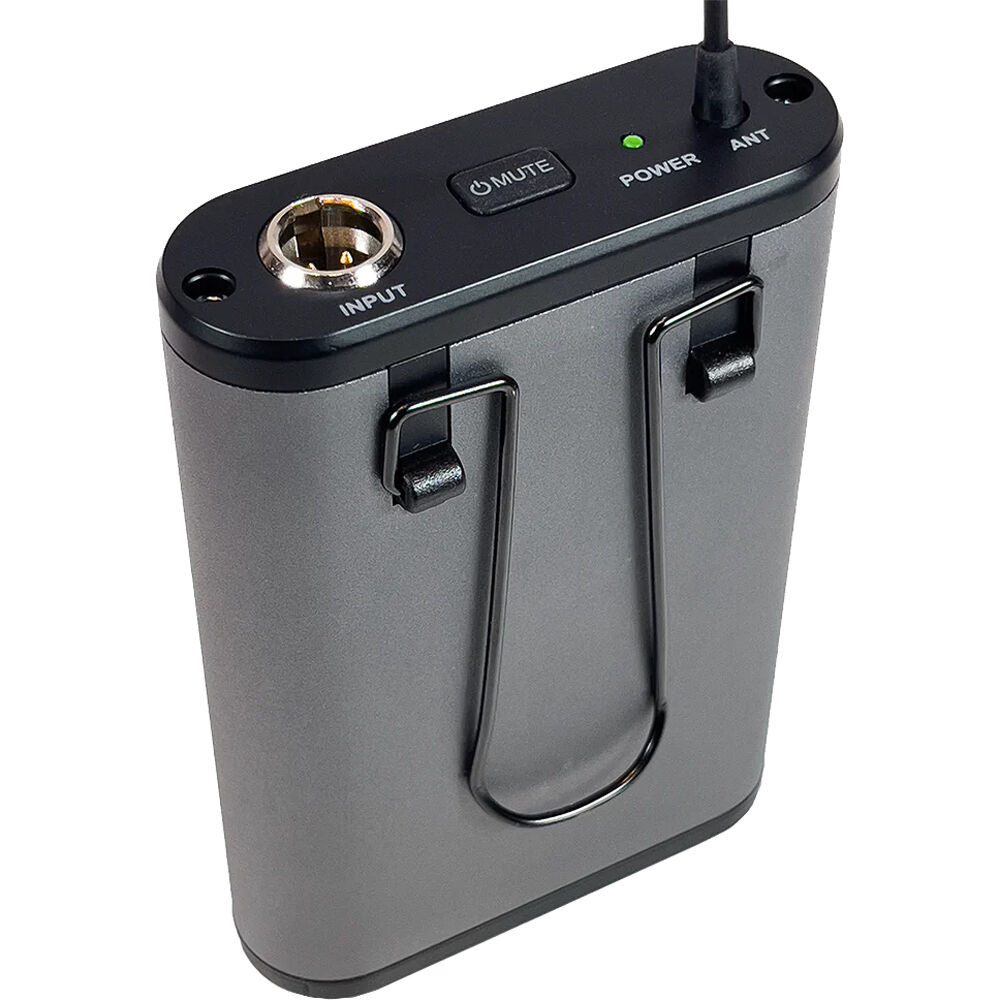

Four U-52 Bodypack Transmitters with Headset and Lav Mics for Hands-Free Presentations
- The U-52 bodypack transmitters combine a lightweight, ergonomic design with user-friendly functionality. Each unit features a clear LCD screen that displays key operational information at a glance.
- Each bodypack transmitter comes with a single-ear headset mic and a lavalier microphone, providing hands-free speech for four performers or presenters.
- Each transmitter runs for up to 10 hours on two AA batteries and offers selectable RF output power levels (2, 10, or 30mW), allowing for reliable performance, even in difficult RF environments. The wireless range extends up to 328', providing flexibility for larger venues.
- For added convenience, the power switch doubles as a mute function.

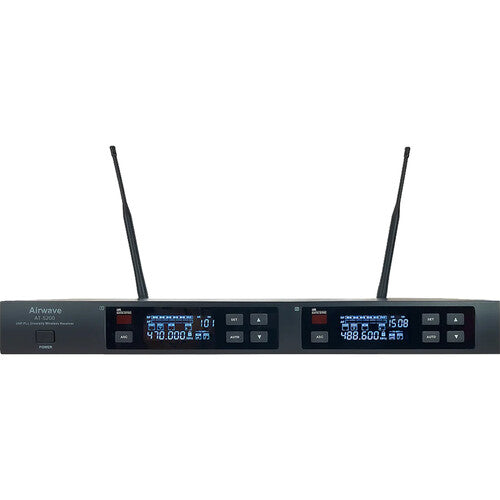

Four AT-5200 Dual-Channel Wireless Microphone Receivers
- The four AT-5200s are professional-grade, dual-channel wireless receiver housed in rackmount chassis. Each receiver features two independent LCD displays showing RF signal strength, battery status, and audio output levels.
- Each channel offers 63 dB of gain control, along with individual balanced XLR outputs. A mixed-channel output is also available via both XLR and 1/4" connectors.
- Equipped with an automatic frequency scan function, the AT-5200 scans 144 frequencies to locate and lock onto the clearest available channels. Synchronizing the receiver with the handheld transmitters is quick and seamless via infrared pairing.
Comprehensive Rackmount System

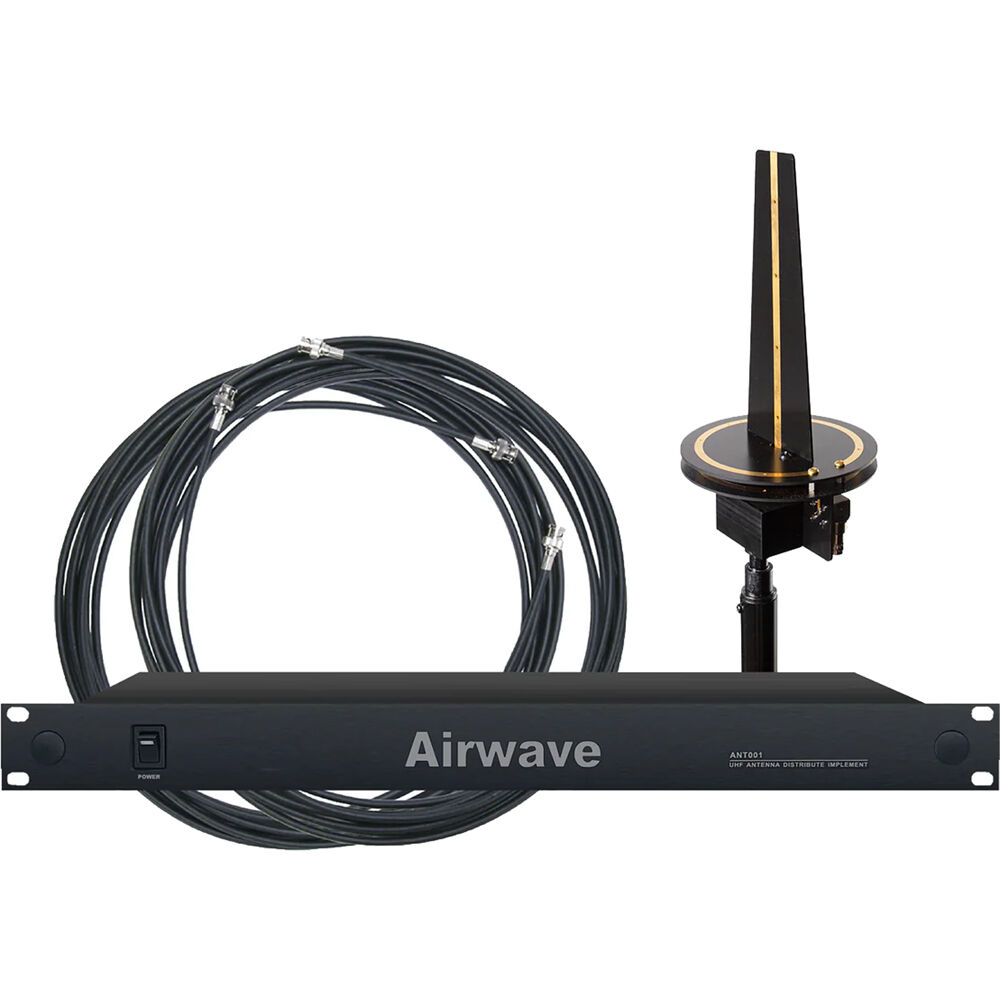

- The system is housed in a 10 RU rolling flight case with casters, including a Furman M-8Lx power conditioner with lights, ANT-001 rackmount antenna distro, RF Venue Diversity Omni antenna, two band-pass filters, two 25' antenna cables, four wireless microphone clips, and two 2 RU rack drawers with diced foam.
UPC: 185865000843
- Airwave Technologies AT-SYS-8-COMBO 8-Person Digital Wireless Combo Microphone System (A: 470 to 489 MHz / B: 514 to 542 MHz)
- 4 x AT-U51 Handheld Microphone/Transmitter
- 4 x AT-U52 Bodypack Transmitter
- 4 x HSD-SLIMLINE+SE Single-Ear Headset Microphone
- 4 x AT-LAV-2 Lavalier Microphone
- 4 x AT-5200 Dual-Channel Wireless Receiver
- ANT-001 Rack Mount Antenna Distro
- RF Venue Diversity Omni Antenna
- 2 x Band-Pass Filter
- Furman M-8Lx Power Conditioner with Lights
- 8 x Receiver Antenna
- 2 x Antenna Cable (25')
- 4 x Microphone Clip
- 16 x AA Battery
- 4 x AC Power Adapter
- 4 x Antenna Front-Mount Kit (Cables, BNC Connectors)
- 16 x Rack Ears with Screws
- Flight Rack with Casters (10 RU)
- 2 x Rack Drawer with Diced Foam (2 RU)
- Limited 1-Year Manufacturer Warranty
-
XLR CablesEssential
Airwave Technologies AT-SYS-8 Specs
Key Specs
| Wireless Technology |
Analog UHF
|
| Diversity |
Non-Diversity
|
| Max Operating Range |
328' / 100 m
|
| Receiver Type |
1x Rackmount (19")
|
| Number of Audio Channels |
2
|
| Included Transmitters |
4x Handheld
4x Bodypack |
| Microphone Type |
4x Headset
4x Lavalier 4x Handheld |
| Included Charging Case |
No
|
System
| Wireless Technology |
Analog UHF
|
| Diversity |
Non-Diversity
|
| RF Frequency Band |
470 to 489 MHz
514 to 542 MHz |
| Number of RF Channel Frequencies |
144
|
| Max Operating Range |
328' / 100 m
|
| Max Transmitters per Band |
1
|
| Dynamic Range |
>102 dB
|
| Encryption |
No
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
Receiver
| Receiver Type |
1x Rackmount (19")
|
| Mounting Options |
Rackmount (with Included Rack Ears, 1 U)
|
| Antenna |
2x Removable
|
| Number of Audio Channels |
2
|
| Audio I/O |
3x XLR 3-Pin Balanced Output
1x 1/4" TRS Unbalanced Output |
| Network I/O |
No
|
| USB/Lightning Connectivity |
No
|
| Gain Range |
0 to +63 dB
|
| Frequency Response |
50 Hz to 15 kHz
|
| Display |
LCD (Non-Backlit)
|
| Power Requirements |
AC/DC Power Adapter
|
Transmitters
| Included Transmitters |
4x Handheld
4x Bodypack |
| RF Output Power |
2 / 10 / 30 mW Selectable
|
| Antenna |
Internal (Handheld)
Fixed (Bodypack) |
| Input Level |
Microphone
|
| Audio I/O |
1x TA3M/Mini-XLR 3-Pin Male Input
|
| Bias/Plug-In & Phantom Power |
5 V Bias/Plug-In Power
No Phantom Support |
| USB I/O |
No
|
| Muting |
Off/On Switch
|
| Gain Range |
-9 to 0 dB (Handheld)
-9 to 0 dB (Bodypack) |
| Auto-Level/Gain |
No
|
| Frequency Response |
50 Hz to 15 kHz
|
| Sync Method |
IR
|
| Display |
LCD (Non-Backlit)
|
Microphones
| Microphone Type |
4x Headset
4x Lavalier 4x Handheld |
| Polar Pattern |
Omnidirectional (Headset)
Unidirectional (Handheld) |
| Frequency Response |
50 Hz to 18 kHz (Headset)
|
| Maximum SPL |
110 dB (Headset)
|
| Sensitivity |
-60 dB
|
| Output Connector |
1x TA3F/Mini-XLR 3-Pin Female (on Headset)
|
| Color |
Beige
Black |
Power
| Transmitter Battery Type |
2x AA
|
| Transmitter Battery Life |
8 Hours
|
| Included Charging Case |
No
|
Charging Case
| AC/DC Power Adapter |
12 VDC (Included)
|
Physical
