₹ 13875.0 includes GST and import duties. | |
B2B customers can avail ₹ 2115.94 ITC on this product | |
100% Secure Payments | 100% Genuine product | |
The product is eligible for Free Shipping |
Description
Aiphone MC-60/4A Overview

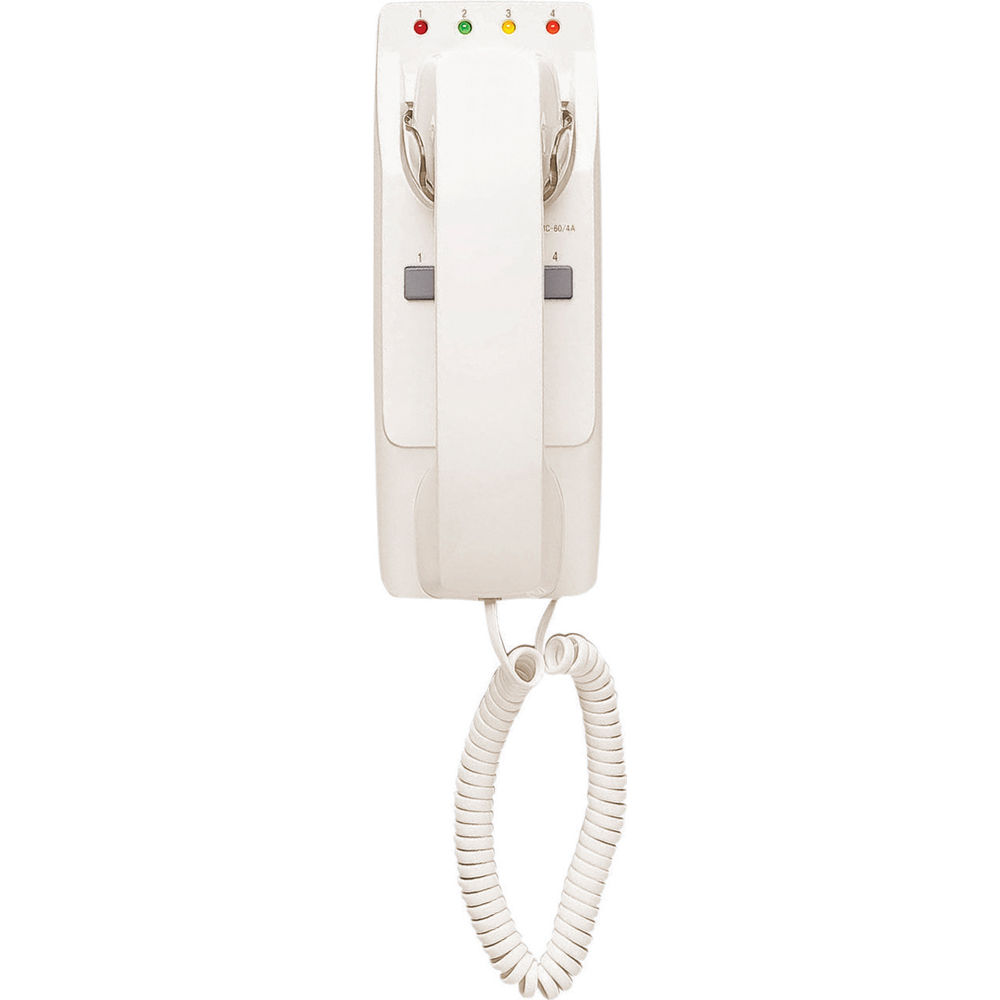

The MC-60/4A 4-Line MarketCom Wall Mountable Master Intercom Handset from Aiphone is a handset-style paging/communication system for use in marketplace applications such as retail stores, factories, and warehouses. The MarketCom system has a capacity of up to 60 stations and locates individuals quickly through paging. It features two-way communication between any stations in the system. The handset is equipped with 4 communication channels and incorporates paging and background music.
In the Box
- Aiphone MC-60/4A 4-Line MarketCom Wall Mountable Master Intercom Handset
- Mounting Hardware
- Limited 1-Year Warranty
Aiphone MC-60/4A Specs
Power Source |
24 VDC, use PS-2420UL power supply
|
Wiring |
7 wires in loop, non-twisted, low capacitance (PE insulation)
|
Distance |
Maximum Wiring Distance from MC-A/A to farthest MC-60/4 of a Block
4,000' (1,200 m) with 18 AWG wire 1,700' (500 m) with 22 AWG wire 1,000' (300 m) with 24 AWG wire |
Consumption |
Maximum 70 mA (in paging mode)
|
Call Signaling |
By paging
|
Communication |
Enters each channel after pressing a channel selector button
|
Talk Path |
4-channels
|
Capacity |
Maximum 60 stations (in 6 blocks each with 10 MC-60/4 stations maximum per block)
|
Dimensions |
9.2 x 3.5 x 3.5 (233.6 x 88.9 x 88.9 mm)
|
Weight |
1.06 lb (0.40 kg) approximately
|
Package Weight |
1.45 lb
|
Box Dimensions (LxWxH) |
10.6 x 4.8 x 4.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
Quantity | Price |
2 | ₹ 13597.5 |
3-5 | ₹ 13458.75 |
5-10 | ₹ 13181.25 |
10+ | ₹ 12903.75 |
Bulk discount will be automatically applied during checkout based on quantity.
