Aiphone LEM-1DLS Overview

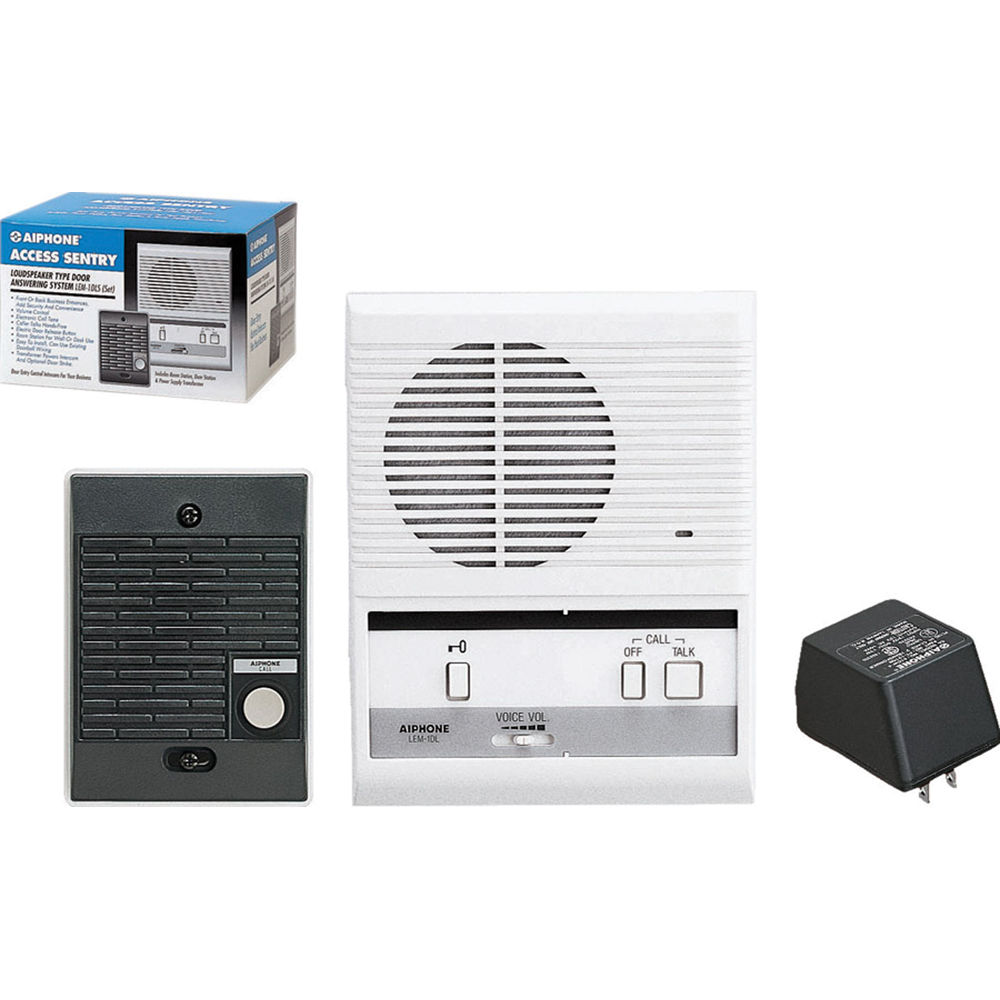

The LEM-1DLS Access Sentry Set from Aiphone is an audio door answering and door release system for business use. The set includes the LEM-1DL Master Station, LE-D Surface Mount Door Station, and PT-1210NAC Transformer that powers the system.
A call from the door station sounds a momentary electronic tone at the master station. To answer, simply press the talk button to speak to the person outside the door, and release to listen. The person at the door station speaks hands-free. A door release mechanism can be activated by pressing the door release button. The voice volume and the incoming call tone volumes can be adjusted at the master station. The door release button is designed to activate an electric strike, or can be modified in the field to work with a magnetic lock (additional equipment required, not included).
The PT-1210N 12VAC Indoor Plug-In Transformer is a class 2, compact, plug-in style power source used for intercom and door-release applications. This transformer is UL and CSA listed, and is designed for indoor use only.
The LEM-1DL 1-Call Access Sentry Master Station from Aiphone features a built-in door-release relay and can be used with the company's LE and LS Series Door Stations. This master station can be mounted to a wall or to the top of a desk for convenient access. It requires a single power supply for powering both the master station and an attached door strike unit (available separately).
The Aiphone 12VAC Plug-In Transformer is a Class 2 compact plug-in style power source for use with intercom and door-release applications. The transformer is compatible with the CCS-1A ChimeCom2 System, IE-1AD, IE-1GD, IE-2AD, IE-8MD Chime Tone Intercom Systems, LEM-1DL Access Sentry System, and EL-9S Door Strike.
In the Box
- Aiphone LEM-1DL 1-Call Access Sentry Master Station with Door Release Relay
- 2 x Screws for Mounting on a Gang Box
- 2 x Wood Screws for Mounting onto a Wall Surface
- Limited 1-Year Warranty
- Aiphone Surface Mount Door Station for LEM-1DL & LEM-1DLC Access Sentry System
- Aiphone 12VAC Plug-In Transformer
- Limited 1-Year Warranty
Aiphone LEM-1DL 1-Call Access Sentry Master Station with Door Release Relay Specs
| Compatible With |
Aiphone LE or LS Series Door Stations
|
| Power Supply |
12 to 16 VAC or 12 to 24 VDC
|
| Power Consumption |
16 VAC: 4 W maximum
24 VDC: 200 mA maximum |
| Call Signaling |
From Door to Master Station: Electronic continuous tone
From Master to Door Station: Electronic continuous tone or voice |
| Communication |
Press to talk, release to listen at master (with speech volume control)
|
| Output |
100 mW
|
| Wiring |
2 wires (non-polarized) plus 2 wires for door release
|
| Contact Capacity |
For Door Release: 30 V (AC/DC), 1 A
|
| Cable Length |
24 AWG (0.01" (0.50 mm)): 390' (119 m)
22 AWG (0.02" (0.65 mm)): 650' (198 m) 20 AWG (0.03" (0.80 mm)): 980' (299 m) 18 AWG (0.04" (1.00 mm)): 1570' (478 m) 16 AWG (0.05" (1.20 mm)): 2360' (719 m) |
| Dimensions |
7.0 x 5.5 x 2.2" (18.0 x 14.3 x 5.5 cm)
|
| Weight |
0.75 lb (0.34 kg)
|
| Package Weight |
0.95 lb
|
| Box Dimensions (LxWxH) |
7.7 x 6.2 x 2.7"
|
Aiphone 12VAC Plug-In Transformer Specs
| For Use with |
CCS-1A ChimeCom2 System
IE-1AD, IE-1GD, IE-2AD, IE-8MD Chime Tone Intercom Systems LEM-1DL Access Sentry System EL-9S Door Strike |
| Power Consumption |
15 W
|
| Power Input |
120 VAC, 60 Hz
|
| Power Output |
12 VAC, 10 V (830 mA)
|
| Wiring |
Screw terminals
|
| Dimensions |
2.88 x 1.94 x 1.69" (73.03 x 49.21 x 42.86 mm)
|
| Weight |
Not specified by manufacturer
|
| Package Weight |
0.6 lb
|
| Box Dimensions (LxWxH) |
3 x 2.6 x 2.2"
|
