Description
Aiphone LEF-3L Overview

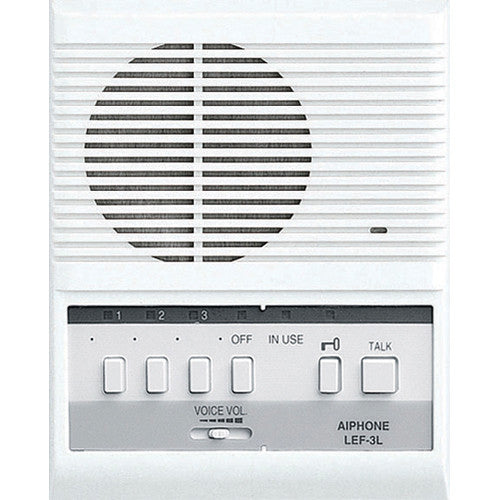

The LEF-3L 3-Call Surface Mount Master Station with Selective Control Capability from Aiphone is a compact, wall or desk mount master station that is capable of selectively releasing a door or call up a camera. It is used with any LE (except LEF-3, 5, and 10 Master Stations) or LS-series (North America only) remote station. Communication can be established with each station by selecting the corresponding channel on the master station. While the channel is selected, pressing the door-release button (left of Talk button) will release only the associated door.
When used for camera call-up, a relay closure will be maintained as long as a station is selected. The system can have up to 4 stations with any combination of master or door stations (e.g., 2 masters and 2 doors). Master-to master communication is also a standard feature. If communication between masters is not required, multiple LEF-3L's can be used to talk to up to 3 door stations.
Items Included
- Aiphone LEF-3L 3-Call Surface Mount Master Station with Selective Control Capability for Door Release or Camera Call-Up
- Limited 1-Year Warranty
Additional Resources
No additional resources available
Aiphone LEF-3L Specs
| Power Source |
12 VDC at master station
Use PS-1225, 1225UL, 1225S (2.5 A), or PS-1215 DIN (1.5 A) power supply |
| Current Consumption |
440 mA
|
| Output |
800 mW @ 20 ? (receive)
500 mW @ 20 ? (transmit) |
| Communication |
Push-to-talk, release-to-listen at master station
Hands free at sub station at responding station |
| Call Signaling |
Master to sub station by voice
Sub to master station by call tone and LED |
| Wiring |
2 common and 1 individual per sub, looped; or 3 conductors homerun from each sub station
2 conductor homerun from each sub station in a single-master system only |
| Distance |
Wiring (with 18 AWG Wire): 1,575' (480 m) between farthest door stations
780' (240 m) between master station and power supply |
| Contact |
RY-PA Rating: 110 VAC or 24 VDC, 1 A
|
| Dimensions |
7.0 x 5.6 x 2.1" (177.8 x 142.2 x 53.3 mm)
|
| Package Weight |
1.2 lb
|
| Box Dimensions (LxWxH) |
7.7 x 6.2 x 2.7"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
