Description
Aiphone JP-4HD Overview

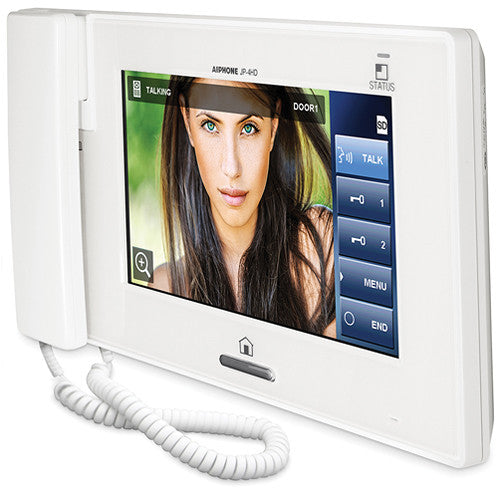

The white JP-4HD Hands-free Color Video Intercom Sub Master Station from Aiphone is used with the JP-4MED master station of the JP Series Video Intercom. A maximum of 7 sub master stations can be used in the JP Series. The JP-4HD offers a 7� color touchscreen LCD and allows for handset (duplex) and hands-free (VOX) communication. This unit is equipped with a door release button for the user to allow visitor entry. The JP-4HD is also equipped with PTZ and brightness controls, giving the user control of the door station camera angle and camera lighting for better visibility. The JP-4HD connects to either the master station or JP-8Z distribution unit using CAT-5e / CAT-6 cable.
Items Included
- Aiphone JP-4HD Hands-free Color Video Intercom Sub Master Station (White)
- 6-Pin Option Connector
- Limited 2-Year Warranty
Additional Resources
No additional resources available
Aiphone JP-4HD Specs
| Power Supply |
24 VDC (from power supply)
|
| Current Consumption |
200 mA
|
| Communication |
Simultaneous communication
|
| Hands-Free Options |
Auto-voice actuation
|
| Ambient Temperature |
32 to 104°F (0 to 40°C)
|
| Screen |
7" (177.8 mm) color LCD screen
|
| Mounting |
Wall-mount
|
| Electrical |
3-gang box
|
| Material |
Flame-resistant ABS resin
|
| Dimensions |
10.0 x 5.7 x 1.2" (255 x 145 x 30 mm)
|
| Weight |
Approximately 1.72 lb (0.78 kg)
|
| Package Weight |
2.65 lb
|
| Box Dimensions (LxWxH) |
10.6 x 8.1 x 3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 148176.0 |
| 3-5 | ₹ 146664.0 |
| 5-10 | ₹ 143640.0 |
| 10+ | ₹ 140616.0 |
Bulk discount will be automatically applied during checkout based on quantity.
