Description
Aiphone JO-DV Overview

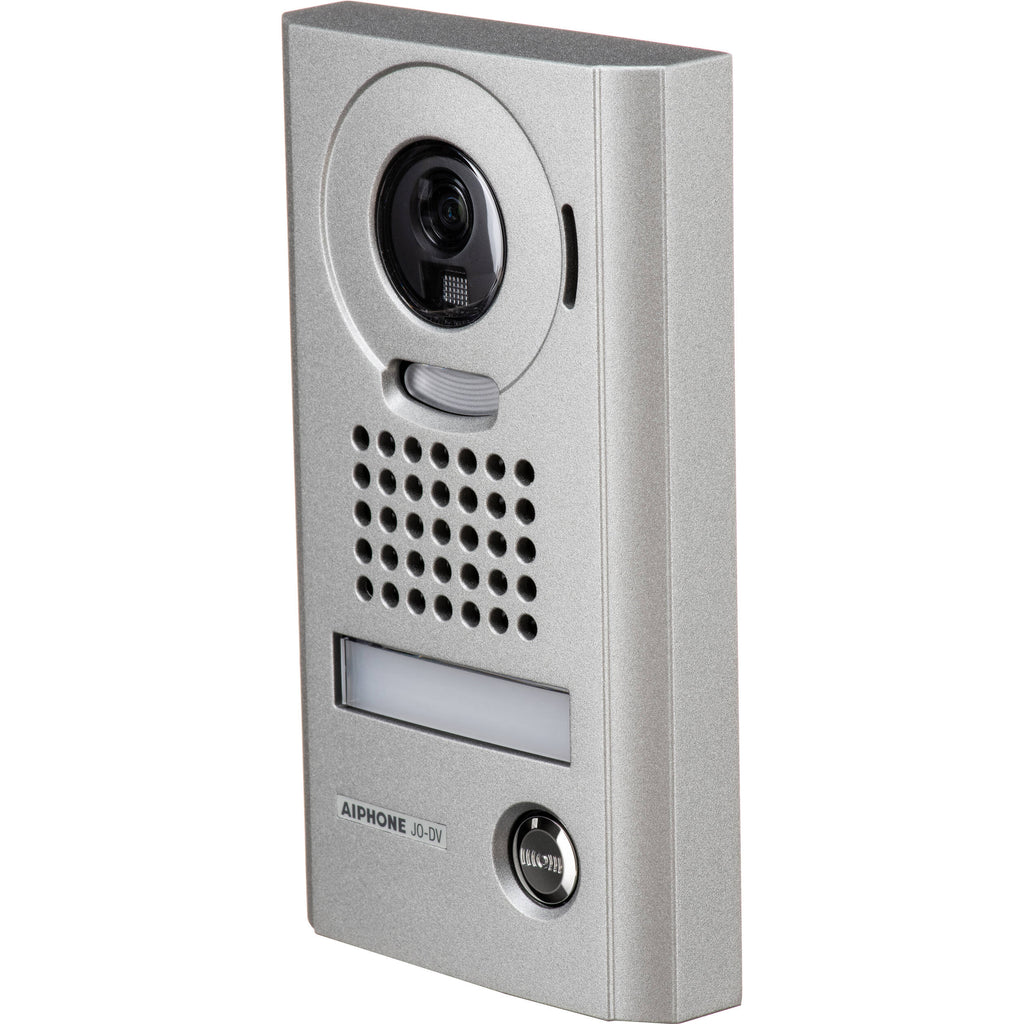

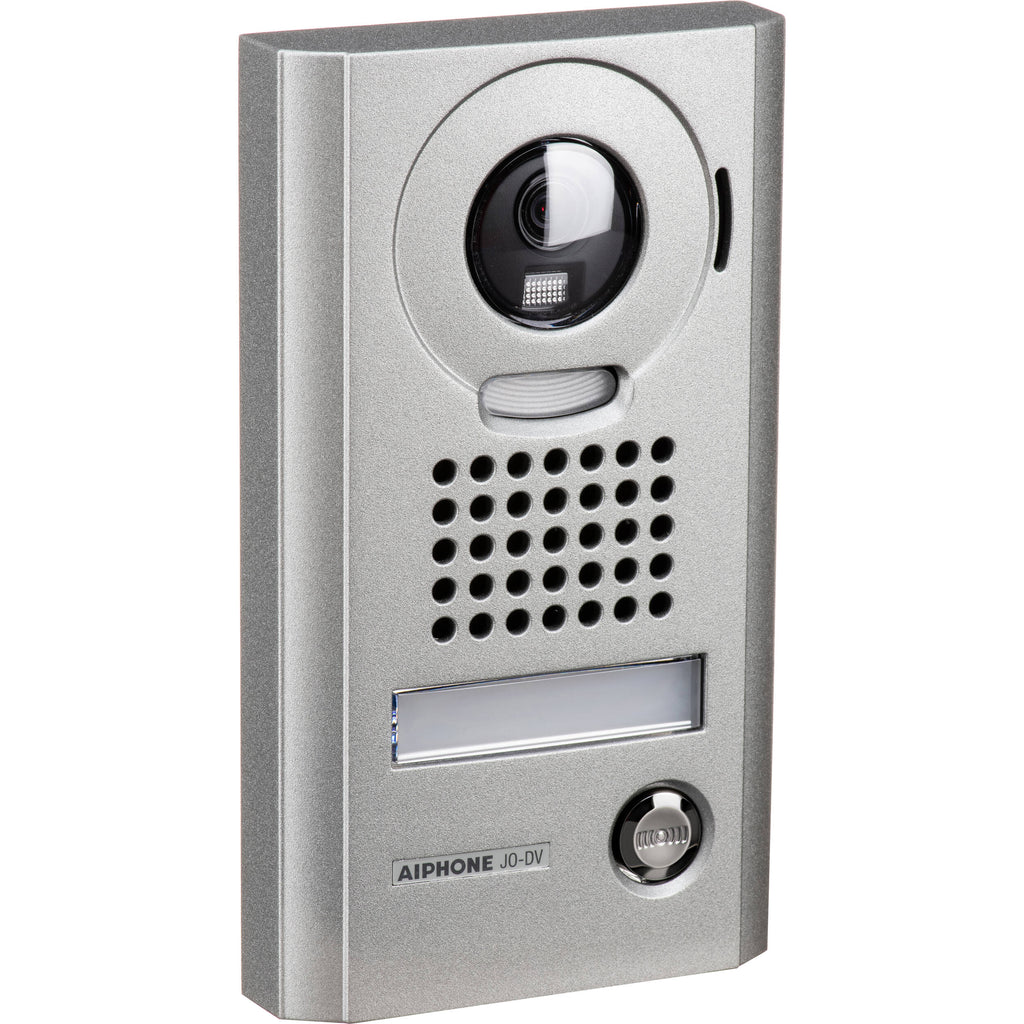

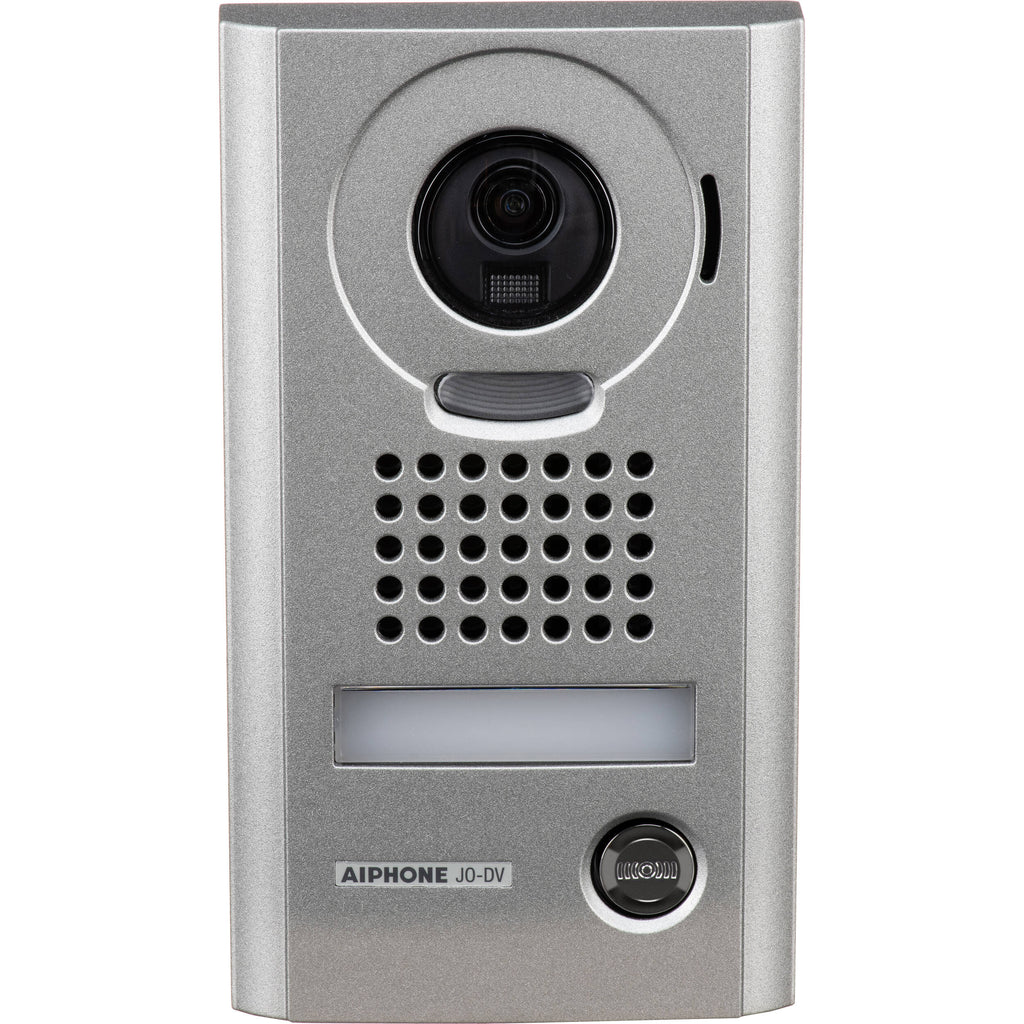

Designed for their JO Series and GT-MKB-N video guard station, this Aiphone JO-DV Video Door Station connects to the master/guard station, expansion station, or two door station adapter using an 18 AWG 2-conductor solid core cable. It features a fixed camera, along with white LED illumination for low-light conditions, a built-in speaker and microphone for two-way audio, and a call button to ring inside stations.
The JO-DV is IP54 rated for protection from water/dust and IK08 rated for protection from vandalism.
Designed to be used with JO Series
Also compatible with GT-MKB-N video guard station in the GT Series
330' wiring distance
2-conductor and PE insulation wiring (Aiphone wire #871802)
LED backlit nameplate
Wall mountable
UPC: 790143110390
In the Box
- Aiphone JO-DV Video Door Station for JO Series
- Limited 2-Year Manufacturer Warranty
Aiphone JO-DV Specs
General
| Compatibility |
Aiphone JO Series / GT Series GT-MKB-N Video Guard Station
|
| Camera |
Fixed Color Camera
|
| Sensor |
CMOS
|
| Minimum Illumination |
5 Lux
|
| Communication |
Handsfree
|
Power
| Power Source |
AC Input (Not Included)
|
Environmental
| Environmental Protection |
Dust-Resistant (IP54)
|
| IK Rating |
IK08
|
| Operating Temperature |
-40 to 140°F / -40 to 60°C
|
Physical
| Mounting |
1 x Surface, Wall
|
| Color |
Silver
|
| Material of Construction |
Aluminum
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
7 x 3.9 x 1.1" / 179 x 98 x 26.8 mm
|
| Weight |
1.4 lb / 650 g
|
Packaging Info
| Package Weight |
2.075 lb
|
| Box Dimensions (LxWxH) |
9.7 x 7.2 x 3.5"
|
