Description
Aiphone C-123L/A Overview

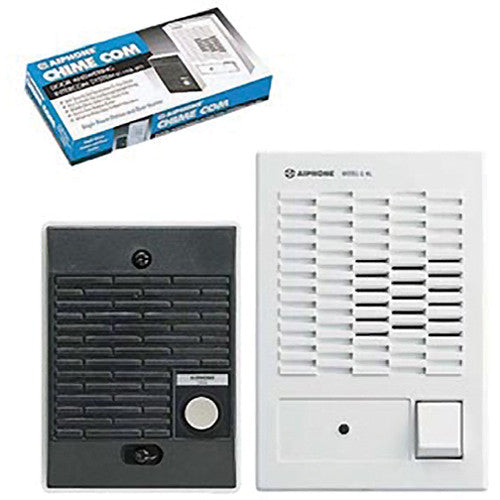

The C-123L/A ChimeCom Audio Door Answering System from Aiphone includes one C-ML/A Master Station and one C-D Door Station. The system provides audio communication between the two stations, as well as door-release activation through the door station. Push the talk button on the master station to communicate with another station, and simply release the button to listen to a reply. Easy-to-use hands-free communication on the door station allows you to answer a call without pushing any buttons. For further convenience, all communication will automatically shut off after 15 seconds of idleness. Additional master stations (available separately) can be added to the system for communication throughout your entire home or business, and any Aiphone LE or LS series device can be used as a substitute for the door station. Each device is powered by a 6VDC power supply or four C batteries (sold separately).
In the Box
- Aiphone C-123L/A ChimeCom Audio Door Answering System
- C-ML/A Master Station
- C-D Door Station
- Sponge for Conduit
- Packet of Screws
- Limited 2-Year Warranty
Aiphone C-123L/A Specs
| Power Source |
6 VDC, 80 mA
|
| Power Supply |
Aiphone SKK-620 power supply or 4 x SUM-2 C batteries (sold separately)
|
| Communication |
Door calls in with 2-tone chime, not adjustable, press TALK button to reply, release to listen, power automatically shuts off circuit
Press to talk at Master station Automatic shut off in 15 sec Output: 100 mW |
| Call Tones |
2-tone electronic chime, fixed volume
|
| Door Opening |
Contact Rating: 50 VAC @ 1 A
|
| Wiring |
Door to Master: 2-conductor, overall shield
Between Masters: 2-conductor, overall shield 2 wires parallel, non-polarized |
| Wiring |
Door to Farthest Master:
22AWG: 245.0' (74.6 m) 18AWG: 490.0' (149.3 m) 0.65 mm Ø: 246.0' (75.0 m) 1.0 mm Ø: 492.1' (150.0 m) |
| Wire Type |
Aiphone #822202 or Aiphone #821802
|
| Dimensions |
C-MLA/A: 7.5 x 5.1 x 1.7" (190.0 x 130.0 x 43.1 mm)
C-D: 4.7 x 3.5 x 1.1" (120.0 x 88.0 x 29.0 mm) |
| Weight |
C-MLA/A: 0.80 lb (0.37 kg) approximately
C-D: 0.3 lb (0.14 kg) approximately |
| Package Weight |
1.6 lb
|
| Box Dimensions (LxWxH) |
11.6 x 5.8 x 1.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 17047.1 |
| 3-5 | ₹ 16873.15 |
| 5-10 | ₹ 16525.25 |
| 10+ | ₹ 16177.35 |
Bulk discount will be automatically applied during checkout based on quantity.
