Description

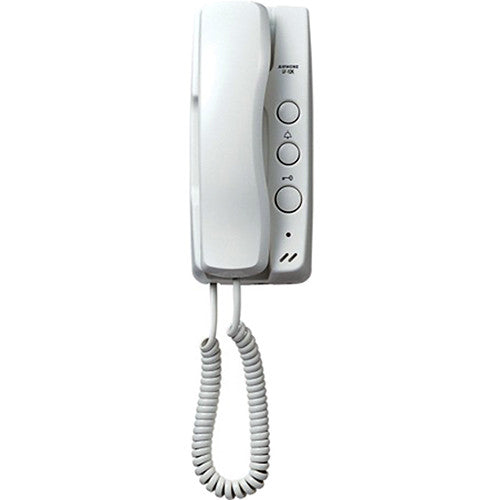

Aiphone GF-1DK Overview
The Audio Tenant Station from Aiphone is an audio only tenant station for the GF Series multi-unit entry system. When a visitor calls the tenant station rings, which is answered by picking up the handset. The GF-1DK can also call concierge or security guard stations, turning on an entryway light while speaking with a visitor, receiving an emergency tone from a panic call station, and releasing a door.
This tenant station is designed to be surface mounted. Up to two GF-1DK units can be used in the same tenant location. Communication is hands-free at the entrance station once a call has been accepted by a tenant at the handset.
Handset audio communication
Door release to the door where communication is established
Call to security guard or concierge station
Optional individual doorbell rings with unique tone
Optional activation of outside light while talking to entrance station (sold separately)
Optional connection of panic call station (GFKPS), alerting with tone and call to concierge (sold separately)
Call tone volume control
Simple two-conductor common bus wiring
Surface mounts to wall on 1-gang box or ring
ABS plastic construction
UPC: 790143527556
In the Box
- Aiphone Audio Tenant Station for GF Series Multi-Unit Entry System
- Limited 2-Year Warranty
Aiphone GF-1DK Specs
| Power Source |
Supplied by system
|
| Call Functions |
Varying ringtones from entrance panel, concierge, or doorbell
|
| Communication |
Handset
|
| Capacity |
2 tenant stations (max) per resident location (no communication between)
|
| Wiring |
2-conductor, common bus
|
| Wire |
Aiphone #87200250C, 2 conductor PE insulated, non-shielded, 11.05 pf/ft
|
| Wiring Distance |
980' / 298.7 m with 20 AWG (GF-BC to farthest tenant)
|
| Talk Path |
Single channel with privacy
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
7.88 x 3.5 x 2.5" / 200 x 89 x 63 mm
|
| Weight |
0.81 lb / 370 g
|
Packaging Info
| Package Weight |
0.9 lb
|
| Box Dimensions (LxWxH) |
9 x 4 x 2.5"
|
