Description
Aiphone 81221650C Overview

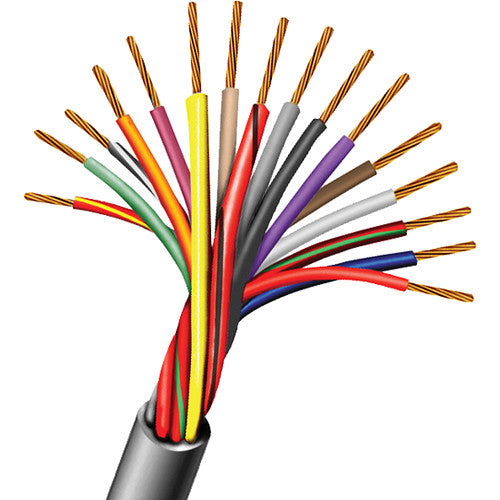

The 500-foot 812216 Sixteen-Conductor Wire from Aiphone is a 16-conductor, 22 AWG non-shielded bulk cable, and is technically matched for use with the company's intercom systems. Utilizing the cable ensures proper system performance.
Manufactured in accordance to UL standard 444, NEC listed Type CMR & UL standard 14, NEC listed type CL3R C(UL) 75°C Sunlight Resistant California State Fire Marshall Approved
Suggested working voltage: 300V
UPC: 788255221622
Items Included
- Aiphone 812216 Sixteen-Conductor Non-Shielded Wire - For Aiphone Intercom Systems (500')
- One (1) Year Limited Warranty
Additional Resources
No additional resources available
Aiphone 81221650C Specs
| Conductor |
22 AWG
7-strand Bare copper |
| Insulation |
Material: Color-coded polyvinylchloride
Wall Thickness: 0.007" |
| Assembly |
Lay Length: 4.0"
|
| Jacket |
Material: Polyvinylchloride
Wall Thickness: 0.020" Diameter: Nominal 0.242" Color: Gray Weight: 28.5 lb (12.9 kg) Ripcord: Yes |
| Electrical Characteristics |
Capacitance: 23.60 pF/ft
D.C. Resistance: 17.5 ? per 1000' (305 m) @ 68°F (20°C) |
Packaging Info
| Package Weight |
27.645 lb
|
| Box Dimensions (LxWxH) |
14.5 x 13.9 x 9.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 78600.9 |
| 3-5 | ₹ 77798.85 |
| 5-10 | ₹ 76194.75 |
| 10+ | ₹ 74590.65 |
Bulk discount will be automatically applied during checkout based on quantity.
