Description
Product Overview

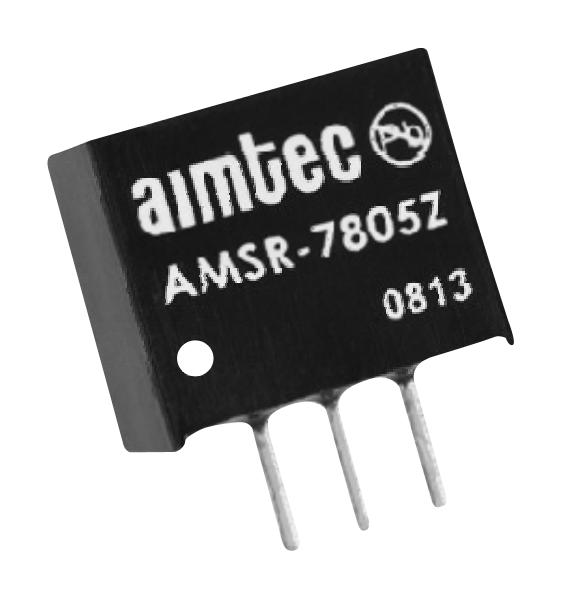

AMSR-7805Z is an AMSR-78Z series up to 7.5W DC-DC converter. It features 3 pin SIP package, non-isolated, low ripple and noise. It is pin compatible to multiple manufacturers. It includes short circuit protection.
- Input voltage range from 6.5 to 34V, output voltage is 5V
- Maximum output current is 500mA
- Minimum efficiency is 94%(Vin), 85%(max,Vin)
- Typical switching frequency at 100% load is 330KHz
- Non-conductive black plastic (UL94V-0 rated) case material
- Operating temperature range from -40°C to +85°C
- Dimensions (L x H x W) is 11.68 x 9.65 x 7.50mm
Product details
Other details
| Brand | AIMTEC |
| Part Number | AMSR-7805Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
