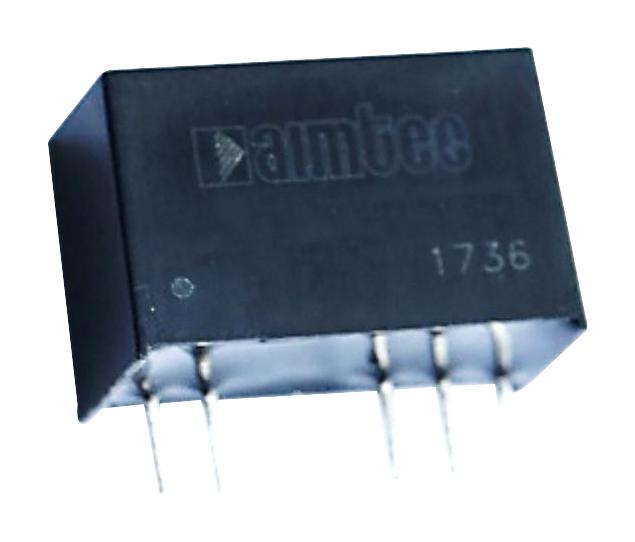

- AM3DG-NZ series 3W DC to DC converter
- Input voltage range from 22.8 to 25.2V, output voltage is +15V(14.25 to 15.75V), -8V(-6.4 to -9.6V)
- Maximum output current is +120 / -120mA, efficiency is 81%
- SIP7 Package
- Ultra-low isolation capacitance
- Non-conductive black plastic UL 94 V-0 case material
- Operating temperature range from -40°C to +105°C
- cULus certified
- Dimensions (L x W x H) is 19.50 x 9.80 x 12.50mm
Other details
| Brand |
AIMTEC |
| Part Number |
AM3DG-241508DH30-NZ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
