Description

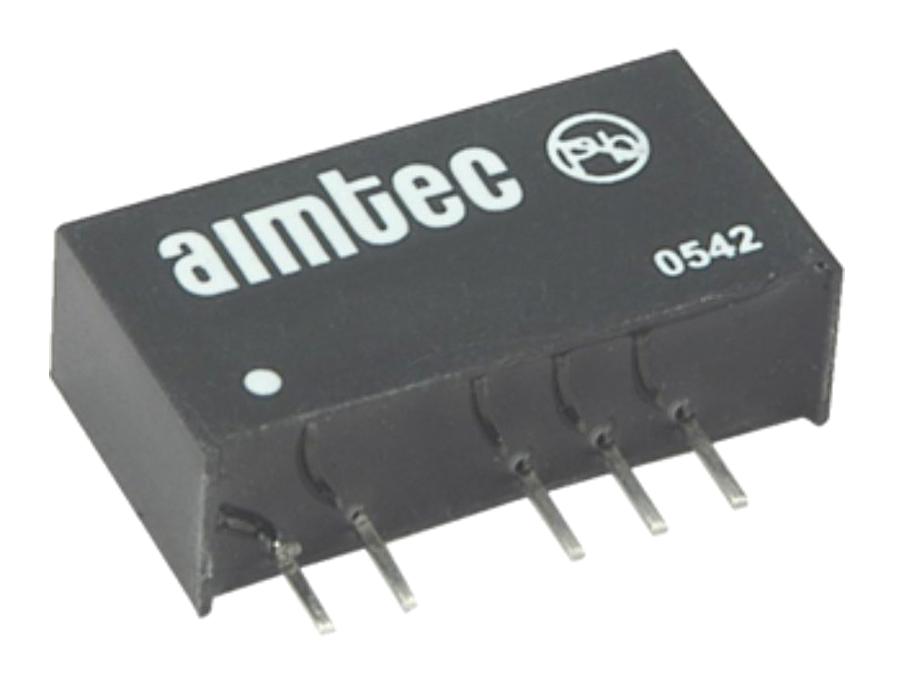

AM1D-1215SH60Z is an AM1D-Z series 1W DC/DC converter. It includes short circuit protection. Approved by cULus , EN/UL 60950-1, 62368-1.
- Input voltage range from 10.8 to 13.2V, output voltage is 15V
- Maximum output current is 67mA, isolation is 6000VDC
- Efficiency is 82%
- Low profile plastic package, 7 pin SIP package
- Pin compatible with multiple manufacturers
- Typical switching frequency is 80KHz(100% load, variable)
- Non-conductive black plastic UL 94 V-0 case material
- Operating a range from -40°C to +85°C, full load without derating
- Dimensions (L x W x H) is 19.50 x 6.00 x 10.00mm
Other details
| Brand | AIMTEC |
| Part Number | AM1D-1215SH60Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
