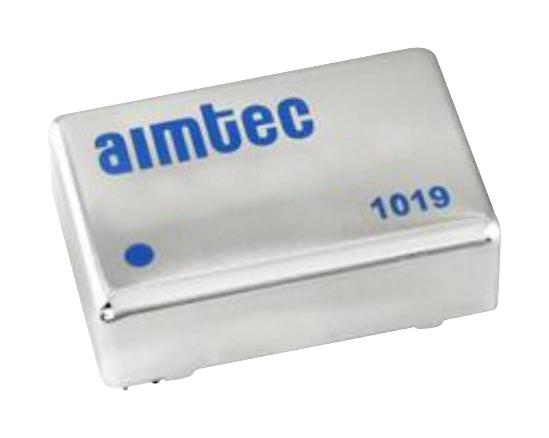

AM10TW-2405S-NZ is an AM10TW-NZ series 10W DC-DC converter. It features ultra-wide 4:1 input range, low power consumption 0.12W, remote on/off control. It includes continuous short circuit protection, over voltage & over current protection. Certified by Meet EN55032 class A with no external component needed, design to meet EN62368 and EN50155.
- Input voltage range from 9 to 36V, output voltage is 5VDC
- Maximum output current is 2000mA, isolation is 1500VDC
- Efficiency is 88%
- Typical switching frequency is 350KHz(100% load)
- Aluminium alloy case material
- Operating temperature range from -40°C to +85°C
- Dimensions (L x W x H) is 32.00 x 20.00 x 10.8mm
Other details
| Brand |
AIMTEC |
| Part Number |
AM10TW-2405S-NZ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
