Description

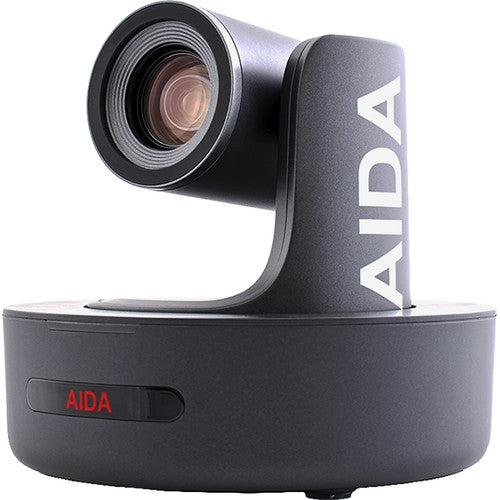

AIDA Imaging PTZ-NDI Overview
Add the Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom from AIDA to your NDI network, which offers four simultaneous video outputs as well as NDI|HX workflows over IP. While the SDI, HDMI, and USB outputs must be set at the same resolution up to 1080p60, the IP streaming port can output at a different resolution at frame rates from 1 to 60 fps. The camera features a 20x zoom, and pan, tilt, and zoom functions can be controlled via serial control or by using the included remote control.
The camera features RS-232 input/output for serial control as well as the VISCA control protocol over IP and streaming video via RTSP/RTMP protocols. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur.
Key Features
- Simultaneous SDI, HDMI, USB, and NDI|HX output
- Up to 1080p60 resolution video output
- 20x optical zoom
- H.264 / H.265 streaming
- RS-232 input/output
- VISCA-over-IP control protocol
- TCP/IP, RTSP/RTMP IP protocol
- 10 presets via included IR remote controller, 128 presets over serial control
- Motion-compensated temporal noise reduction filter allows for noise reduction without blur
- SMPTE 424M/292M standard
- Built-in OSD controls
- 4:2:2 (YCbCr) 10-bit color space
- White balance: auto, manual, auto tracking, one push, indoor, outdoor
- Auto shutter speed
In the Box
- AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom
- Remote Controller
- Mounting Bracket
- USB 3.0 Cable
- Power Adapter
- Power Cord
- Limited 2-Year Warranty
AIDA Imaging PTZ-NDI Specs
| Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Minimum Illumination | 0.1 Lux |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Optical Zoom Ratio | 20x |
| Field of View | Horizontal: 61° |
| Maximum Aperture | f/1.5 to 3 |
| Focus Control | Autofocus Manual Focus |
| Output Formats | SDI, HDMI, USB: 1920 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps RJ45: 1920 x 1080 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1280 x 720 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1024 x 576 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 620 x 360 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps |
| IP Streaming | RTMP, RTSP: 1080i, 1080p, 720p at 23.98p, 24p, 25p, 29.97p, 30p, 50i, 50p, 59.94i, 59.94p, 60p |
| Presets | 10 via IR 128 via RS-232, VISCA |
| Move Speed | Pan: 0 to 120°/sec Tilt: 0 to 80°/sec |
| Movement Range | Pan: 340° Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IR RS-232 VISCA |
| Video Output Connectors | 1 x BNC (3G-SDI / HD-SDI) Female 1 x HDMI Type A Female 1 x USB 3.0 Type-B (USB Video) Female 1 x RJ45 (HX / NDI) Female |
| Control Interface | 1 x 8-Pin Mini-DIN (RS-232, VISCA) Input 1 x 8-Pin Mini-DIN (RS-232, VISCA) Output 1 x RJ45 (LAN) Output |
| Power Connectors | 1 x Barrel / Coaxial (9 to 15 VDC) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 6.69 x 6.3 x 6.1" / 17 x 16 x 15.5 cm |
| Weight | 2.97 lb / 1.35 kg |
| Package Weight | 7.54 lb |
| Box Dimensions (LxWxH) | 11.7 x 10.8 x 10.5" |
