Description
AIDA Imaging PTZ-IP Overview

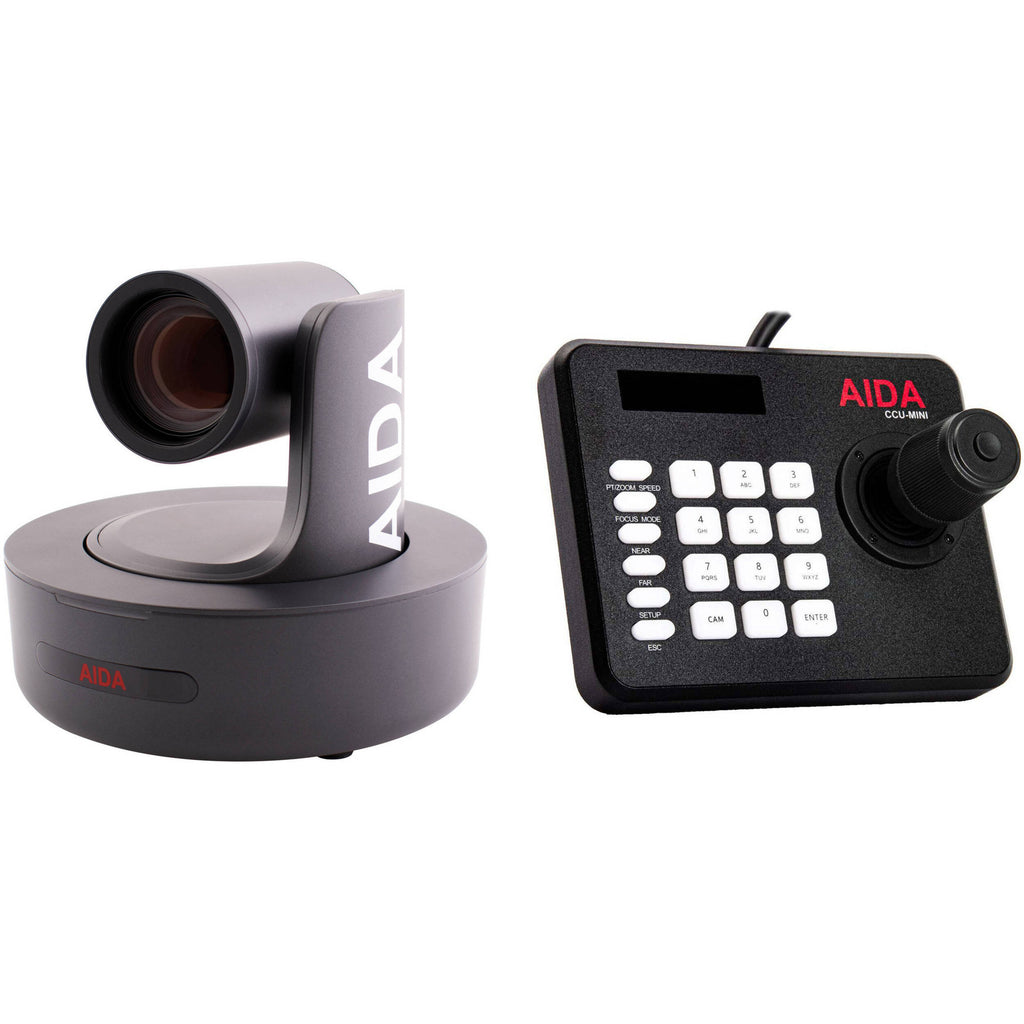

With the Full HD IP PTZ Camera with 12x Optical Zoom + Controller Bundle, AIDA Imaging offers a compelling package to jump-start your live video productions. Control the pan, tilt, and zoom remotely over serial or networked connections. This bundle includes the PTZ-X12-IP camera and the CCU-MINI camera controller, which allows you to control up to seven PTZ cameras.
Read more below about the items in this kit.

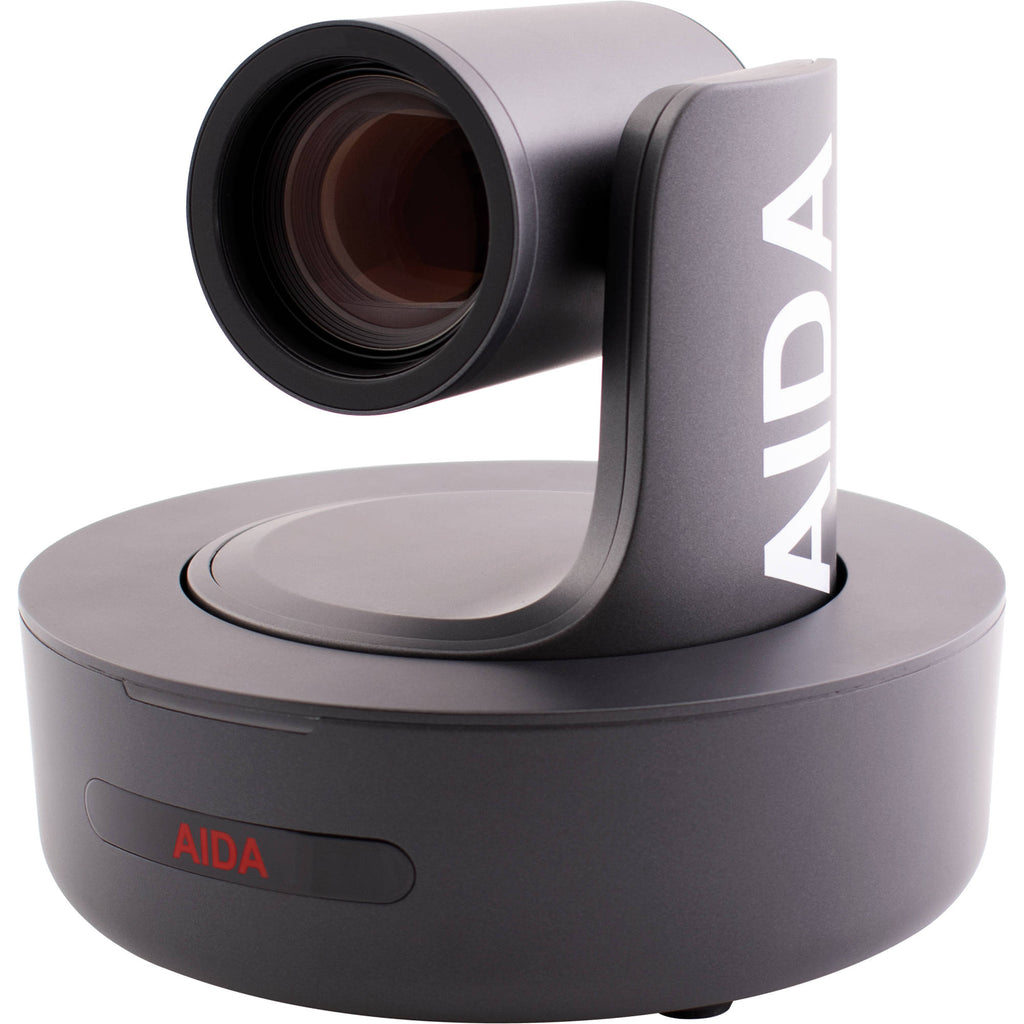

AIDA's 12x Full HD IP Broadcast PTZ Camera offers four simultaneous video outputs, all supporting up to 1080p60 resolution. While the SDI, HDMI, and USB outputs must be set at the same resolution, the IP streaming port can output at a different resolution at frame rates from 1 to 60 fps.
The camera features RS-232 input/output for serial control. It uses the VISCA control protocol and TCP/IP and RTSP/RTMP IP protocol. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur.
- Simultaneous SDI, HDMI, USB, and IP outputs
- Up to 1080p60 resolution video output
- H.264 / H.265 streaming
- RS-232 input/output
- VISCA control protocol
- TCP/IP, RTSP/RTMP IP protocol
- 10 presets via included IR remote controller, 128 presets over serial control
- Motion-compensated temporal noise reduction filter allows for noise reduction without blur
- SMPTE 424M/292M standard
- Built-in OSD controls
- 4:2:2 (YCbCr) 10-bit color space
- White Balance: auto, manual, auto tracking, one push, indoor, outdoor
- Auto shutter speed
Add this simplified Compact VISCA Serial & IP PTZ Camera Controller from AIDA Imaging to your PTZ camera production for fast camera selection and easy usage. Using the built-in breakout cable, the CCU-MINI can connect to your cameras using the VISCA serial protocol or control IP cameras over a LAN. The breakout cable features a 12 VDC female power input, an RJ45 Ethernet cable, an RS-485 terminal block serial cable, and an RJ45 RS-422 serial cable.
Using the 3-way joystick, you can control the pan, tilt, and zoom operations for up to seven cameras. You can select cameras using a single button press, and there are additional buttons for control of focus, pan/tilt speed, and setup operations. A large LCD shows you the status of your camera controls.
In the Box
- AIDA Imaging 12x Full HD IP Broadcast PTZ Camera
- Remote Controller
- Mounting Bracket
- USB 3.0 Cable
- Power Adapter
- Power Cord
- Limited 2-Year Manufacturer Warranty
- AIDA Imaging Compact VISCA Serial & IP PTZ Camera Controller
- Limited 2-Year Manufacturer Warranty
AIDA Imaging 12x Full HD IP Broadcast PTZ Camera Specs
| Image Sensor |
1/2.5"-Type CMOS
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
12x
|
| External Recording Modes |
SDI/BNC / HDMI / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps RJ45 1920 x 1080 1280 x 720 1024 x 576 620 x 360 |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, NDI, ONVIF, RTMP, RTSP, SRT
1920 x 1080 at 60p 1280 x 720 at 60p 1024 x 576 at 60p 620 x 360 at 60p |
| Supported Control Protocols |
IR
RS-232 VISCA |
| PoE Support |
PoE+ 802.3at
|
| Image Sensor |
1/2.5"-Type CMOS
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Minimum Illumination |
0.1 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors
|
| Focal Length |
3.92 to 47.32mm
|
| Optical Zoom Ratio |
12x
|
| Field of View |
79 to 6.8°
|
| Maximum Aperture |
f/1.8 to 2.8
|
| External Recording Modes |
SDI/BNC / HDMI / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps RJ45 1920 x 1080 1280 x 720 1024 x 576 620 x 360 |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, NDI, ONVIF, RTMP, RTSP, SRT
1920 x 1080 at 60p 1280 x 720 at 60p 1024 x 576 at 60p 620 x 360 at 60p |
| Presets |
10 via IR
128 via RS-232, VISCA |
| Move Speed |
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec |
| Movement Range |
Pan: 340°
Tilt: 120° (-30 to 90°) |
| Supported Control Protocols |
IR
RS-232 VISCA |
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 Output |
| Other I/O |
1x Mini-DIN 8-Pin (RS-232, VISCA) Input
1x Mini-DIN 8-Pin (RS-232, VISCA) Output |
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (9 to 15VDC) Input
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions (W x H x D) |
8.7 x 6.8 x 7.5" / 220 x 173 x 190 mm
|
| Weight |
2.97 lb / 1.35 kg
|
| Package Weight |
7.75 lb
|
| Box Dimensions (LxWxH) |
11.8 x 10.8 x 10.5"
|
AIDA Imaging Compact VISCA Serial & IP PTZ Camera Controller Specs
| Number of Supported Cameras |
7 Channels
|
| Control I/O |
1x RJ45 (RS-422)
1x RJ45 (IP Control) 1x Block (RS-485) |
| Controls |
12x Camera Selection Buttons
4x Multifunction Buttons 1x Focus Button 1x Camera Movement Speed Button 1x Menu Button 1x Pan/Tilt, Zoom Joystick |
| PoE Support |
Yes
|
| Security Lock Support |
No
|
| Number of Supported Cameras |
7 Channels
|
| Supported Control Protocols |
IP
RS-232 RS-422 VISCA |
| Control I/O |
1x RJ45 (RS-422)
1x RJ45 (IP Control) 1x Block (RS-485) |
| Controls |
12x Camera Selection Buttons
4x Multifunction Buttons 1x Focus Button 1x Camera Movement Speed Button 1x Menu Button 1x Pan/Tilt, Zoom Joystick |
| PoE Support |
Yes
|
| Power Connectors |
1x Barrel / Coaxial
|
| DC Input Power |
12 VDC
|
| Security Lock Support |
No
|
| Dimensions |
6.75 x 5.5 x 4" / 171.45 x 139.7 x 101.6 mm
|
| Weight |
2 lb / 907 g
|
| Package Weight |
3.12 lb
|
| Box Dimensions (LxWxH) |
9.4 x 8.3 x 6.5"
|
