Description

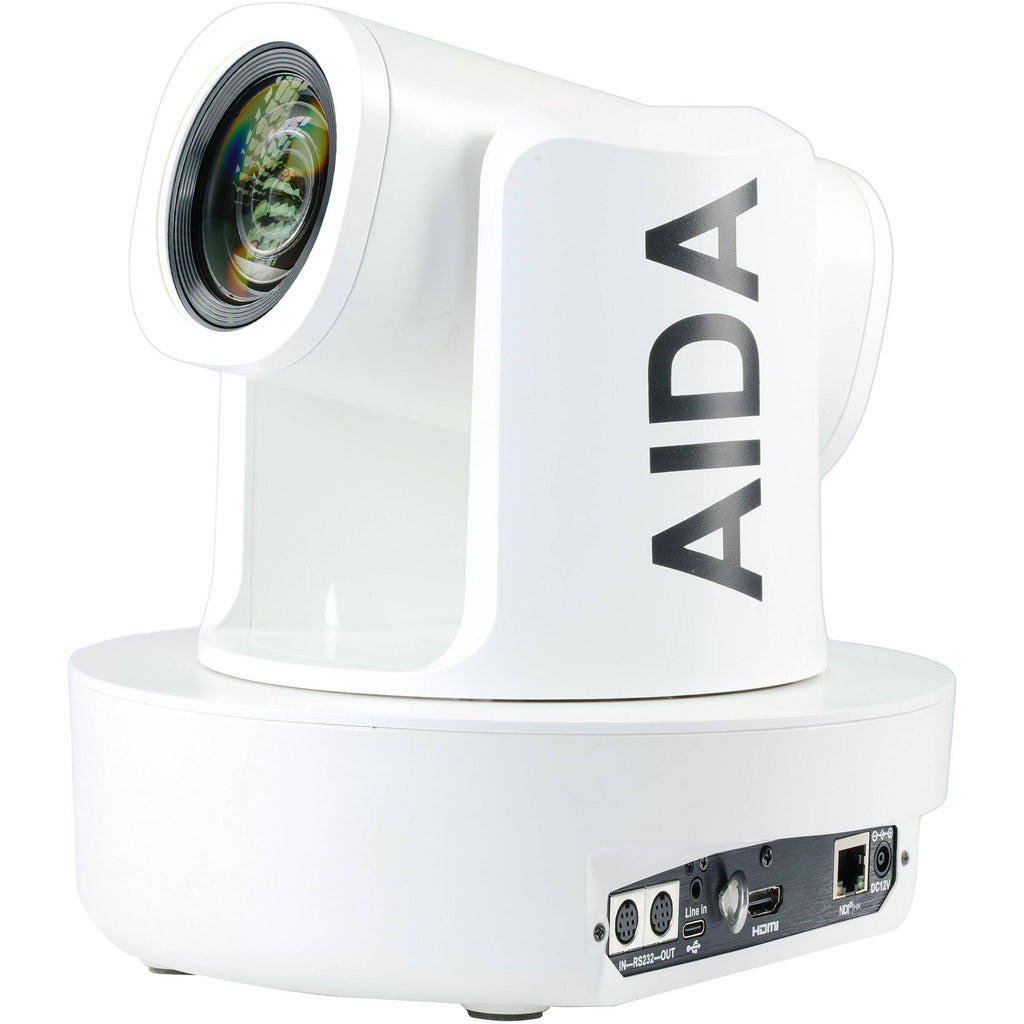

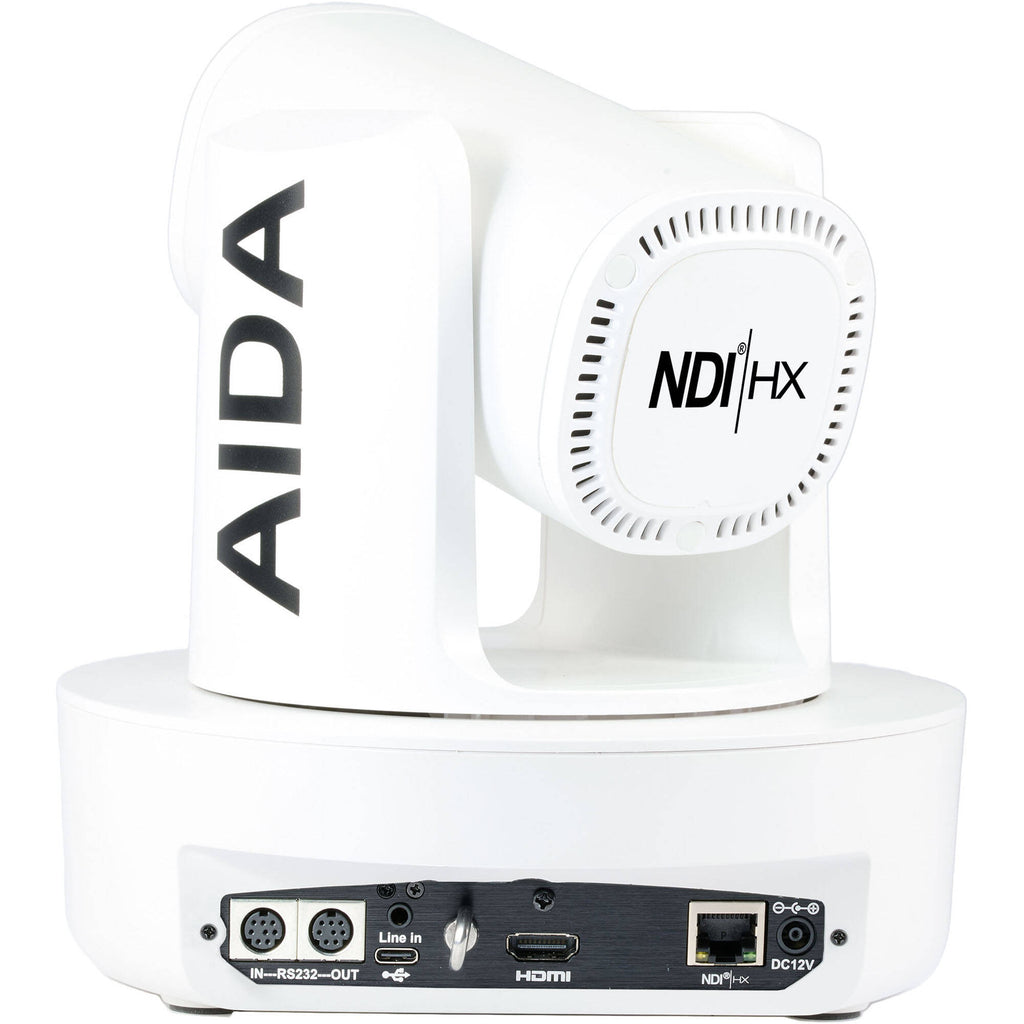

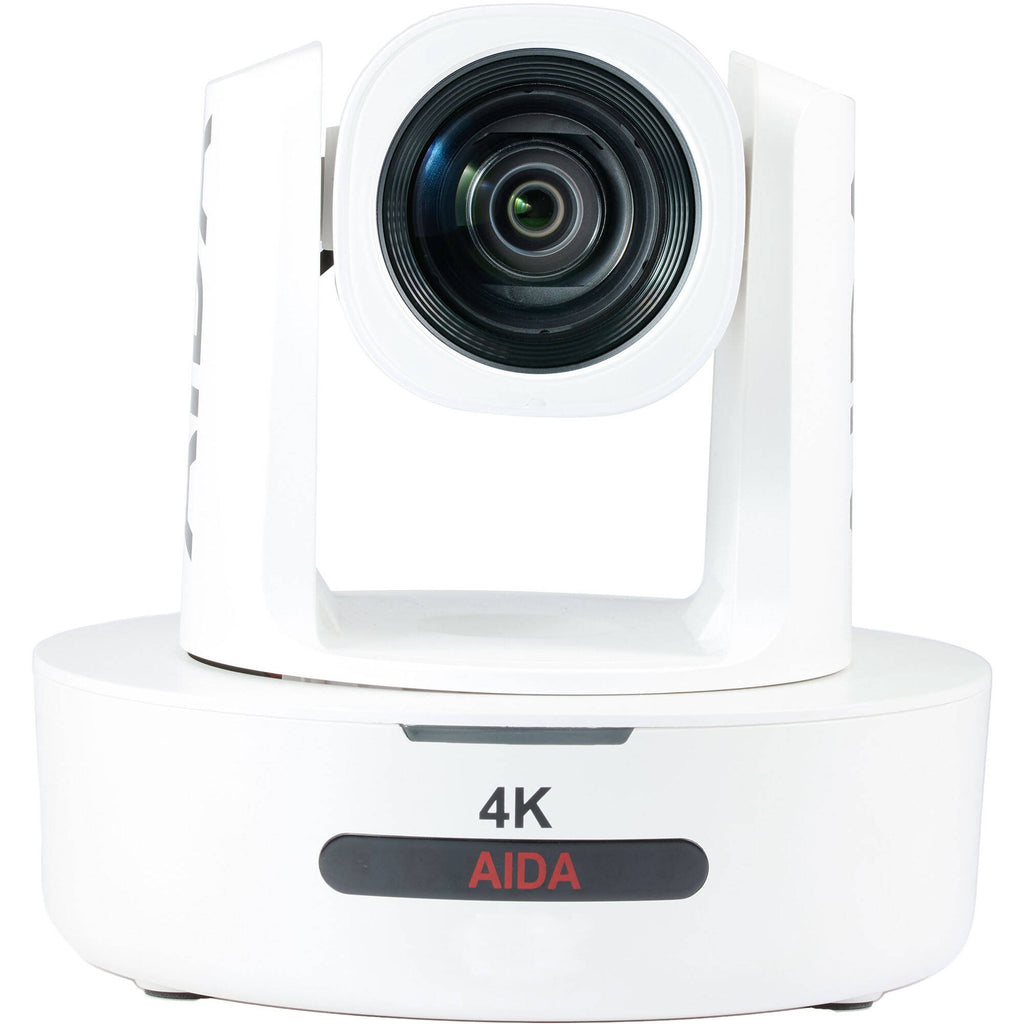

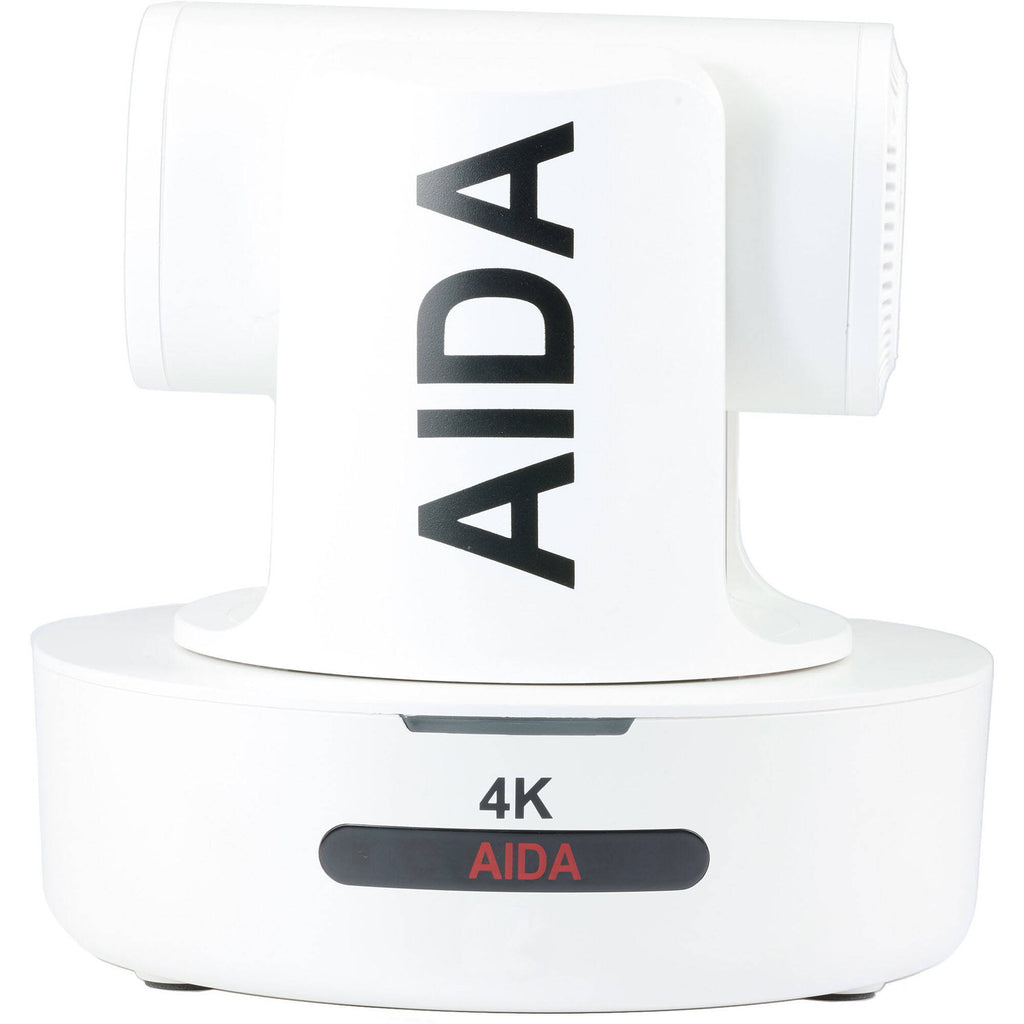

AIDA Imaging PTZ4K-NDI-X12 Overview
Add the white 4K NDI|HX IP/HDMI Conference PTZ Camera with 12x Optical Zoom from AIDA to your NDI network, which offers simultaneous video outputs as well as NDI|HX workflows over IP. You can output/stream up to UHD 4K60 via HDMI and IP/NDI|HX, and simultaneously output up to UHD 4K60 via HDMI and USB-C 3.0. The camera features a 12x optical zoom, and pan, tilt, and zoom functions can be controlled via IP, NDI, serial control, or by using the included remote control.
The camera features RS-232 input/output for serial control as well as the VISCA control protocol over IP and streaming video via RTSP/RTMP protocols. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur. The camera is powered via the included power adapter or by PoE+ on a supported network.
In the Box
- AIDA Imaging 4K NDI|HX IP/HDMI Conference PTZ Camera with 12x Optical Zoom (White)
- Remote Control
- Mounting Bracket
- Safety Harness
- Power Adapter
- Power Cable
- Limited 2-Year Manufacturer Warranty
AIDA Imaging PTZ4K-NDI-X12 Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel (3840 x 2160)
|
| Optical Zoom Ratio |
12x
|
| External Recording Modes |
4:2:2 10-Bit via HDMI / RJ45 / USB
3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
NDI|HX, RTMP, RTSP, SRT
1280 x 720 to 3840 x 2160 at 60p |
| Supported Control Protocols |
IR
NDI RS-232 VISCA |
| PoE Support |
PoE+ 802.3at
|
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel (3840 x 2160)
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Minimum Illumination |
0.1 Lux
|
| Focal Length |
3.4 to 40.3mm
|
| Optical Zoom Ratio |
12x
|
| Field of View |
Horizontal: 80.5 to 7.6°
|
| External Recording Modes |
4:2:2 10-Bit via HDMI / RJ45 / USB
3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/NDI/USB
|
| Audio Recording |
Yes
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
NDI|HX, RTMP, RTSP, SRT
1280 x 720 to 3840 x 2160 at 60p |
| Presets |
10 via IR
128 via RS-232, VISCA |
| Move Speed |
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec |
| Movement Range |
Pan: 340°
Tilt: 120° (-30 to 90°) |
| Supported Control Protocols |
IR
NDI RS-232 VISCA |
| Video I/O |
1x HDMI (Unspecified Signal) Output
1x RJ45 (Unspecified Signal) Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input on Camera Body
|
| Other I/O |
1x D-Sub 8-Pin (RS-232) Input
1x D-Sub 8-Pin (RS-232) Output |
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x DC (12VDC) Input
|
| Power Consumption |
Device: 12 to 15 VDC
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Mobile App Compatible |
No
|
| Dimensions (W x H x D) |
7.8 x 7.8 x 7.3" / 197 x 197 x 186 mm
|
| Weight |
4.6 lb / 2.1 kg
|
| Package Weight |
8.905 lb
|
| Box Dimensions (LxWxH) |
12.4 x 11.5 x 10.7"
|
