Description
AIDA Imaging PTZ4K Overview

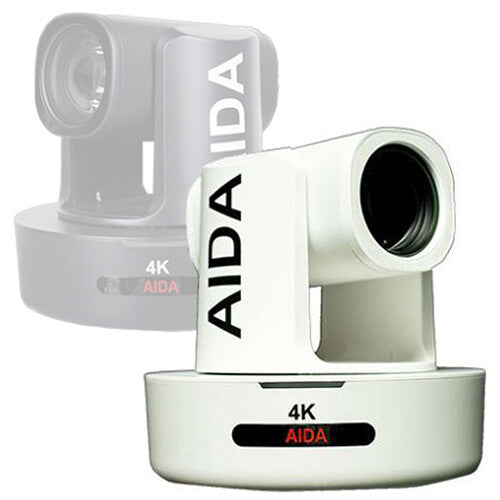

Add the white 4K NDI|HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom from AIDA to your NDI network, which offers simultaneous video outputs as well as NDI|HX workflows over IP. You can output/stream up to UHD 4K60 via HDMI and IP/NDI|HX, and simultaneously output up to UHD 4K60 via HDMI and USB-C 3.0. The camera features a 30x optical zoom, and pan, tilt, and zoom functions can be controlled via IP, NDI, serial control, or by using the included remote control.
The camera features RS-232 input/output for serial control as well as the VISCA control protocol over IP and streaming video via RTSP/RTMP protocols. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur. The camera is powered via the included power adapter or by PoE+ on a supported network.
In the Box
- AIDA Imaging 4K NDI HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom (White)
- Remote Control
- Mounting Bracket
- Safety Harness
- Power Adapter
- Power Cord
- Limited 2-Year Manufacturer Warranty
AIDA Imaging PTZ4K Specs
| Image Sensor | 1/1.8"-Type CMOS |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1 to 1/10,000 Seconds |
| Minimum Illumination | 0.1 Lux |
| Optical Zoom Ratio | 30x |
| Field of View | Horizontal: 214.6 to 6.9° |
| External Recording Modes | 4:2:2 10-Bit via HDMI / RJ45 / USB 3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Broadcast Output | NTSC/PAL |
| IP Streaming | NDI|HX, RTMP, RTSP, SRT 1280 x 720 to 3840 x 2160 at 60p |
| Presets | 10 via IR 128 via RS-232, VISCA |
| Move Speed | Pan: 0 to 120°/sec Tilt: 0 to 80°/sec |
| Movement Range | Pan: 340° Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IR NDI RS-232 VISCA |
| Video I/O | 1 x HDMI Output 1 x RJ45 Output 1 x USB-C Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input on Camera Body |
| Other I/O | 1 x D-Sub 8-Pin (RS-232) Input 1 x D-Sub 8-Pin (RS-232) Output |
| PoE Support | PoE+ 802.3at |
| Power I/O | 1 x DC (12VDC) Input |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Mobile App Compatible | No *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) | 7.8 x 7.8 x 7.3" / 197 x 197 x 186 mm |
| Weight | 4.6 lb / 2.1 kg |
| Package Weight | 8.79 lb |
| Box Dimensions (LxWxH) | 12.2 x 10.9 x 10.5" |
