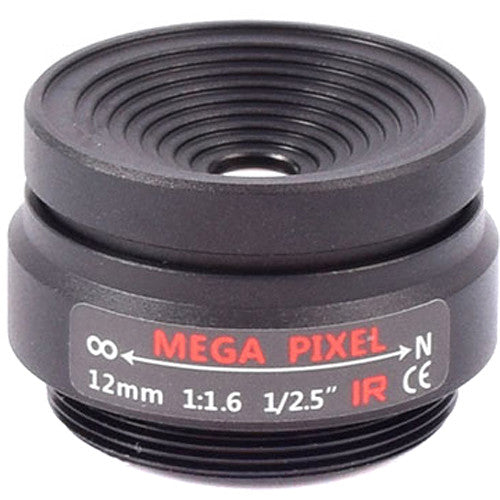

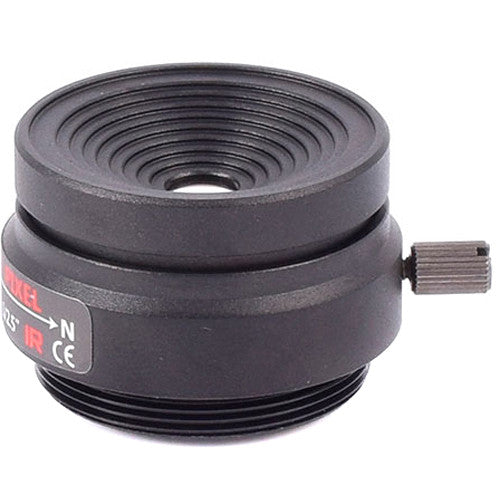

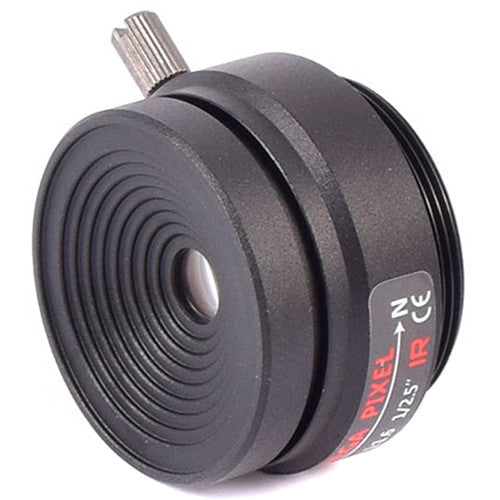

AIDA Imaging 12mm f/1.6 CS-Mount Lens

For 1/3"-Type Cameras

Fixed f/1.6 Aperture

Optimized for GEN Series Cameras

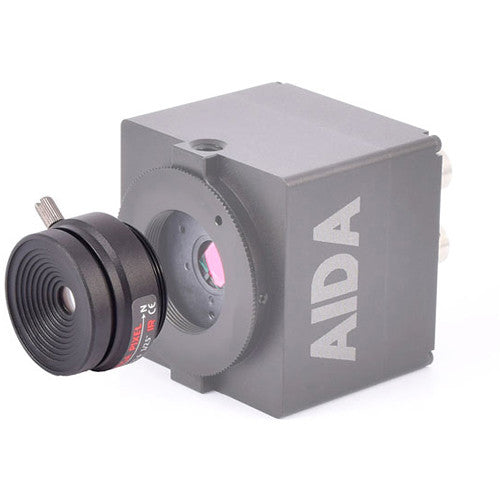

The AIDA Imaging 12mm f/1.6 CS Mount Lens is designed for cameras that use a 1/3"-type sensor and optimized for AIDA Imaging GEN series cameras that use a CS mount. On a camera that uses a 1/2.5"-type sensor, this lens will yield a 30.8&deg angle-of-view.

UPC: 710928970506

Focal Length	12mm
Aperture	f/1.6
Focus Adjustment	Manual
Iris	Fixed
Horizontal Field-of-View	1/2.5": 30.8° 1/2.8": 27° 1/3.2": 15.4°
Image Format	Max.: 1/2.5" sensor
Distortion	1.5% (with 1/2.5" sensor)
Mount Type	CS
Operating Temperature	-4 to 140°F / -20 to 60°C
Dimensions	Length: 0.81" / 21 mm Diameter: 1.2" / 30 mm
Weight	1 oz / 27g

Package Weight	0.1 lb
Box Dimensions (LxWxH)	2.1 x 2 x 2"
