Description

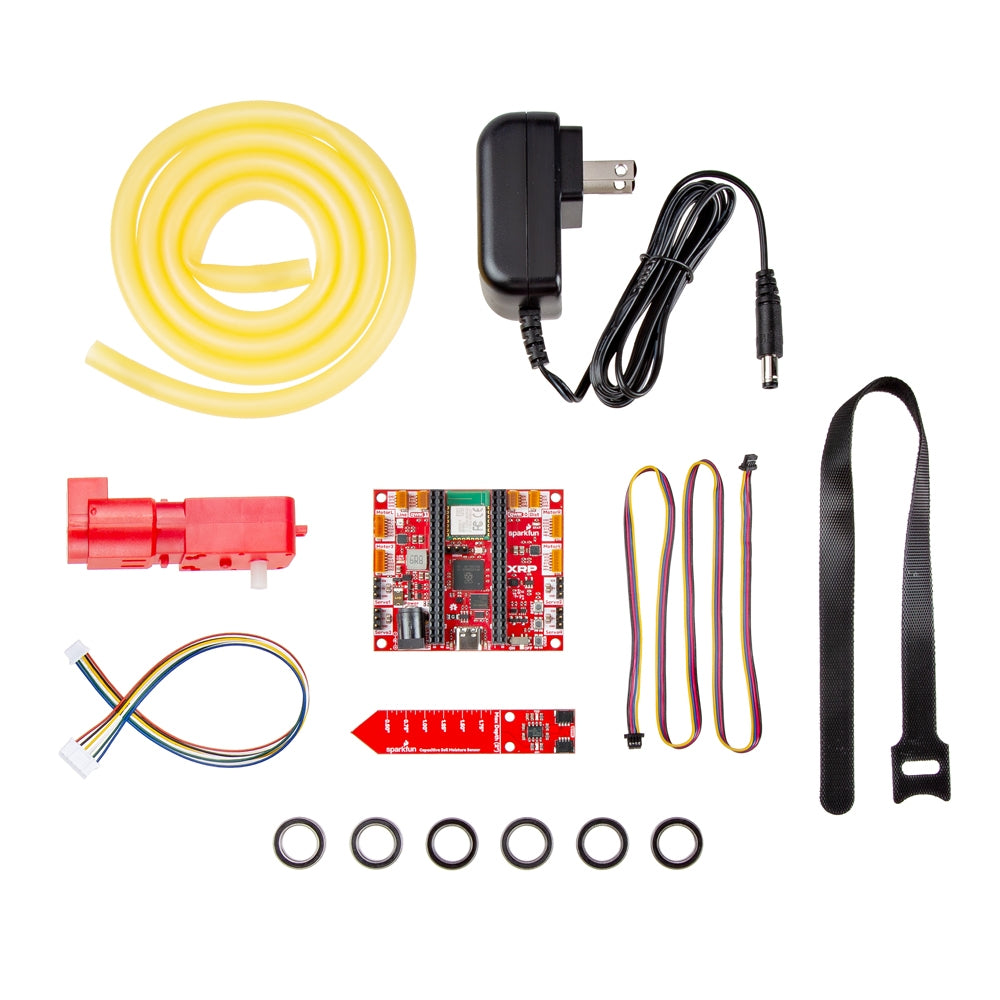

Turn your desk into a smart farm with this DIY open-source agricultural robotics kit designed for hands-on STEM education, encouraging customization and 3D printing of your unique frame.
Features & Specs
Raspberry Pi RP2350:
- Dual ARM CortexM33 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 24x PWM Channels
- 12x PIO State Machines
- 1 HSTX (High-speed transmit)
Raspberry Pi Radio Module 2:
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
Qwiic Soil Moisture Sensor:
- Capacitive sensing over I2C
- CY8CMBR3102 Controller
- Software Configurable I2C Address (Default: 0x37)
- On Board Ruler (Imperial and Metric units)
- 2x Qwiic Connectors
- Blue STAT LED (Connects to general-purpose output pin)
- Red Power LED

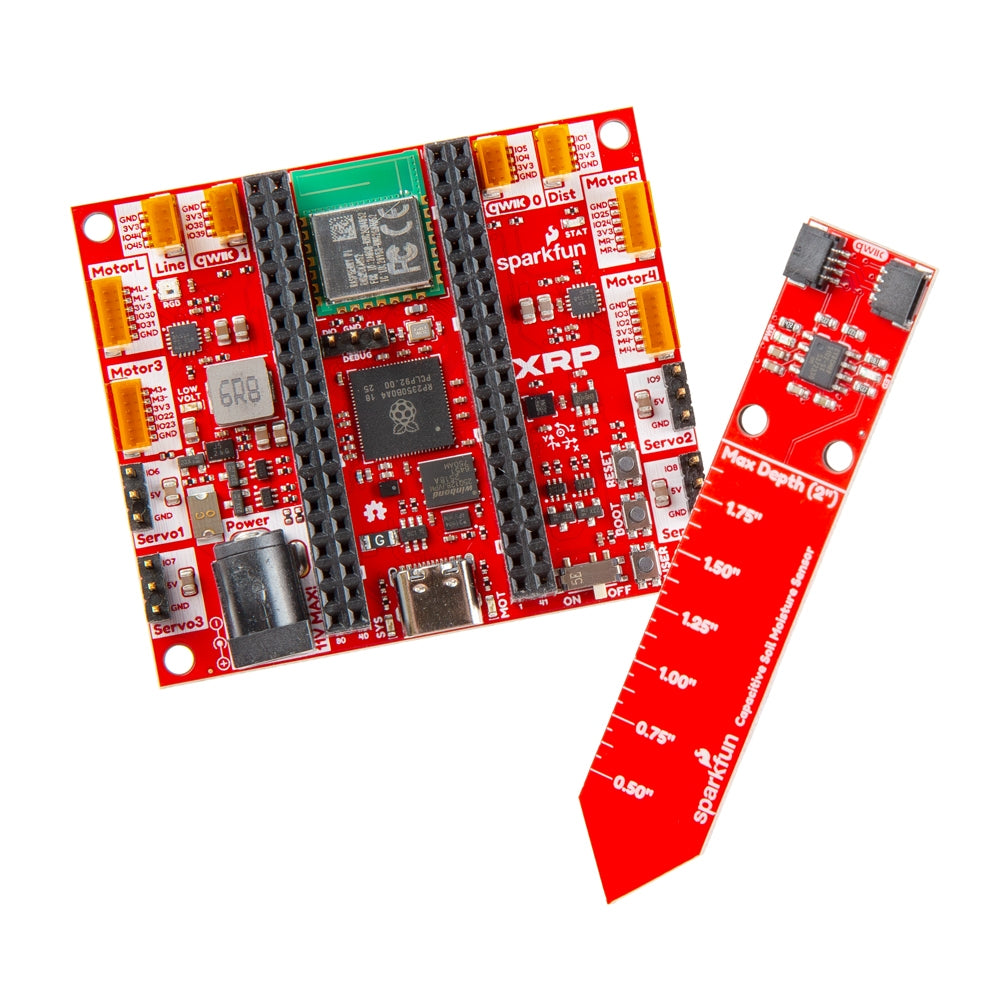

XRP Controller:
- Custom AgXRP Firmware
- LSM6DSO 6DoF IMU
- 2x DRV8411A H-Bridge Motor Drivers
- 4x DC Motor Connectors
- 4x Servo Motor Connectors
- 2x Vertical Qwiic Connectors
- 1x Line Follower Connector
- 1x Range Sensor Connector
- 2x 40-pin Expansion Headers
- 1x 3-pin Debug Header
- 16MB Flash
- 8MB PSRAM
- Power

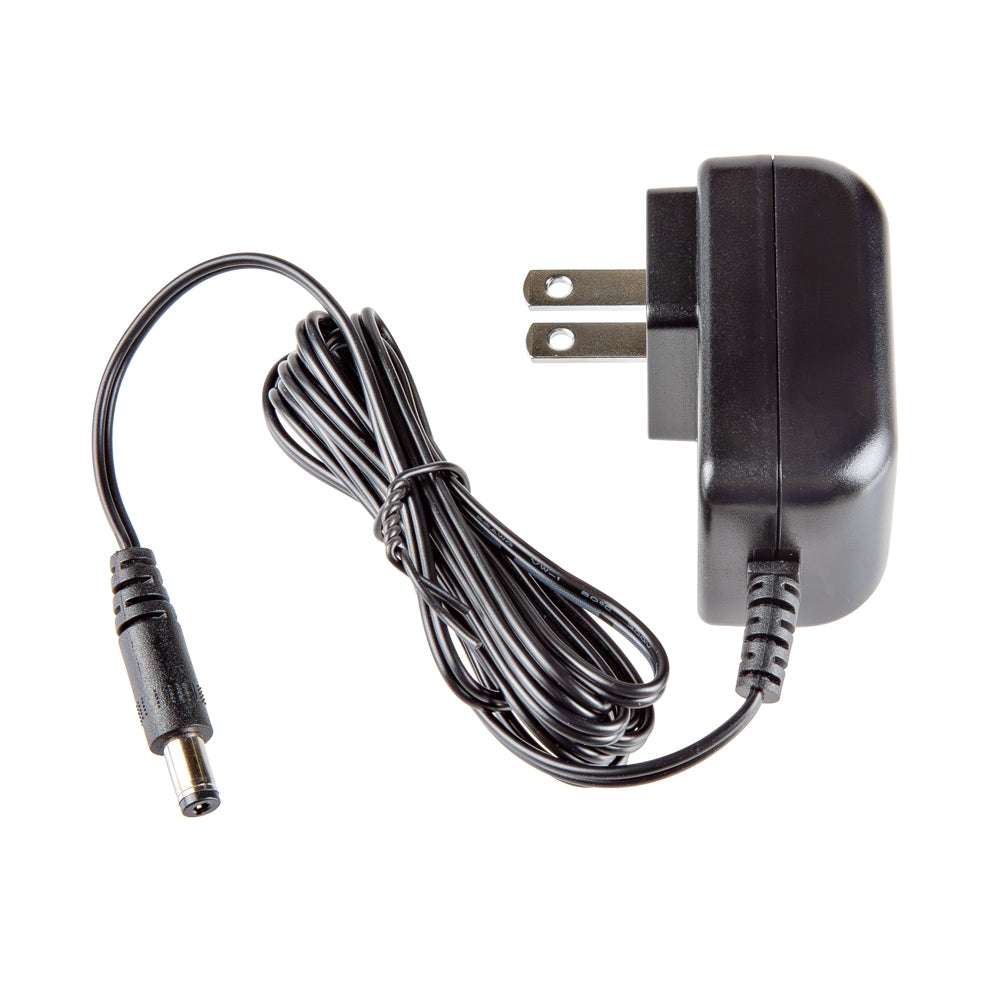

- Barrel Jack
- USB-C
- Power Switch
- Buttons
- RESET
- BOOT
- USER
- LEDs
-
SYS- Red 3.3V Power Status LED -
MOT- Red 5V Power Status LED -
LOW VOLT- Red Battery Voltage Indicator LED -
STAT- Blue LED connected to RM2 IO0 -
RGB- WS2812 RGB LED DataIn connects to RP2350 IO37
-
Features & Specs
Raspberry Pi RP2350:
- Dual ARM CortexM33 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 24x PWM Channels
- 12x PIO State Machines
- 1 HSTX (High-speed transmit)
Raspberry Pi Radio Module 2:
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
Qwiic Soil Moisture Sensor:
- Capacitive sensing over I2C
- CY8CMBR3102 Controller
- Software Configurable I2C Address (Default: 0x37)
- On Board Ruler (Imperial and Metric units)
- 2x Qwiic Connectors
- Blue STAT LED (Connects to general-purpose output pin)
- Red Power LED
XRP Controller:
- Custom AgXRP Firmware
- LSM6DSO 6DoF IMU
- 2x DRV8411A H-Bridge Motor Drivers
- 4x DC Motor Connectors
- 4x Servo Motor Connectors
- 2x Vertical Qwiic Connectors
- 1x Line Follower Connector
- 1x Range Sensor Connector
- 2x 40-pin Expansion Headers
- 1x 3-pin Debug Header
- 16MB Flash
- 8MB PSRAM
- Power
- Barrel Jack
- USB-C
- Power Switch
- Buttons
- RESET
- BOOT
- USER
- LEDs
-
SYS- Red 3.3V Power Status LED -
MOT- Red 5V Power Status LED -
LOW VOLT- Red Battery Voltage Indicator LED -
STAT- Blue LED connected to RM2 IO0 -
RGB- WS2812 RGB LED DataIn connects to RP2350 IO37
-
Documentation
- AgXRP Home Page
- AgXRP Setup & User Guide
- Instructional Videos:
- Experiential AgXRP Page

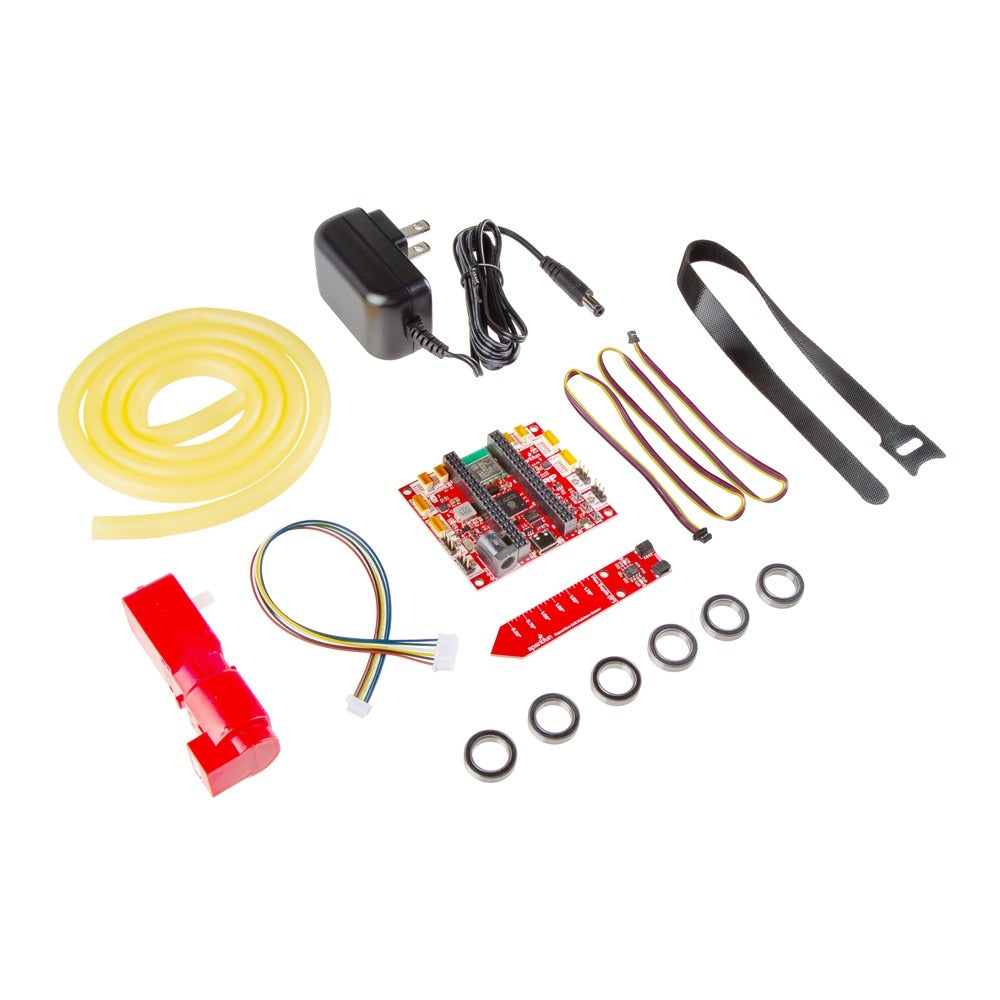

- Parts Checklist: AgXRP Starter Kit - DIY
- AgXRP Frame 3D Printing Files
- AgXRP Beta Feedback Survey
- XRP Forum
