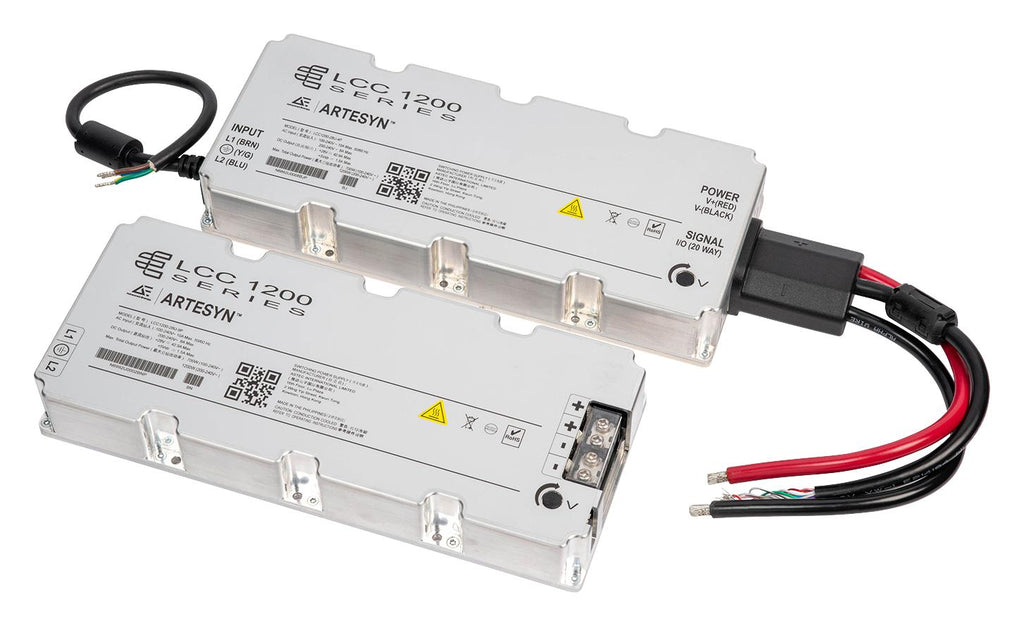

LCC1200-48U-4P is a LCC1200 series 1200W conduction cooled AC-DC power supply. It also provides a 5VDC standby output that can supply up to 1.5A. Rated at 1200W, this power supply incorporates a thermal baseplate and are capable of delivering full output power over a wide operating baseplate temperature range of -40 to 85°C. For maximum applications flexibility, the main output is adjustable. Safety approvals are UL + CSA: IEC 62368-1, Demko: IEC 62368-1, CB Scheme: IEC 60950-1, IEC 62368-1, CCC, UKCA Mark.
- Wide operating temperature range
- Adjustable output, remote output on/off
- AC-OK, DC-OK signals, 5V standby voltage
- Active current share, conduction-cooled/fanless
- I²C / PMBus, ITE Safety, active power factor correction, EMI Class B, EN61000 immunity
- Input voltage range from 90 to 264VAC (safety rating 100 to 240VAC), 127 to 374VDC
- 48V nominal output voltage, 42V to 57.6V trimming range
- Setpoint is ±0.5%, maximum Pout is 1200W, maximum Iout is 25A
- 1.0% output ripple, 2.0% line/load/temperature regulation, IP65 IP rating
- 10% to 95% humidity range
Product details
| Power Supply Applications:
ITE
|
| No. of Outputs:
1Outputs
|
| Output Power Max:
1.2kW
|
| Output Voltage - Output 1:
48V
|
| Output Current - Output 1:
25A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
90V AC to 264V AC
|
| Power Supply Output Type:
Fixed
|
| Product Range:
LCC1200 series
|
Other details
| Brand |
ADVANCED ENERGY |
| Part Number |
LCC1200-48U-4P |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
