Description

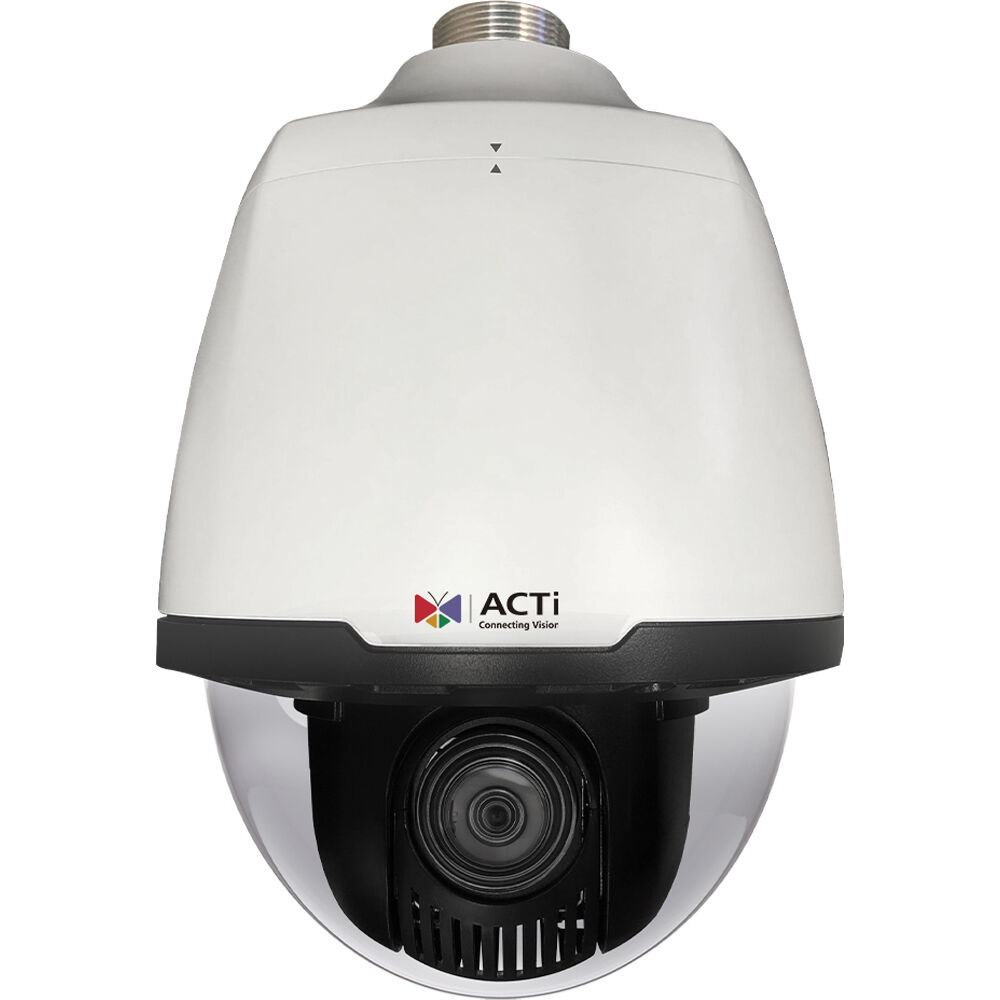

ACTi Z956 Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
4.5 to 148.5mm
|
| Field of View |
Horizontal: 51.4 to 2.5°
Vertical: 30.3 to 1.4° |
| Pan/Tilt |
Manual
Show More
Pan: 360° at 2 to 200°/s Tilt: 89° (1 to 90°) at 2 to 200°/s Programmed Pan: 360° at 400°/s Tilt: 89° (1 to 90°) at 240°/s |
| Video I/O |
1x BNC (Composite) Output
|
| Built-In Microphone |
No
|
| Power I/O |
1x DC (24VDC)
1x DC (24VAC) 1x RJ45 |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel
|
| IR Cut Filter |
Yes Mechanical
|
| Day/Night |
Yes
|
Exposure Control
| Shutter Speed |
1/100000 to 1 Second
|
| Signal-to-Noise Ratio |
75 dB
|
| Minimum Illumination |
0.003 Lux (Color)
0 Lux (Black and White) |
Lens
| Focal Length |
4.5 to 148.5mm
|
| Optical Zoom Ratio |
33x
|
| Max Digital Zoom |
16x
|
| Field of View |
Horizontal: 51.4 to 2.5°
Vertical: 30.3 to 1.4° |
| Maximum Aperture |
f/1.5 to 4
|
Video
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2688 x 1520 up to 30.00 fps |
| Multi-View Streaming |
Yes, 3 Streams
|
Control
| Pan/Tilt |
Manual
Pan: 360° at 2 to 200°/s Tilt: 89° (1 to 90°) at 2 to 200°/s Programmed Pan: 360° at 400°/s Tilt: 89° (1 to 90°) at 240°/s |
| Supported Control Protocols |
RS-485
|
Networking
| Security |
HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection
|
| Supported Protocols |
ARP, DHCP, DNS, FTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SSL/TLS, TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
|
| Video I/O |
1x BNC (Composite) Output
|
| Other I/O |
1x RJ45
1x 9-Pin (RS-485) 7x Block Input 2x Block Output |
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711
|
| Built-In Microphone |
No
|
System Integration
| Analytics |
Camera Sabotage/Tampering, Entering/Exiting, Face Detection, Intrusion Detection, People Counting, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x DC (24VDC)
1x DC (24VAC) 1x RJ45 |
| Power Consumption |
PoE: 16 W
|
Environmental
| Operating Conditions |
-40 to 158°F / -40 to 70°C up to 95% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP67)
|
General
| Certifications |
CE, FCC
|
| Dimensions (W x H x D) |
8.6 x 11.7 x 8.6" / 218 x 297 x 218 mm
|
| Weight |
9.0 lb / 4070 g (Body Only)
|
Additional Resources
No additional resources available
