Description
ACTi Z54 Overview

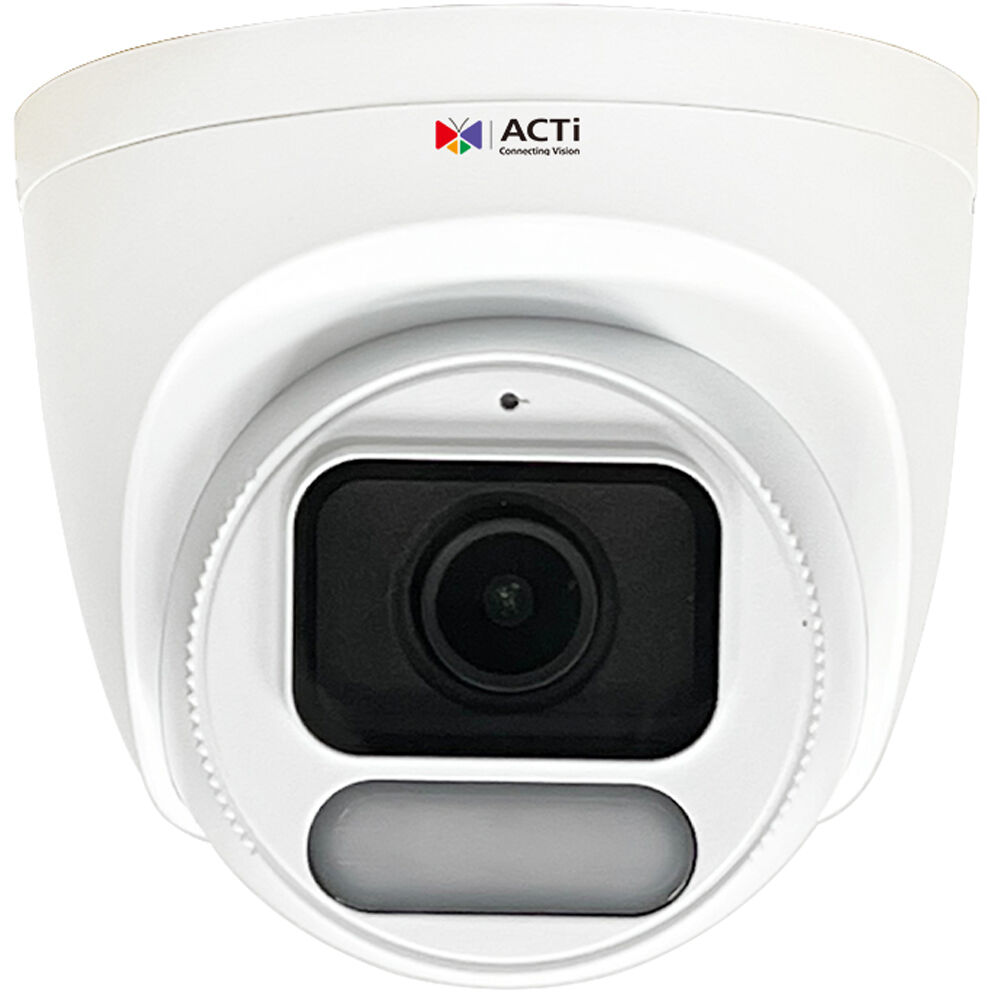

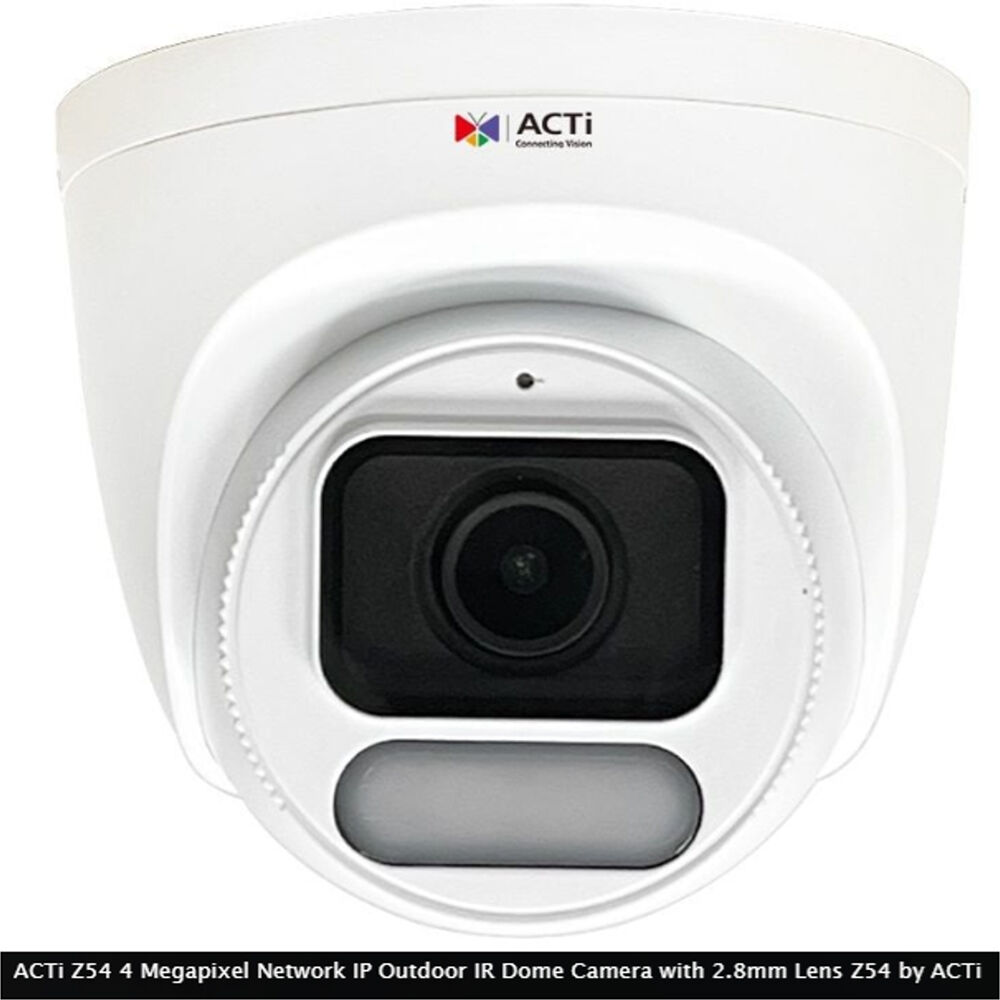

Securely monitor your surroundings with the Z54 ColorGuard 4MP Outdoor Network Turret Camera from ACTi. This unit uses a 1/1.8" progressive scan CMOS image sensor to capture 2688 x 1520 resolution video at 25 fps. White LED illumination provides up to 98' of visibility in low-light conditions. The camera's 2.8mm fixed lens delivers a 110.4? horizontal angle of view. A built-in microphone enables the camera to pick up audio. Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure that is suitable for safe outdoor use.
- Day and night switching
- Simultaneous dual streaming
- Flip, mirror, and rotation (corridor mode, ?90?, 180?) image orientation
- Built-in analytics such as smart motion detection, smart intrusion protection, people detection, vehicle detection, tampering detection, people line crossing detection, vehicle line crossing detection, and intrusion detection (forbidden area detection)
- Deep Learning AI 1.0
- Event triggers: video motion detection, tampering detection, and sound detection
- Image enhancements: white balance, backlight/highlight compensation, and defogging
- Text overlay, 2D-DNR/3D-DNR, 120 dB wide dynamic range, and privacy masking for four configurable regions
- Compatible with Internet Explorer 11, Chrome, Edge, and Firefox
- 4kV surge protection
Items Included
- ACTi Z54 ColorGuard 4MP Outdoor Network Turret Camera
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
ACTi Z54 Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 110.4?
Vertical: 60.5? |
| Built-In Microphone |
Yes
|
| Power I/O |
1x RJ45 (12VDC)
|
| Number of Lenses |
1
|
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| Shutter Speed |
1/100000 to 1 Second
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
75 dB
|
| Minimum Illumination |
0.0003 Lux (Color)
|
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 110.4?
Vertical: 60.5? |
| Maximum Aperture |
f/1
|
| Supported Protocols |
Video Streaming Protocol
FTP/ICMP/SMTP/SNMP v1/v2c/v3 (MIB-II)/ONVIF Profile T/ARP/HTTP/PPPoE/SSL/TLS/DDNS/NTP/IGMP/DNS/UDP/QoS Layer 3 DiffServ/DHCP/TCP/ONVIF Profile G/RTMP/IPv4/v6/RTP/UPnP/RTCP/RTSP/ONVIF Profile S |
| Max IP Streaming |
H.264, H.264+, H.265, H.265+, MJPEG via RJ45
2688 x 1520 up to 25 fps 2304 x 1296 up to 30.00 fps |
| Multi-View Streaming |
Yes: 2 Streams
|
| Camera Angle Adjustment |
Horizontal: 0 to 360?
Vertical: 0 to 75? Rotation: 0 to 360? |
| Security |
HTTPS, IP Address Filtering, Password Protection
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
G.711
|
| Built-In Microphone |
Yes
|
| Analytics |
Camera Sabotage/Tampering, Intrusion Detection, Motion Detection, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
|
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45 (12VDC)
|
| Power Consumption |
PoE: 2.8 W
|
| Operating Conditions |
-22 to 140?F / -30 to 60?C up to 95% Humidity
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP67)
|
| Certifications |
CE, FCC, UL
|
| Illumination |
White LEDs up to 98.4' / 30 m
|
| Dimensions (W x H x D) |
4.6 x 4.2 x 4.6" / 118 x 106 x 118 mm
|
| Weight |
1.1 lb / 480 g (Body Only)
|
