Description
ACTi YVR-121 Overview

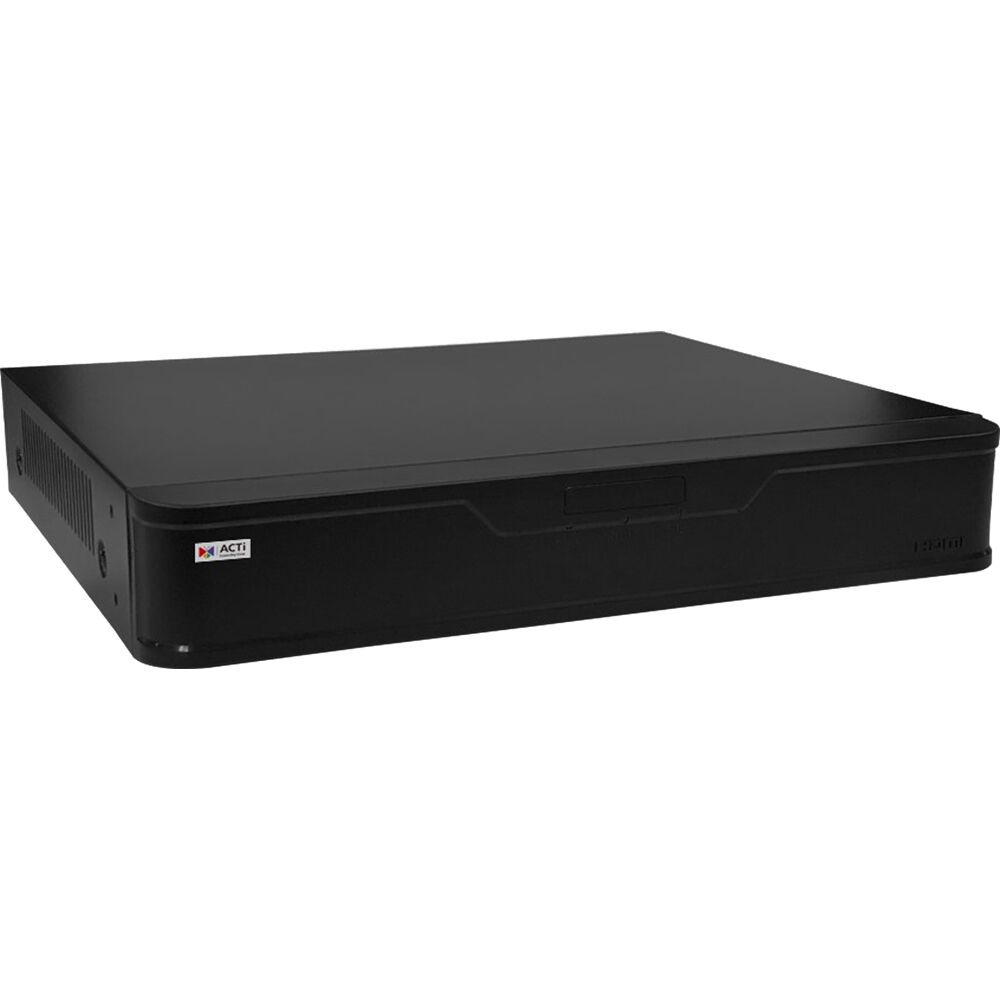

Record from and manage up to 12 cameras with the YVR-121 12-Channel 5MP Mini Hybrid DVR (No HDD) from ACTi at resolutions up to 5MP for eight analog channels and four IP channels (up to eight channels if no analog cameras are connected). HD-TVI, HD-CVI, AHD, or CVBS signal inputs are supported. This recorder is equipped with a SATA port that supports an HDD up to 20TB (HDD available separately). H.265 and H.264 video codecs keep file sizes manageable while maintaining the best quality possible.
This recorder supports two-way audio. HDMI and VGA ports enable video output to an external monitor at up to 1080p resolution.
Embedded Linux OS
SATA port for up to 20TB of storage
Complies with ONVIF profile S for interoperability with IP cameras
Items Included
- ACTi YVR-121 12-Channel 5MP Mini Hybrid DVR (No HDD)
- USB Mouse
- Power Adapter
- Limited 2-Year Manufacturer Warranty
Not Included
- Essential Internal Hard Drives
Additional Resources
No additional resources available
ACTi YVR-121 Specs
Key Specs
| Number of Channels |
12
|
| Recording Resolution |
5 MP at 12 fps
4 MP at 15 fps 1080p, 720p at 30 fps |
| IP Camera Support |
4
|
| 2-Way Audio |
Yes
|
| Audio/Video I/O |
AHD, CVBS, HD-CVI, HD-TVI: 8 x BNC Input
1 x RCA Audio Input 1 x RCA Audio Output 1 x HDMI 1 x VGA |
| Communication I/O |
1x RJ45 10/100 Mb/s Ethernet
2x USB-A 2.0 |
| Audio I/O |
1x Input
1x Output |
| Supported Video Codecs |
H.264, H.265
|
| Installed Drive |
No
|
General
| Signal |
AHD, Analog, HD-CVI, HD-TVI, IP
|
| Number of Channels |
12
|
| Playback Resolution |
HDMI, VGA:
1080p at 60 Hz |
| Recording Resolution |
5 MP at 12 fps
4 MP at 15 fps 1080p, 720p at 30 fps |
| PTZ Support |
Yes
|
| IP Camera Support |
4
|
| 2-Way Audio |
Yes
|
Connectivity
| Audio/Video I/O |
AHD, CVBS, HD-CVI, HD-TVI: 8 x BNC Input
1 x RCA Audio Input 1 x RCA Audio Output 1 x HDMI 1 x VGA |
| Communication I/O |
1x RJ45 10/100 Mb/s Ethernet
2x USB-A 2.0 |
| Audio I/O |
1x Input
1x Output |
| System Connection |
1x SATA
|
| Wi-Fi |
No
|
| Remote Connections |
128
|
| Network Protocols |
DDNS, DHCP, DNS, HTTP, HTTPS, IP, ONVIF, SMTP, TCP, UPnP
|
| Network Bandwidth |
64 Mb/s
|
| Max Frame Rate |
30 fps (1080p)
|
Compatibility
| Supported Video Codecs |
H.264, H.265
|
| Supported Audio Codecs |
G.711U
|
System
| Installed Drive |
No
|
| Max Capacity Supported |
20 TB (Total)
|
| OS Compatibility |
Linux
|
Notifications
| Event Trigger |
Disk Failure, Disk Full, Full Storage, Motion, Network, Network Loss
|
Electrical
| Input Power |
12 VDC
|
Physical
| Certifications |
CE, FCC, BSMI, UL
|
| Operating Conditions |
14 to 131°F / -10 to 55°C at 10 to 90% Humidity
|
| Built-In Display |
No
|
| Dimensions (W x D x H) |
10.2 x 8.9 x 1.9" / 260.0 x 226.0 x 47.0 mm
|
| Weight |
2.4 lb / 1100 g
|
